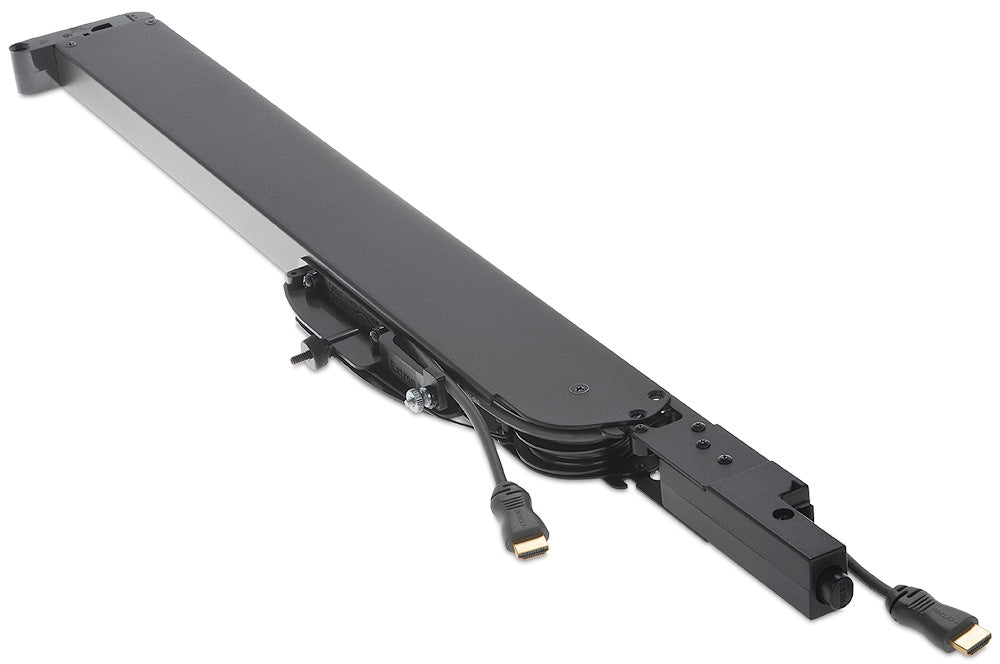

Extron Retractor Series/2 XL Mini DisplayPort-HDMI (part number 70-1066-19) — the extended-length Mini DisplayPort to HDMI retractor from the Series/2 XL generation. Extron has retired this part number; the current 4K equivalent is 70-1066-44.

Extron prints this model with the Series/2 designation, which distinguishes the older XL cable modules from the current Retractor XL naming. Mechanically it is the tall XL housing carrying a single continuous Mini DisplayPort to HDMI cable with 5 feet (152 cm) of travel. The user pulls the connector to the length the seat needs, the mechanism holds it, and the release button winds it back at a speed the installer configured.

Key Capabilities

• Extended travel of up to 5 feet (152 cm) for wide tables and tiered seating.
• Mini DisplayPort to HDMI conversion carried inside the cable, so no adapter sits loose.

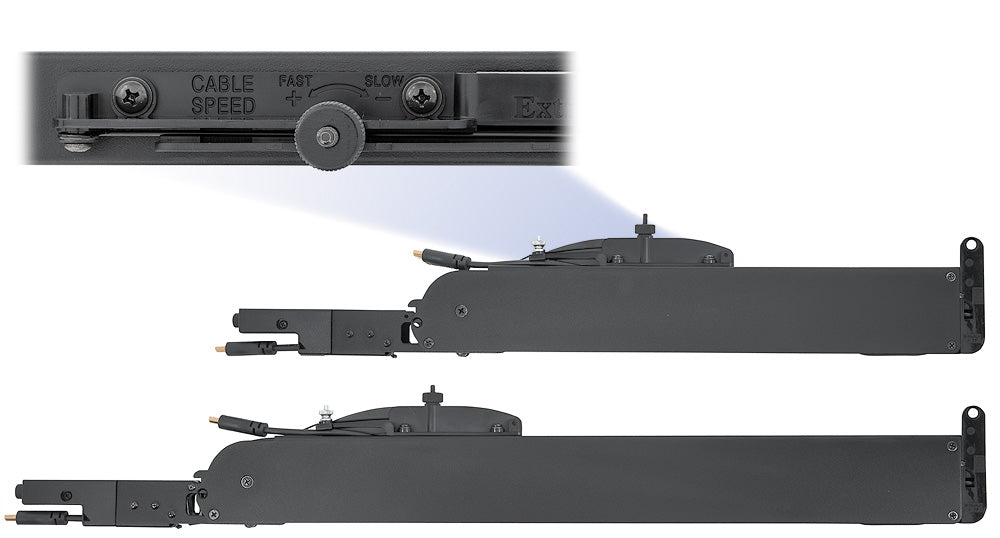

• Retraction speed adjustable across more than 50 steps between 1.5 and 4.0 seconds.
• 4 foot (1.2 m) pigtail below the surface for the switcher or display input.
• Tested to exceed 7,500 extension and retraction cycles.
• Three-year parts and labor warranty including the preinstalled cable assembly.

Where It Is Used

Established Cable Cubby installations built on the Series/2 XL generation that need a matching spare, and refurbishment work where enclosure consistency matters more than the newer 4K rating. New designs should use 70-1066-44 instead.

Specifications at a Glance

• Connector type: 1 male Mini DisplayPort to 1 male HDMI type A
• Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
• Product weight: 3.5 lbs (1.6 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Extron's published resolution and data-rate figures apply to the current 4K cable, so no video performance claim is made here for this retired part.
