Extron Retractor Series/2 XL DP-HDMI Cable Module
- • DisplayPort to HDMI with 5 ft (152 cm) of retractable travel
- • Latching DisplayPort connector resists accidental disconnection
- • Series/2 XL generation module for matching existing enclosures

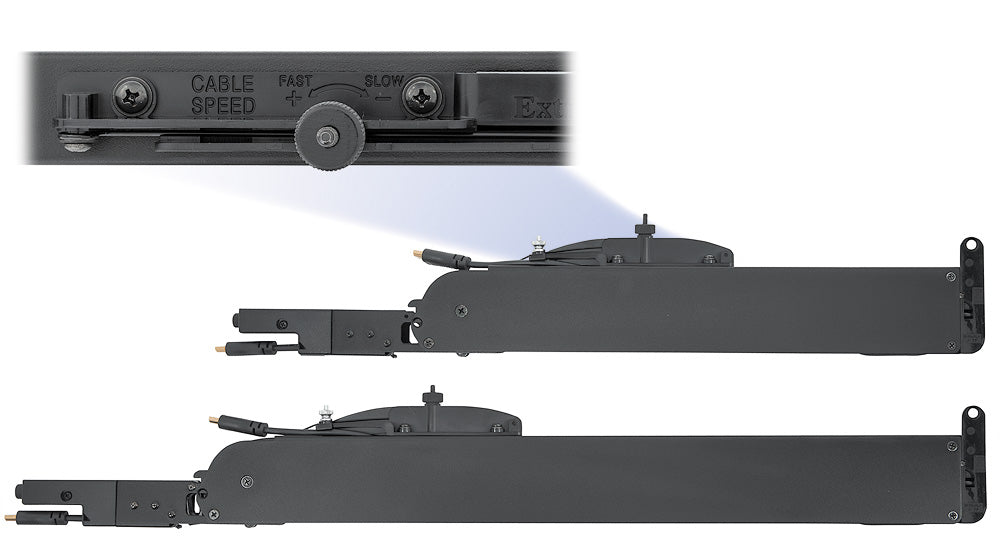

- • Over 50 retraction speed steps between 1.5 and 4.0 seconds
- • 4 ft (1.2 m) pigtail lands on the switcher or display input
- • Tested to exceed 7,500 extension and retraction cycles
- • Retired Extron part; the current 4K XL version is 70-1066-43
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron Retractor Series/2 XL DP-HDMI (part number 70-1066-08) — the Series/2 XL generation DisplayPort to HDMI retractor, now retired by Extron in favour of the 4K-rated 70-1066-43.
Extron prints this model with the Series/2 designation, which is how the earlier XL cable modules are distinguished from the current Retractor XL naming. The build is the tall XL housing carrying one continuous DisplayPort to HDMI assembly with 5 feet (152 cm) of travel: a latching DisplayPort connector at the surface, an HDMI type A end below. Nothing plugs together mid-run, so there is no adapter to lose and no coupler to fail.
Key Capabilities
- DisplayPort source to HDMI destination on a run extending up to 5 feet (152 cm).
- Latching DisplayPort connector reduces the risk of an accidental disconnect.
- Retraction speed adjustable over more than 50 steps between 1.5 and 4.0 seconds.
- 4 foot (1.2 m) pigtail beneath the surface for the switcher, extender or display.
- Mechanism tested to exceed 7,500 extension and retraction cycles.
- Three-year parts and labor warranty covering the preinstalled cable.
Where It Is Used
Existing Series/2 XL enclosures needing a matching spare, and refurbishment projects where keeping the bay consistent matters. Typical rooms are engineering benches, control consoles and wide conference tables where DisplayPort workstations feed HDMI displays. New designs should specify 70-1066-43.
Specifications at a Glance
- Connector type: 1 male latching DisplayPort to 1 male HDMI type A
- Enclosure: metal and plastic, 28.7" H x 1.2" W x 4.7" D (729 x 30 x 119 mm)
- Product weight: 3.5 lbs (1.6 kg)
- Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
- Regulatory compliance: RoHS, WEEE
Extron's current resolution and data-rate figures describe the 4K cable, so no video performance claim is published here for this retired part.
Also referenced as Extron RetractorSeries2XLDPHDMI, Retractor-Series-2-XL-DP-HDMI, part number 70106608.
