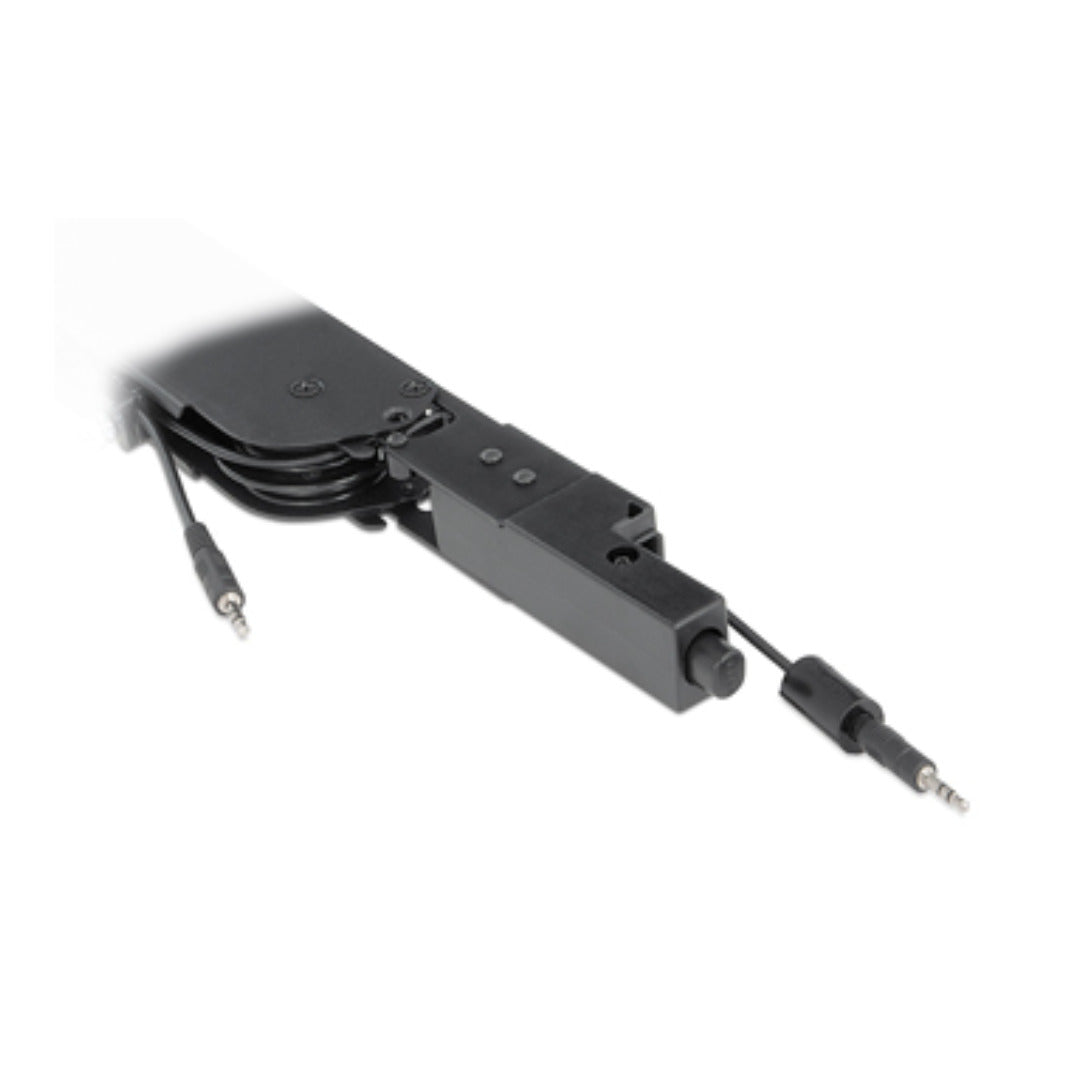

Extron Retractor PC Audio (part number 70-1065-02) — a retractable 3.5 mm stereo audio drop for tables that need a clean analog line feed and nothing else.

Not every connection at a table is video. Program audio from a laptop, a soundbar feed for a hybrid meeting, or a line input for an assistive listening system all want a dedicated 3.5 mm run that is always in the same place and never wandering. This module keeps one continuous TRS cable inside the Cable Cubby, presents a single connector at the surface, and takes it back on command.

Key Capabilities

• Stereo audio cable extends up to 3 feet (90 cm) and locks at any point in that travel.
• Male 3.5 mm stereo TRS (tip, ring, sleeve) connectors at both ends of a single continuous cable.
• Retraction speed adjusts over more than 50 steps between 1.5 and 4.0 seconds.
• Extension and retraction run on separate mechanisms, easing wear on the jacket and strain relief.
• Tested to exceed 7,500 cycles, backed by three years parts and labor including the preinstalled cable.
• 6 foot (1.8 m) pigtail underneath lands on a DSP, mixer or amplifier input.

Where It Is Used

Hybrid meeting tables feeding a room DSP, classroom lecterns supplying program audio to a ceiling system, music and language labs, broadcast talkback positions, and assistive listening drops in council chambers. Anywhere a 3.5 mm patch cord would otherwise be taped down or repeatedly replaced.

Specifications at a Glance

• Connector type: 1 male 3.5 mm stereo audio TRS to 1 male 3.5 mm TRS
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE
