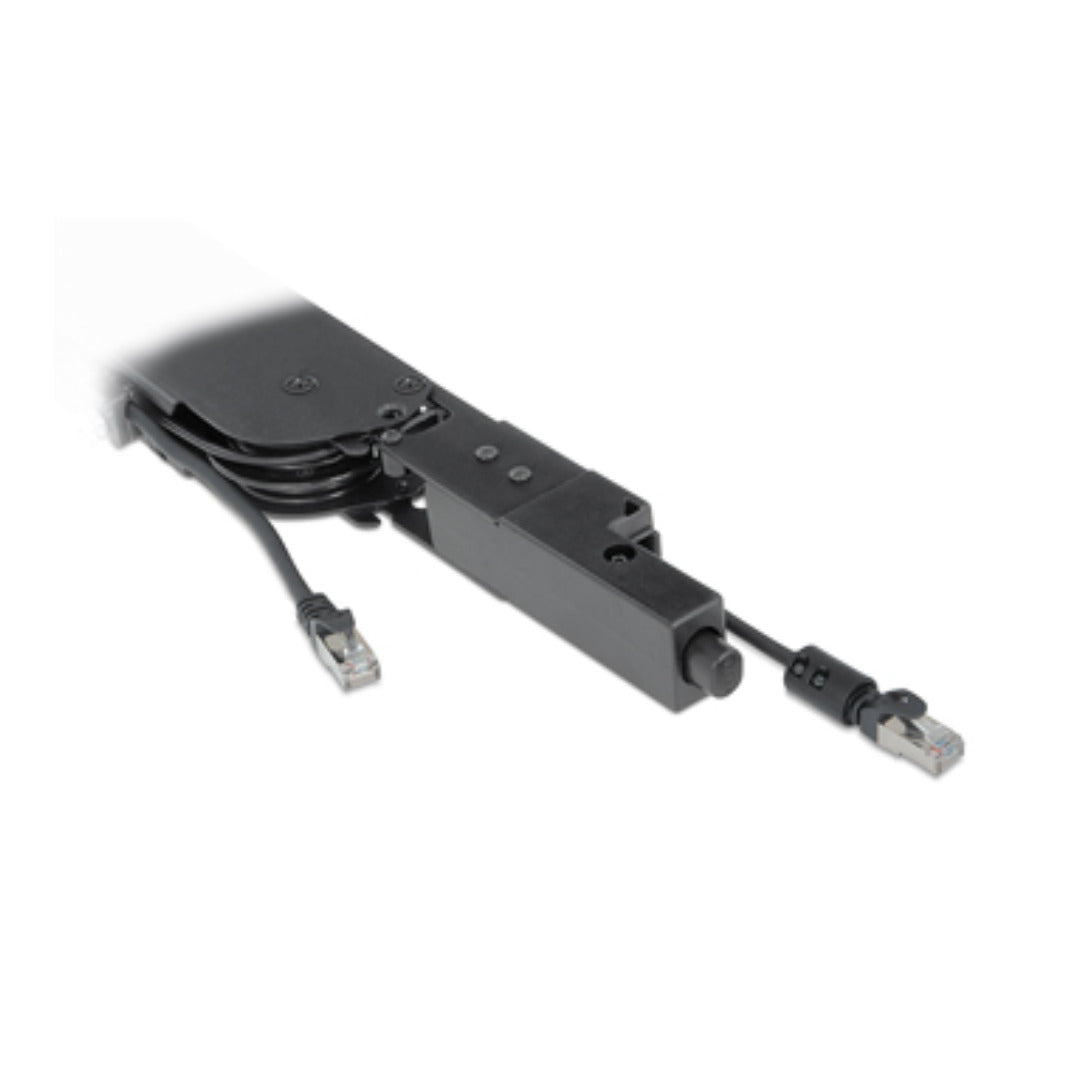

Extron Retractor Network CAT 6 Cable Retraction Module 70-1065-03
Extron Retractor Network CAT 6 Cable Retraction Module 70-1065-03
Extron Retractor Network CAT 6 Retraction Module
- • Extron Retractor CAT 6 network cable module
- • Male shielded RJ-45 at both ends
- • 6 ft (1.8 m) pigtail under the surface
- • Sales, replacement and exchange
- • Part# 70-1065-03 / 70106503
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron Retractor Network (part number 70-1065-03) - a retractable shielded CAT 6 drop that lives inside a Cable Cubby enclosure and disappears when the meeting ends.
Wired network access on a shared table is awkward: patch cords get borrowed, coiled badly, or left dangling. This module solves it by keeping one continuous shielded CAT 6 run permanently anchored in the furniture. A user draws the RJ-45 connector out as far as the laptop sits, the mechanism holds it there, and a button press winds it back into the enclosure at a controlled rate rather than snapping it home.
Key Capabilities
- Delivers a CAT 6 network connection that extends up to 3 feet (90 cm) from the enclosure face.
- Shielded RJ-45 male connectors at both ends preserve the twisted-pair performance of the run.
- Integrator-set return speed offers more than 50 discrete steps from 1.5 to 4.0 seconds.
- Separate extension and retraction mechanisms reduce strain on the cable jacket over time.
- Tested to exceed 7,500 cycles, with a three-year parts and labor warranty on the module and its preinstalled cable.
- Ships ready for vertical mounting; horizontal and 30-degree angular positions are supported with the optional bracket.
Where It Is Used
Boardrooms and executive conference tables that still require a hardwired link for guest laptops, university teaching stations, medical imaging review desks where wireless is discouraged, courtroom counsel positions and network operations consoles. Any table where a permanent, tidy Ethernet drop beats a loose patch cord.
Specifications at a Glance
- Cable standard: CAT 6
- Connector type: 1 male shielded RJ-45 to 1 male shielded RJ-45
- 6 foot (1.8 m) pigtail under the surface for the switch or patch field
- Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm), 2.8 lbs (1.3 kg)
- Regulatory compliance: RoHS, WEEE
Frequently asked questions about the Extron Retractor Network CAT 6 Cable Retraction Module
Does Ampronix sell the Extron Retractor Network CAT 6 Cable Retraction Module?
Yes. Ampronix is an authorized Extron distributor and sells the Extron Retractor Network CAT 6 Cable Retraction Module (70-1065-03). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron Retractor Network CAT 6 Cable Retraction Module?
Yes. Ampronix provides sales, replacement and exchange for the Extron Retractor Network CAT 6 Cable Retraction Module. Call Ampronix for a quote.
Is the Extron Retractor Network CAT 6 Cable Retraction Module listed under other names?
Yes. The Extron Retractor Network CAT 6 Cable Retraction Module is also referenced as Extron RetractorNetwork, Retractor-Network, part number 70106503.
What are the key features of the Extron Retractor Network CAT 6 Cable Retraction Module?
Key points: Delivers a CAT 6 network connection that extends up to 3 feet (90 cm) from the enclosure face; Shielded RJ-45 male connectors at both ends preserve the twisted-pair performance of the run; Integrator-set return speed offers more than 50 discrete steps from 1.5 to 4.0 seconds; Separate extension and retraction mechanisms reduce strain on the cable jacket over time. Call Ampronix to confirm details for your application.
Also referenced as Extron RetractorNetwork, Retractor-Network, part number 70106503.
Related: Extron products, Video Solutions.
