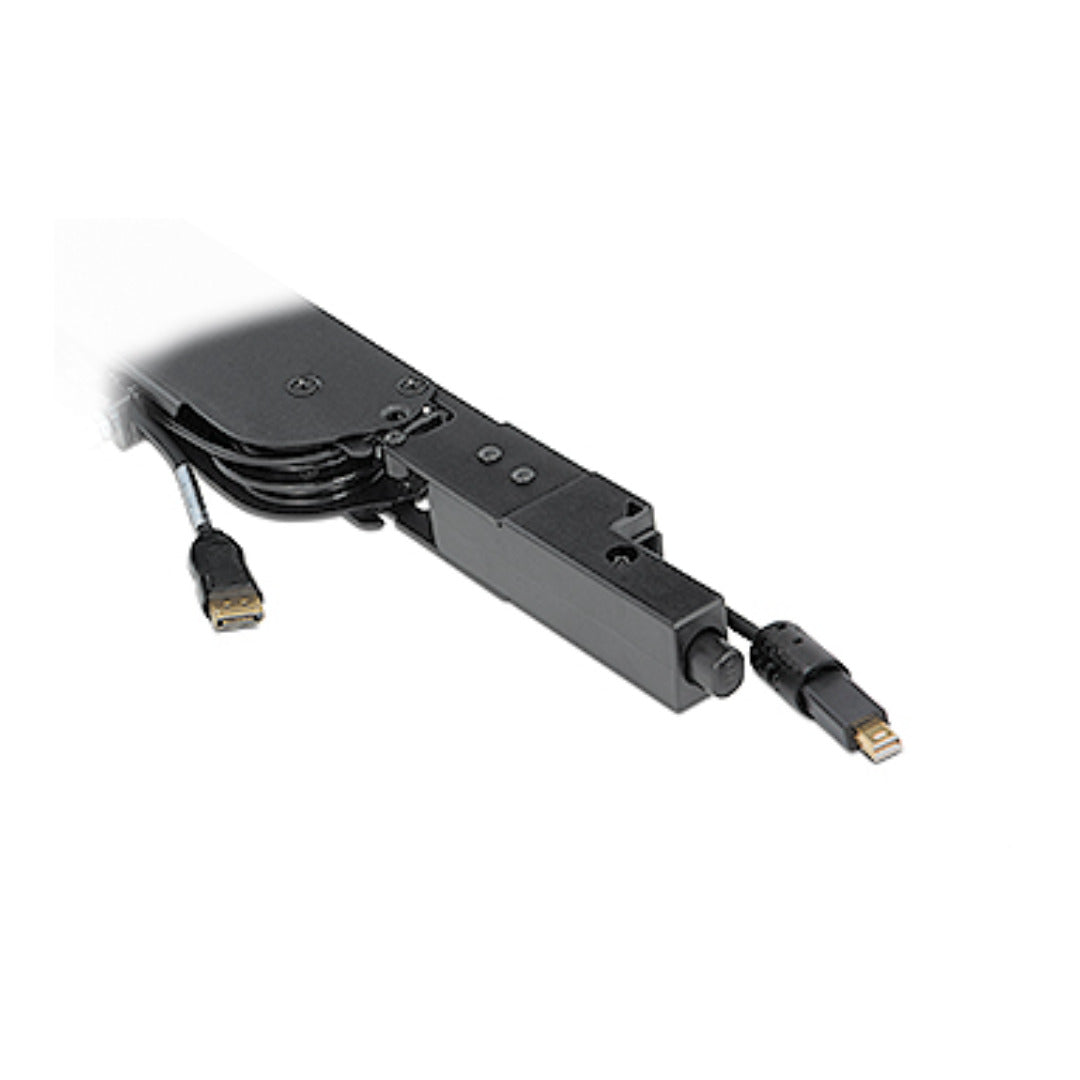

Extron Retractor Mini DisplayPort-DisplayPort (part number 70-1065-18) — a retractable Mini DisplayPort to DisplayPort cable stored inside a Cable Cubby enclosure.

Mini DisplayPort still appears on workstations, thin clients, older Mac hardware and a lot of specialist imaging gear, while switchers and monitors expect full-size DisplayPort. This module carries that conversion as a single continuous run: a male Mini DisplayPort at the tabletop end and a male latching DisplayPort at the equipment end. The latch is the practical detail — under-table connectors that cannot back out save service calls.

Key Capabilities

• Retractable Mini DisplayPort to DisplayPort run extending up to 3 feet (90 cm).
• Maximum video data rate of 10.8 Gbps, or 2.7 Gbps per lane.
• Signal handling for HDMI 1.4 and DisplayPort 1.1a.
• Frame rates from 24 to 60 fps with 4:4:4, 4:2:2 or 4:2:0 chroma at 8 bits per color.
• More than 50 retraction speed steps spanning 1.5 to 4.0 seconds.
• Tested to exceed 7,500 cycles; three-year parts and labor warranty includes the cable.

Where It Is Used

Engineering and CAD benches, imaging and visualisation rooms, editing suites, and conference tables that have to accommodate Mini DisplayPort sources without leaving an adapter loose on the surface. The module installs vertically as shipped, or horizontally and at 30 degrees with the optional bracket.

Specifications at a Glance

• Connector type: 1 male Mini DisplayPort to 1 male latching DisplayPort
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE
