Extron Retractor Horizontal Mounting Bracket Kit (part number 70-678-00) — the bracket that lets Retractor modules hang horizontally under a table instead of vertically.

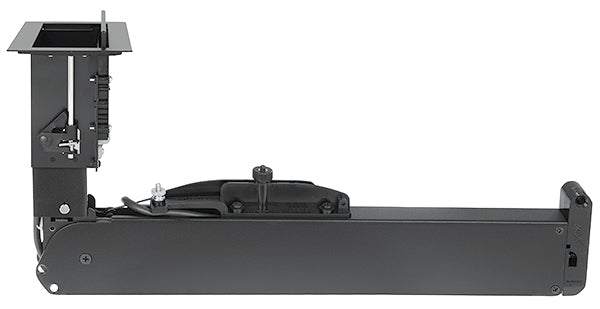

Extron recommends horizontal mounting wherever there is room for it: legroom improves and the modules are far less likely to be kicked. It is not optional equipment — a Retractor cannot be installed horizontally without this bracket kit. The bracket attaches to the end caps of the retractor assembly with the supplied hardware, is traced and screwed to the underside of the work surface, and then the whole assembly is raised into it and bolted through.

Key Capabilities

• Required hardware for any horizontal Retractor installation.
• A single bracket carries up to three Retractor modules.
• Slotted mounting holes give tolerance when positioning the bracket under the surface.

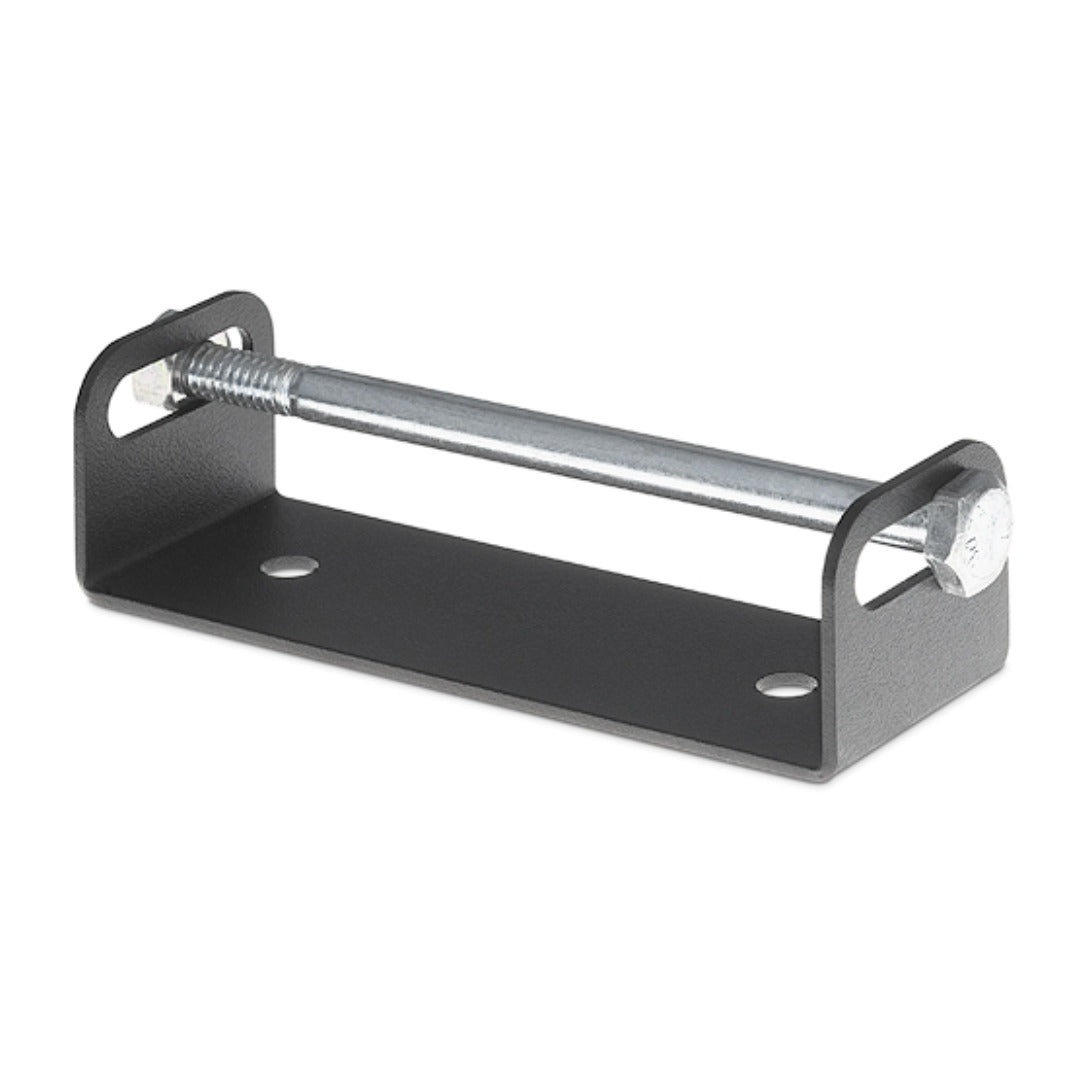

• Fastens to the retractor end caps with the supplied bolt and nut, then to the furniture with the supplied screws.
• Horizontal mounting maximises legroom and protects the modules from accidental damage.

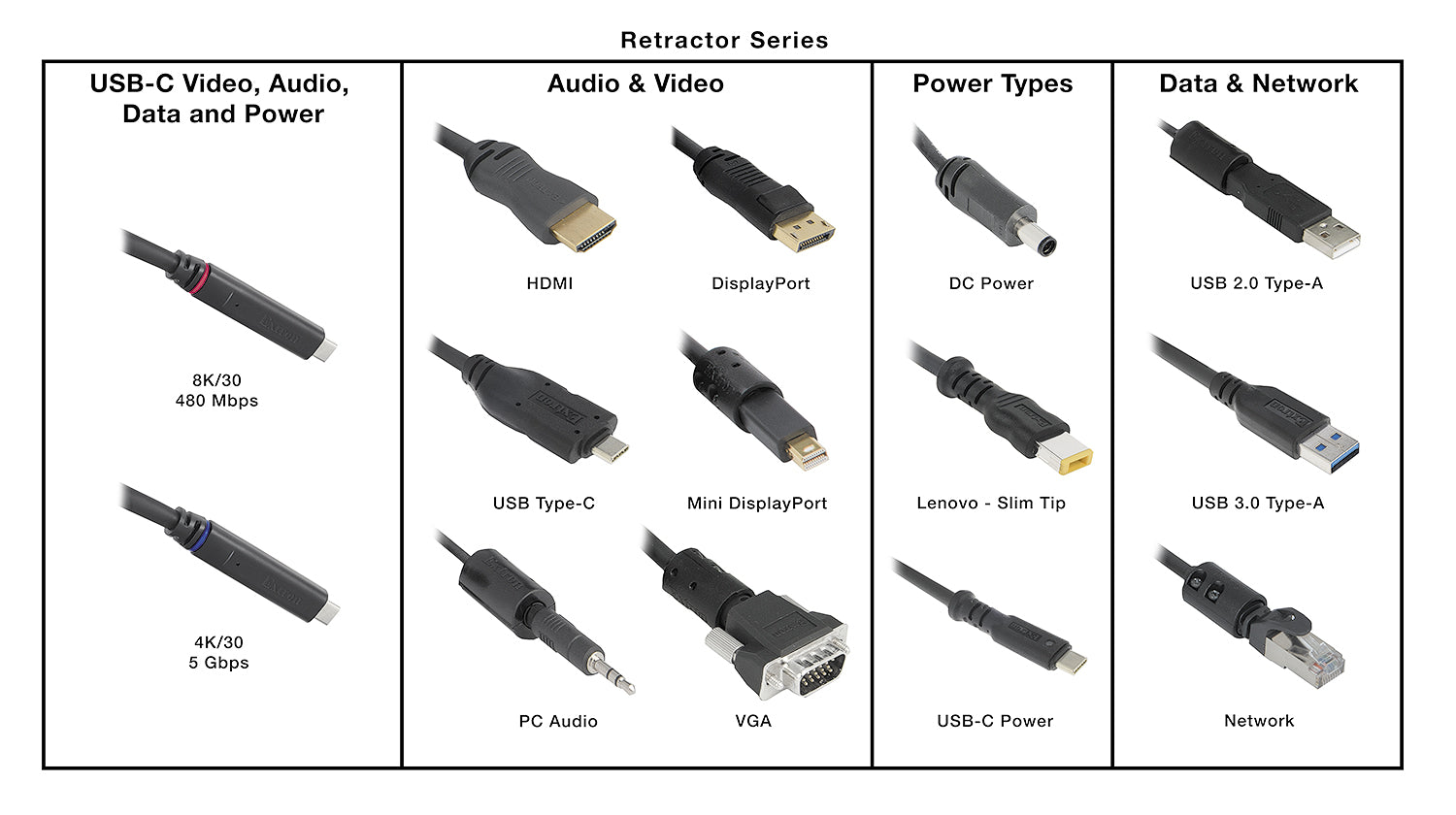

• Listed by Extron as an accessory for both Retractor Series and Retractor Series XL.

Where It Is Used

Conference and boardroom tables where under-table clearance is shallow, classroom and training benches with fixed seating, and courtroom or council positions where a vertically hung retractor would foul the occupant's legs. Note that a Cable Cubby 202 installation calls for an additional bracket.

Specifications at a Glance

• Function: horizontal mounting bracket kit for Retractor modules
• Capacity: up to three Retractor modules per bracket
• Slotted holes for placement tolerance; mounting hardware supplied
• Compatible with Retractor Series and Retractor Series XL modules
• Current Extron part number

Ensure the supplied screws do not pierce the top of the table; choose screws suited to the material and thickness if in doubt.
