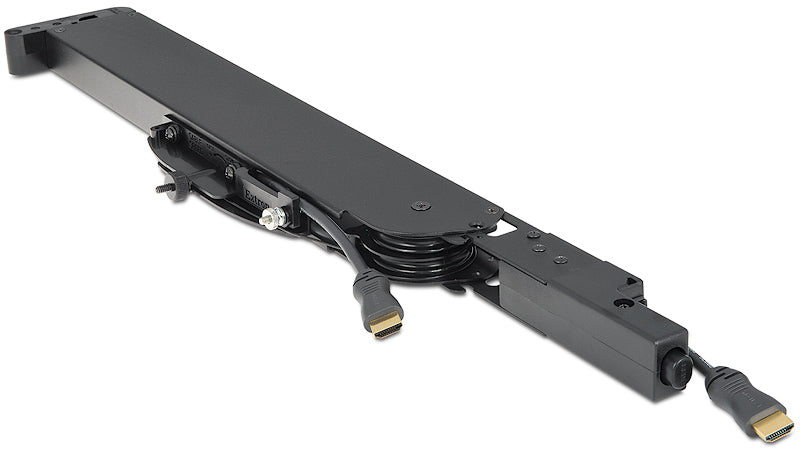

Extron Retractor HDMI (part number 70-1065-04) — a spring-loaded HDMI cable module that hides three feet of cable inside a Cable Cubby enclosure until someone needs it.

Loose HDMI cables on a conference table get yanked, kinked and lost. This module fixes that by anchoring one continuous HDMI run inside the furniture. A user pulls out only as much cable as the reach demands, and the mechanism locks it there — no clip, no velcro, no coiling. Pressing the release button draws the cable back into the enclosure under controlled tension, so the connector returns to the same resting position every time.

Key Capabilities

• Extends a continuous HDMI cable up to 3 feet (90 cm) above the work surface and locks at any point along that travel.
• Carries HDMI 1.4 and DisplayPort 1.1a signalling with a maximum video data rate of 10.2 Gbps, or 3.4 Gbps per color.
• Handles frame rates of 24, 25, 30, 50 and 60 fps at 4:4:4, 4:2:2 or 4:2:0 chroma sampling and 8 bits per color.
• Retraction speed is set by the integrator across more than 50 detents spanning 1.5 to 4.0 seconds.
• A 6 foot (1.8 m) pigtail on the underside reaches switchers, extenders or floor boxes without a patch cable.
• Rated beyond 7,500 extension and retraction cycles and backed by a three-year parts and labor warranty covering the preinstalled cable.

Where It Is Used

Boardroom and huddle-room tables, university lecterns and active-learning classrooms, courtroom counsel tables, and clinical review rooms where a laptop connection has to be available on demand but invisible the rest of the day. Vertical, horizontal and 30-degree angular mounting orientations are all supported beneath the furniture.

Specifications at a Glance

• Connector type: 1 male HDMI type A to 1 male HDMI type A
• Enclosure: metal and plastic, 22.7" H x 1.2" W x 4.7" D (57.7 x 3.0 x 11.9 cm)
• Product weight: 2.8 lbs (1.3 kg)
• Mounts into Extron Cable Cubby, TLP Cable Cubby TouchLink and AVEdge 100 enclosures and the TMK 120 R Table Mount Kit, all sold separately
• Regulatory compliance: RoHS, WEEE

Also referenced as Extron RetractorHDMI, Retractor-HDMI, part number 70106504.
