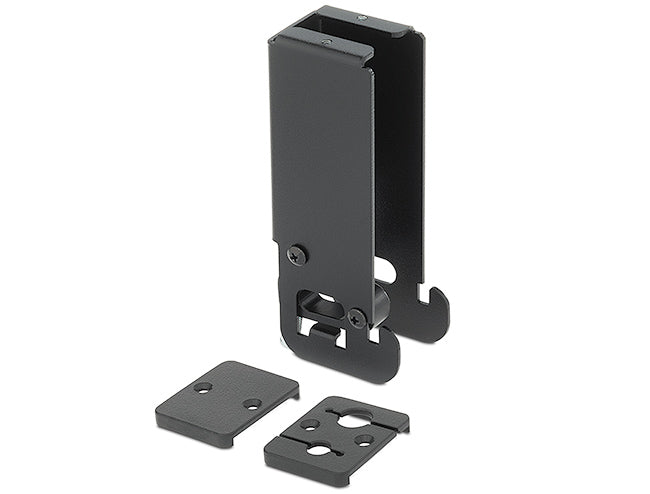

Extron Retractor Filler Module (part number 70-1065-35) — the blanking module that closes an unused Retractor position in a Cable Cubby enclosure.

A Retractor installation has to be complete. Extron requires filler modules to occupy any Retractor space that is not carrying a cable module, so the enclosure stays sealed, the mounting pin still passes through every position, and the assembly is mechanically solid. This kit covers both cases: a blank cover plate for a genuinely empty bay, and a cable pass-through plate when a fixed cable needs to leave the enclosure without a retraction mechanism.

Key Capabilities

• Occupies unused Retractor module space so the enclosure assembly stays complete.
• Ships with both a blank cover plate and a cable pass-through plate; fit whichever the bay needs.
• Hole plugs in two sizes, 1/4 inch and 3/8 inch, close off pass-through holes that are not used.
• Includes two #4-40 cover plate screws and the mounting hardware for the plates.
• Installs alongside Retractor modules on the same mounting pin and clip, then locks with a locking screw.
• Listed by Extron as an accessory for both Retractor Series and Retractor Series XL installations.

Where It Is Used

Any Cable Cubby, TouchLink or AVEdge enclosure specified with fewer Retractor modules than it can hold — boardrooms, classrooms, courtrooms and control rooms where the installer wants headroom for later expansion. The pass-through plate is also useful where a permanently connected cable, rather than a retractable one, leaves the enclosure.

Specifications at a Glance

• Kit contents: filler module, cable pass-through plate, blank cover plate, hole plugs, mounting screws
• Hole plug sizes: 1/4 inch and 3/8 inch
• Cover plate fixings: two #4-40 screws
• Secured in the enclosure with the Retractor mounting pin, clip and locking screw
• Current Extron part number for Retractor Series and Retractor Series XL builds

Also referenced as Extron RetractorFillerModule, Retractor-Filler-Module, part number 70106535.
