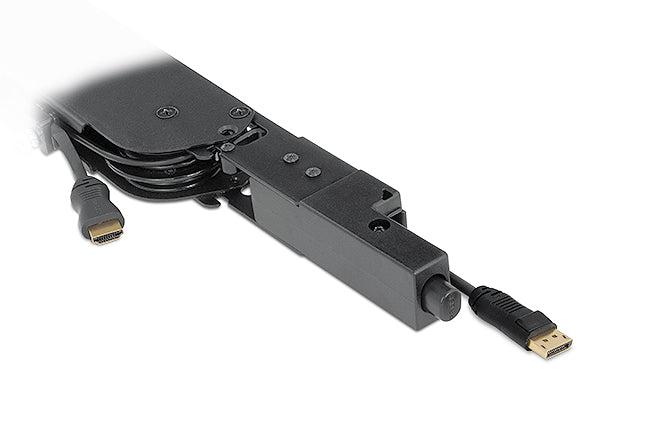

Extron Retractor DisplayPort-HDMI (part number 70-1065-43) — the current DisplayPort-to-HDMI module in Extron's Retractor Series, with a 3 ft (90 cm) cable.

Extron lists this exact part as the DisplayPort to HDMI, 3-foot version of the Retractor. The module drops into a Cable Cubby, AVEdge 100 or TMK 120 R and keeps its cable coiled out of sight until a presenter pulls it up through the table. Let go and it stays put; press the release and it winds back at the speed the integrator dialed in, anywhere across more than 50 steps from 1.5 to 4.0 seconds. Extron builds the extend and retract paths separately so the cable is not permanently under tension.

Key Capabilities

• Factory-fitted DisplayPort to HDMI cable, 3 feet (90 cm) of extension
• Holds securely at any user-selected length, releases on a button press
• Variable retraction speed, 1.5 to 4.0 seconds, 50-plus adjustment steps
• Mounts vertical, horizontal or 30 degrees off-vertical in a Cable Cubby enclosure
• Tested to exceed 7,500 extension and retraction cycles
• Warranty covers the pre-installed cable assembly, not just the mechanism

Where It Is Used

Boardrooms, higher-education lecture theatres, corporate training rooms, courtrooms and any bring-your-own-device table where DisplayPort laptops meet HDMI displays. Integrators pick it to eliminate the loose adapter that otherwise walks away.

Specifications at a Glance

• Cable: DisplayPort to HDMI, up to 3 feet (90 cm)

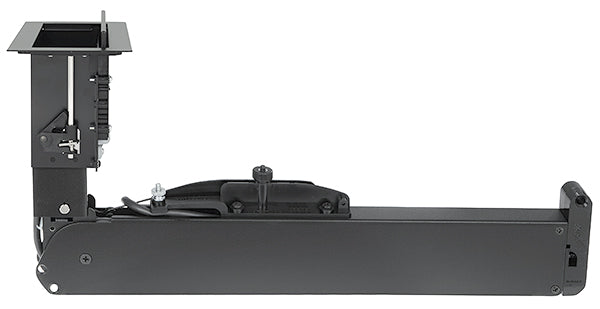

• Enclosure: 22.7 in H x 1.2 in W x 4.7 in D, metal and plastic
• Weight: 2.8 lbs (1.3 kg)
• Compliance: RoHS, WEEE
• Warranty: 3 years parts and labor, including the pre-installed cable assembly

Also referenced as Extron Retractor DP-HDMI, part number 70106543.
