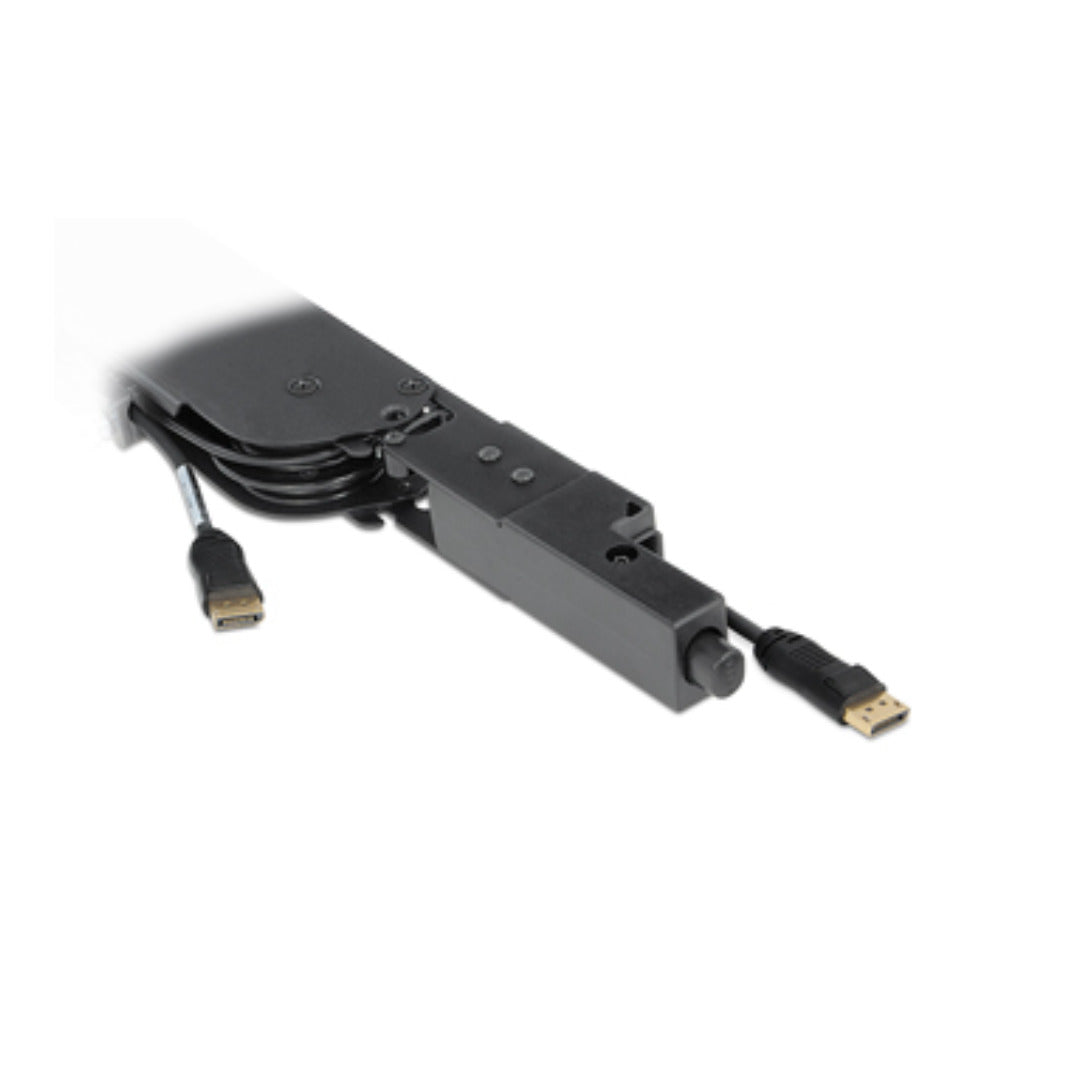

Extron Retractor DisplayPort (part number 70-1065-07) — a spring-loaded DisplayPort cable module for Extron Cable Cubby and AVEdge enclosures.

A loose DisplayPort cable on a conference table is a cable that gets lost, kinked or walked off with. A Retractor module ends that: the cable lives inside the enclosure, pulls out to the length the user needs, locks there, and returns on a button press. Extron separates the extension and retraction mechanisms so the cable is not under constant strain, and a technician can dial the return speed anywhere across more than 50 steps between 1.5 and 4.0 seconds during commissioning. Extron tests the mechanism past 7,500 full cycles.

Key Capabilities

• Cable extends up to 3 feet (90 cm) and holds at any user-set length
• Push-button release retracts the cable back into the enclosure
• Integrator-adjustable retraction speed, 1.5 to 4.0 seconds across 50-plus steps
• Mounts vertically, horizontally, or at 30 degrees off-vertical in a Cable Cubby
• Fits Cable Cubby, TLP Cable Cubby TouchLink, AVEdge 100 and TMK 120 R hardware
• Tested to exceed 7,500 extension and retraction cycles

Where It Is Used

Boardroom and conference tables, huddle rooms, training rooms, lecterns and classroom podiums. Wherever a guest presenter has to plug a laptop into a DisplayPort input and the room owner wants the cable to disappear the moment the meeting ends.

Specifications at a Glance

• Enclosure: 22.7 in H x 1.2 in W x 4.7 in D, metal and plastic
• Weight: 2.8 lbs (1.3 kg)
• Life expectancy: tested to exceed 7,500 cycles
• Compliance: RoHS, WEEE
• Warranty: 3 years parts and labor, including the pre-installed cable assembly

Also referenced as Extron Retractor-DisplayPort, part number 7010650 7.
