Extron Remote Commissioning – XTP Systems 03-032-01

Details

Part number 03-032-01

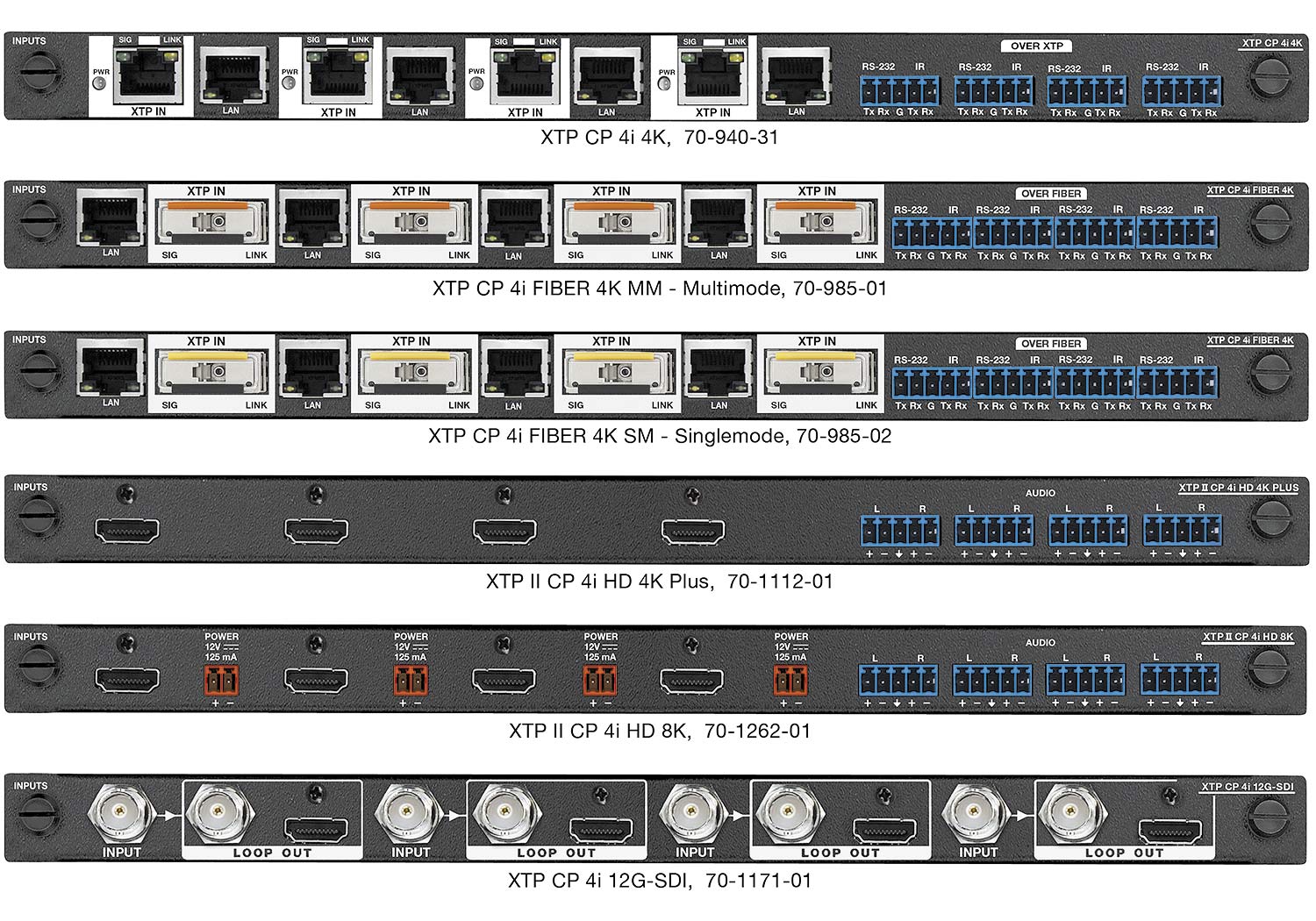

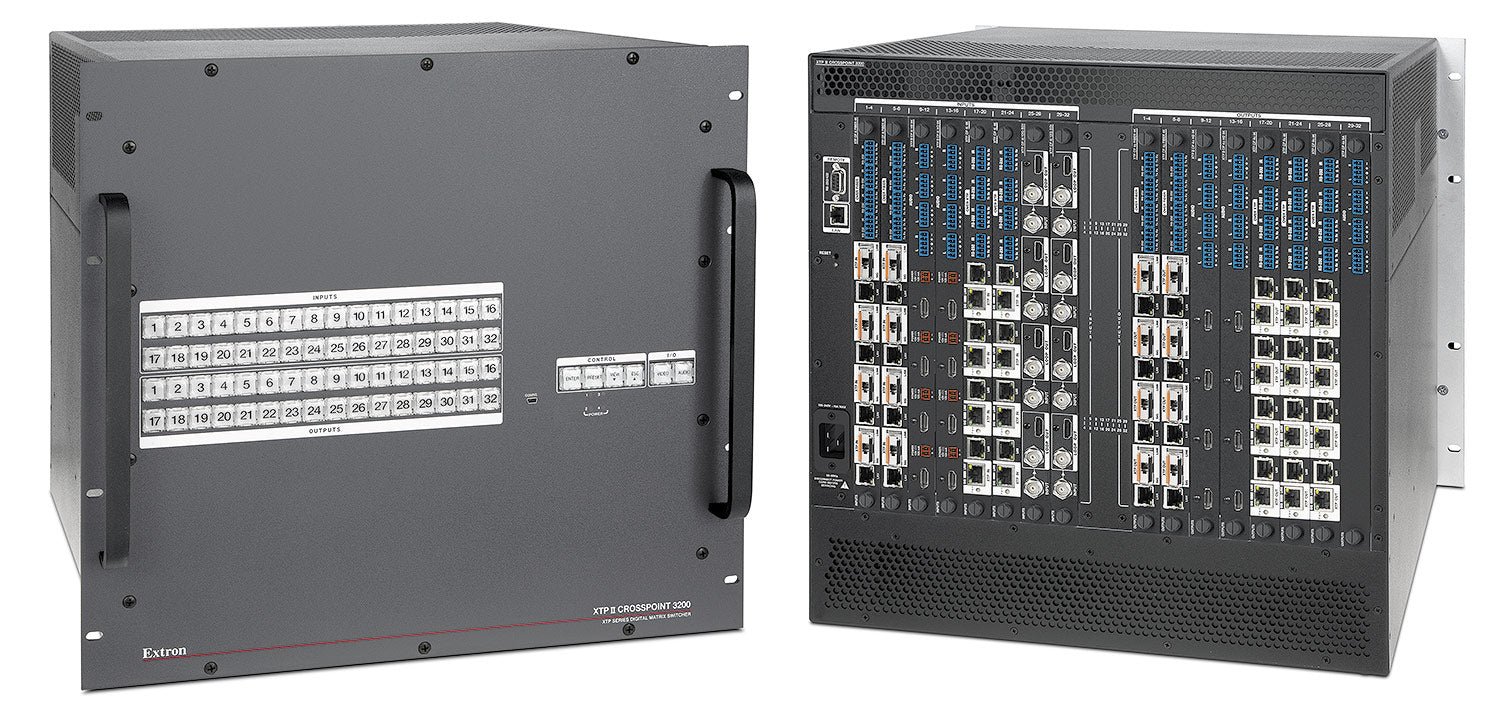

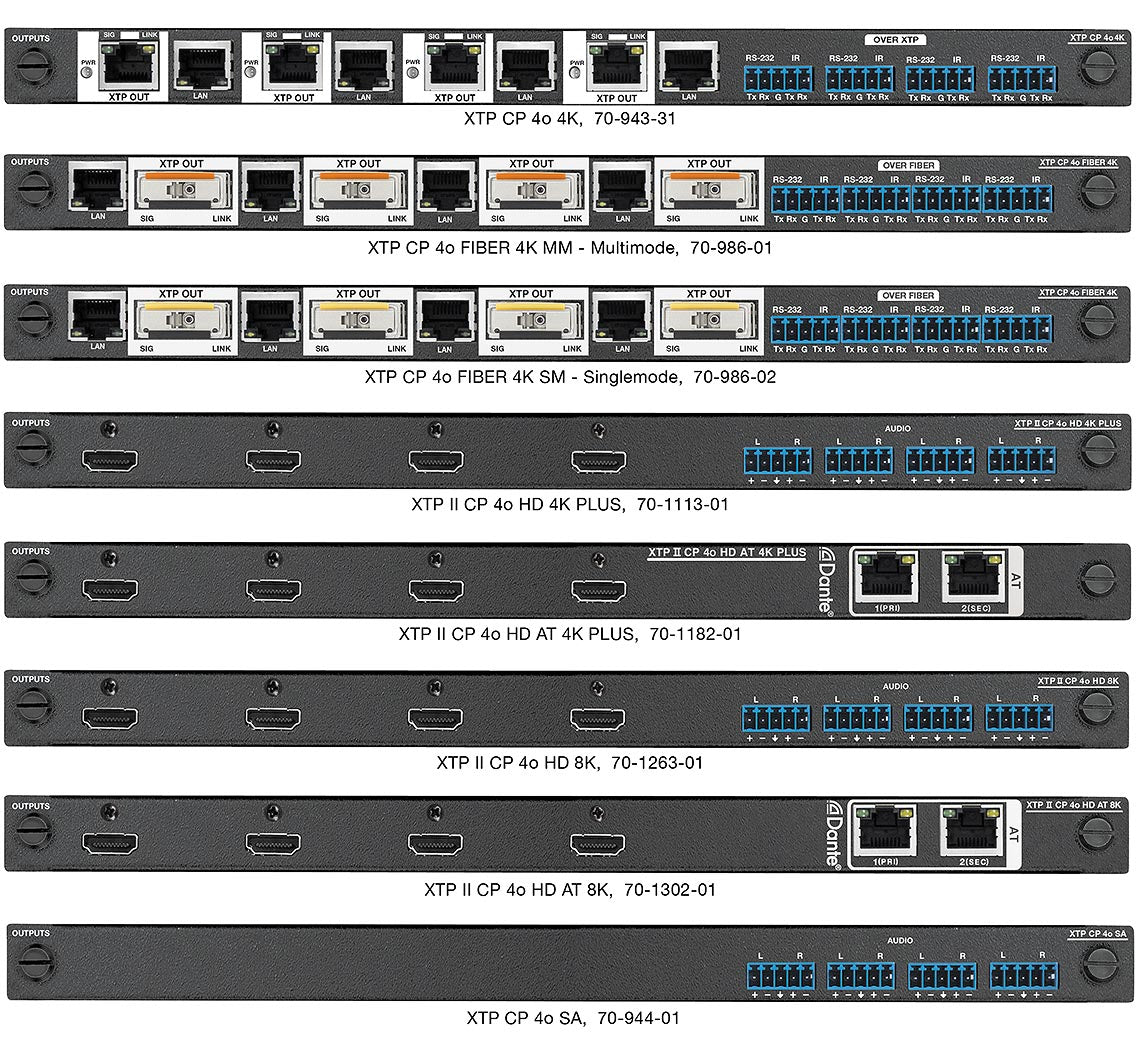

03-032-01 supplies the base configuration for remote commissioning of XTP systems within the XTP II CrossPoint 3200 modular matrix switcher. Integrators select this frame to enable high-performance switching of video and audio signals along with bidirectional control and Ethernet data across a 50 Gbps backplane. The design supports configuration of I/O sizes up to 32x32 through a choice of local, twisted pair or fiber optic boards while providing remote power to connected transmitters and receivers plus audio breakaway routing.

This part number fits installations in conference rooms, auditoriums and command and control centers. Before selection note the 10U metal enclosure measuring 17.5 in H x 17.0 in W x 17.5 in D with right-to-left fan cooling, power draw of 116 W at no load or 170 W with four boards at 115 VAC 60 Hz, storage temperature range of -40 to +158 °F and operating range of +32 to +122 °F at up to 90% noncondensing humidity, plus compliance with CE, FCC Class A and RoHS requirements.

Model: 03-032-01 / 0303201

Frequently asked questions about the Extron Remote Commissioning - XTP Systems

Does Ampronix sell the Extron Remote Commissioning - XTP Systems?

Yes. Ampronix is an authorized Extron distributor and sells the Extron Remote Commissioning - XTP Systems (03-032-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron Remote Commissioning - XTP Systems?

Yes. Ampronix provides sales, replacement and exchange for the Extron Remote Commissioning - XTP Systems. Call Ampronix for a quote.

What does the Extron Remote Commissioning - XTP Systems do?

Key details: 03-032-01 supplies the base configuration for remote commissioning of XTP systems within the XTP II CrossPoint 3200 modular matrix switcher. Call Ampronix to confirm it fits your installation.

What is the part number for the Extron Remote Commissioning - XTP Systems?

The part number is 03-032-01. Quote 03-032-01 when you contact Ampronix to order.

Will the Extron Remote Commissioning - XTP Systems work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron Remote Commissioning - XTP Systems is the right fit before you order.

How do I get a quote or lead time for the Extron Remote Commissioning - XTP Systems?

Call Ampronix with the model (03-032-01) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 03-032-01

Manufacturer: Extron

Condition: New

115 VAC, 60 Hz: 116 watts (no load) 170 watts (4 load boards installed)

240 VAC, 50 Hz: 102 watts (no load) 167 watts (4 load boards installed)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Backplane throughput: 50 Gbps per input and output

Baud rate and protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, 12 or 16 bits per color

Cooling: Fan, right to left (as viewed from front panel)

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI, KC

Enclosure dimensions: 17.5" H x 17.0" W x 17.5" D (10U high, full rack wide)(44.5 cm H x 43.2 cm W x 44.5 cm D)(Depth excludes connectors. Width excludes rack ears.)

Enclosure type: Metal

Environmental: Complies with the appropriate requirements of RoHS, WEEE.

Ethernet control port: 1 female RJ-45

Ethernet data rate (for network communication): 10/100Base-T, half/full duplex with autodetect

Ethernet default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.254Subnet mask = 255.255.0.0Default gateway = 0.0.0.0DHCP = off

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Everlast power supply warranty: 7 years parts and labor

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Input audio signal format: PCM up to 8 ch, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, analog stereo

Input video signal format: HDMI, DVI, 3G-SDI, 12G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber

Maximum throughput: 50 Gbps

Number of input slots: 8

Number of output slots: 8

Output audio signal format: PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo

Output video signal format: HDMI, DVI, XTP twisted pair, XTP fiber

Product warranty: 3 years parts and labor

Product weight with boards installed: 64.0 lbs (29.0 kg)

Program control: Extron XTP System Configuration Software for Windows®Extron Simple Instruction Set (SIS™)Microsoft® Internet Explorer® ver. 6 or higher, Telnet

RS-232: 2 = Tx, 3 = Rx, 5 = GND

RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

Rack mount: Yes

Remote power capability: Supports up to 24 XTP twisted pair endpoints

Safety: CE, c-UL, UL

Serial host control port: 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector

Switcher: 32x32 matrix

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, low speed

Vibration: ISTA 1A in carton (International Safe Transit Association)

Web server: Up to 200 simultaneous sessions7.0 MB nonvolatile user memory
