Extron Quantum Ultra II 305 Videowall Processor Chassis
- • 5-slot modular chassis for Extron Quantum Ultra II input/output cards
- • HyperLane fiber interconnect links up to 5 chassis for larger videowalls
- • Dual gigabit Ethernet, RS-232, and USB control built into the frame
- • Runs Extron VCS, SIS, Express Mobile Software, and Telnet
- • Power draw scales 101-760W depending on installed I/O cards
- • Compact 5.25 in / 3U enclosure, 28-55 lbs by configuration
- • 3-year parts-and-labor warranty; Everlast power supply covered 7 years
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

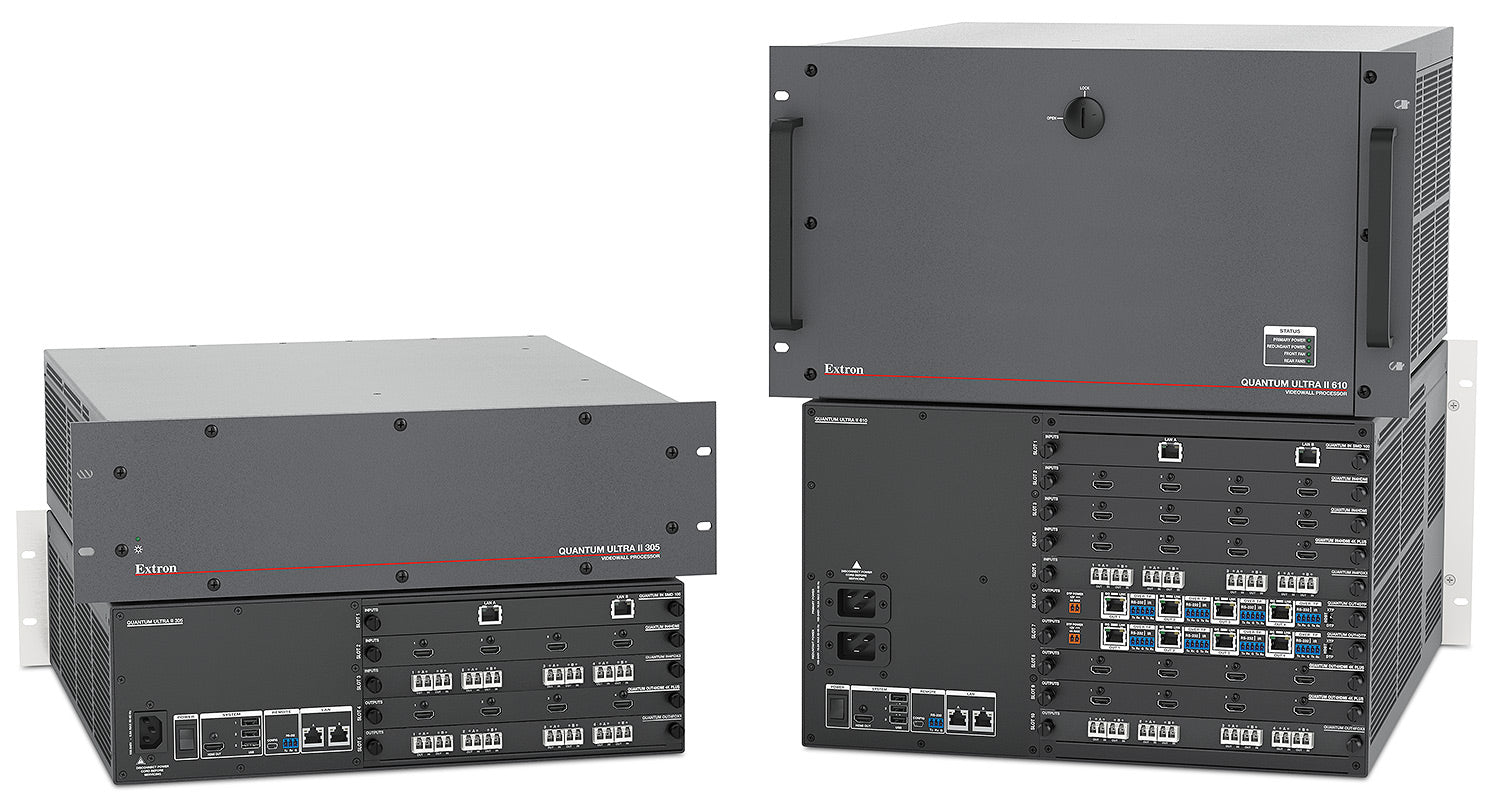

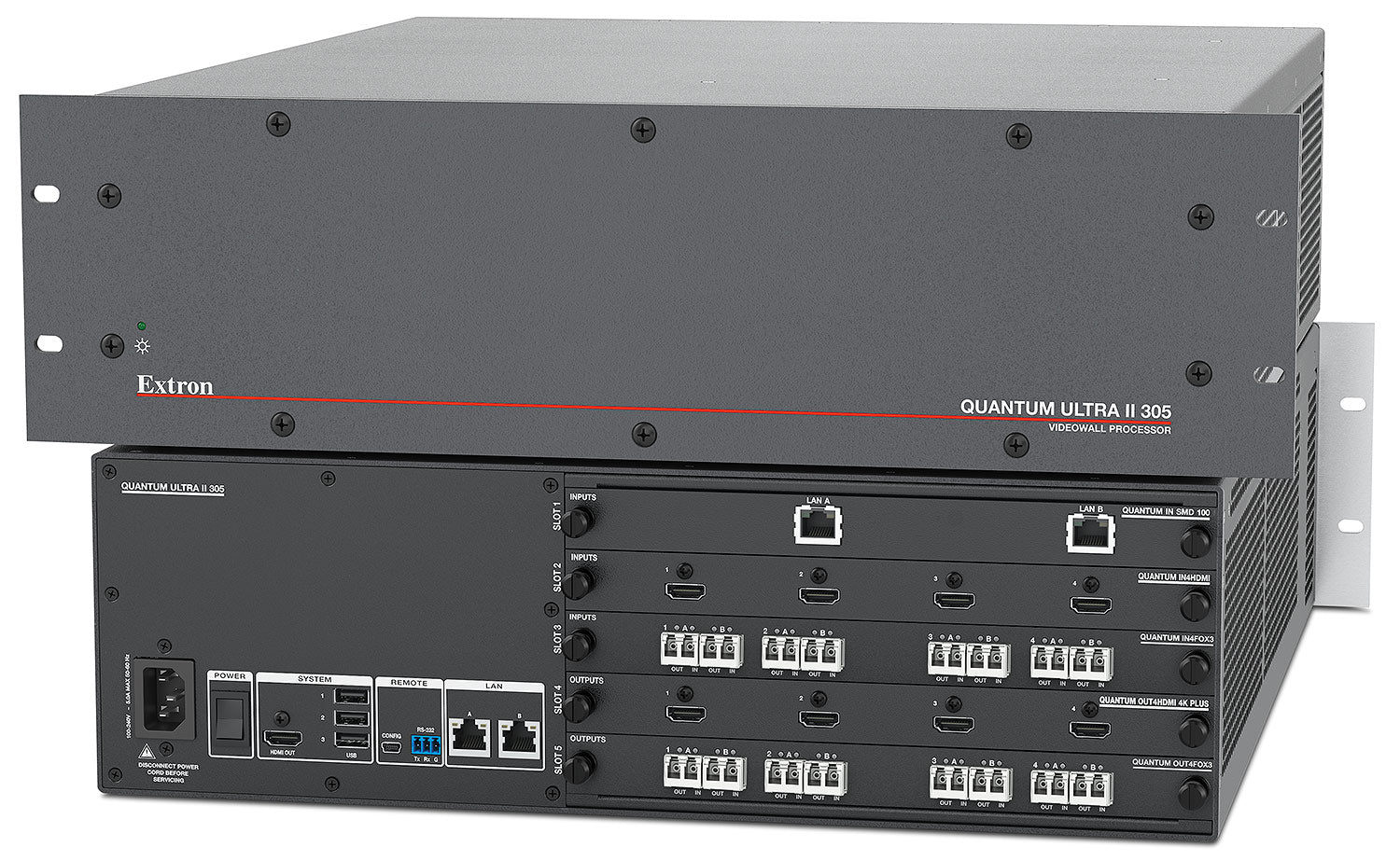

Extron Quantum Ultra II 305 (part number 60-1899-01) — a modular, 5-slot videowall processing chassis that scales with whatever input and output cards a project needs.

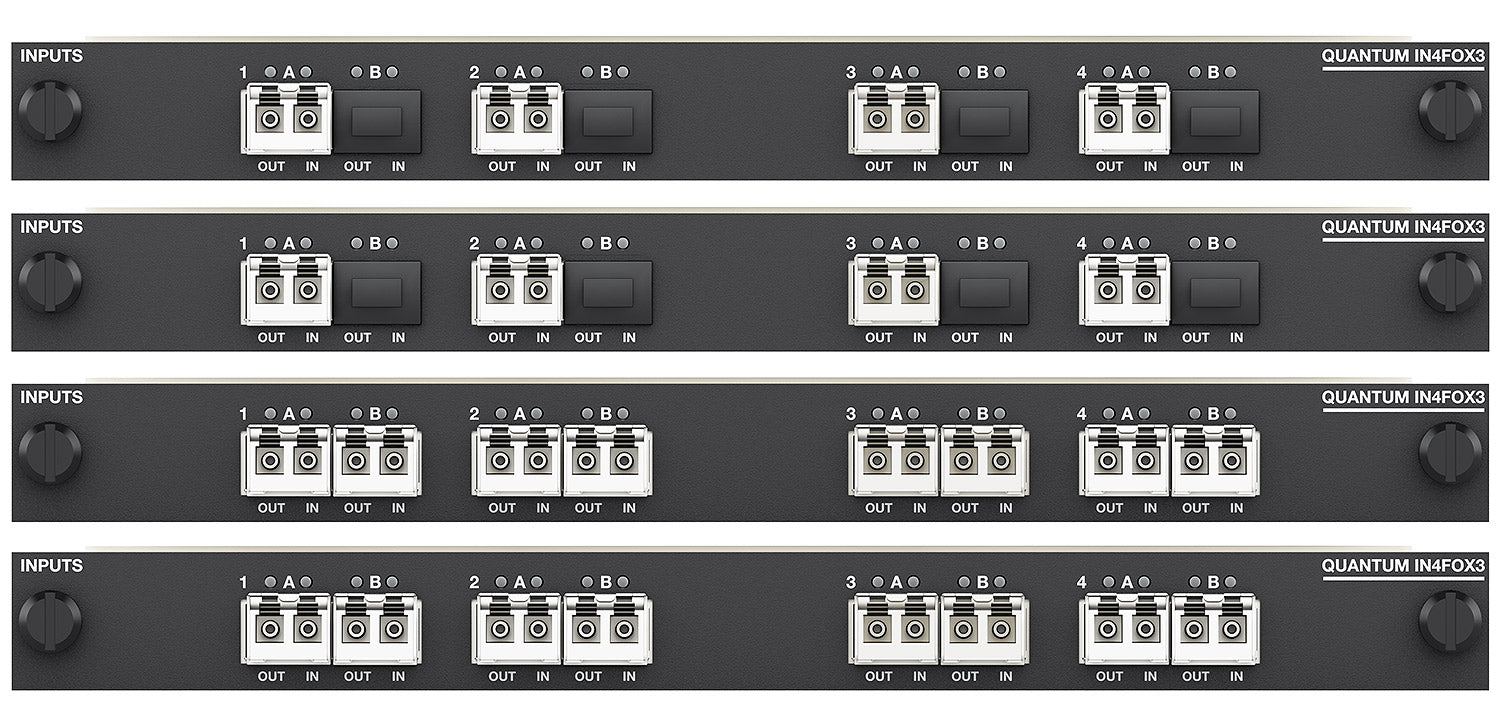

The 305 is the compact 3U member of Extron's Quantum Ultra II platform: an empty frame with dual gigabit Ethernet, RS-232, and USB control built in, ready to accept HDMI, DTP3, FOX3 fiber, or streaming input/output cards (sold separately) to match a specific videowall's signal mix. Up to five 305 or 610 chassis can be linked over HyperLane fiber interconnect for larger, multi-chassis videowall systems, and the whole platform is driven by Extron's Videowall Configuration Software, SIS, Express Mobile Software, or Telnet.
Key Capabilities
- 5 card slots for Extron's Quantum Ultra II input/output card lineup
- HyperLane chassis-to-chassis interconnect for up to 5-chassis systems
- Dual gigabit Ethernet, RS-232, and USB control built into the chassis
- Runs Extron VCS, SIS, Express Mobile Software, and Telnet
- Power draw scales 101-760 watts depending on installed cards
- Compact 5.25 in / 3U enclosure, 28-55 lbs depending on configuration
Where It Is Used
The 305 chassis fits control rooms, trading floors, and campus command centers that need a right-sized, expandable videowall processor rather than committing to the larger 610 frame, while keeping the option to add HyperLane-linked chassis later.
Specifications at a Glance
- Card slots: 5
- Interconnect: HyperLane, up to 5 chassis
- Enclosure: 5.25" H x 17.5" W x 19" D, 3U rack-mount
- Power: 101-760 W (config-dependent), 100-240 VAC
- Warranty: 3 years parts and labor; Everlast PSU 7 years
Also referenced as Extron QuantumUltraII305, Quantum-Ultra-II-305, part number 60189901.
