Extron Quantum Ultra Connect 84 (part number 60-1898-11) — a rack-mount videowall processing engine sized for mid-size multi-display walls in a single 3U chassis.

The Connect 84 accepts eight independent HDMI/DVI sources and routes them across four scaled HDMI outputs, giving integrators a self-contained way to build, resize, and reposition windows on a videowall without an external PC-based controller. Onboard 4K processing tops out at 4096x2160, with parallel HDMI connections available when a layout needs 50 or 60 Hz refresh at full 4K. Dual gigabit Ethernet ports, an RS-232 port, and USB control give integrators several paths into Extron's Videowall Configuration Software (VCS), SIS commands, or Telnet, so the processor drops into existing AV-over-IP or serial control schemes with minimal extra hardware.

Key Capabilities

• 8 HDMI/DVI inputs, 4 scaled HDMI/DVI outputs in one 3U rack-mount chassis
• Native 4K processing up to 4096x2160 for crisp mid-size videowalls
• Dual gigabit Ethernet plus RS-232 and USB for flexible control paths
• Runs Extron VCS software, SIS commands, and Telnet for system integration
• 121W full-load draw, drops to 38W in power-save mode

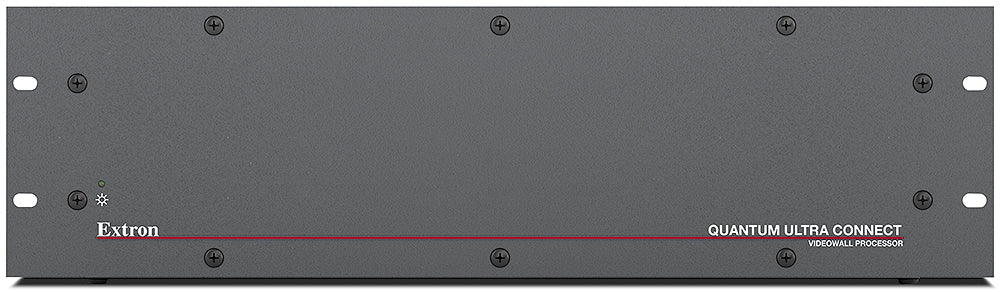

• Compact 5.25 in / 3U enclosure fits standard AV equipment racks

Where It Is Used

The Connect 84 suits boardrooms, control rooms, and mid-size operations centers that need a compact multi-graphic videowall processor without the input/output count of the larger Connect 128, while keeping the same VCS-based configuration workflow.

Specifications at a Glance

• Video I/O: 8 HDMI/DVI in, 4 HDMI/DVI out
• Max resolution: 4096x2160 (4K)
• Enclosure: 5.25" H x 17.5" W x 19" D, 3U rack-mount, 28.2 lbs
• Control: RS-232, 2x Gigabit Ethernet, USB
• Warranty: 3 years parts and labor

Also referenced as Extron QuantumUltraConnect84, Quantum-Ultra-Connect-84, part number 60189811.
