Details

Manufacturer: Extron; Model: Quantum Ultra 610; Part number: 60-1990-01 (also written 60199001)

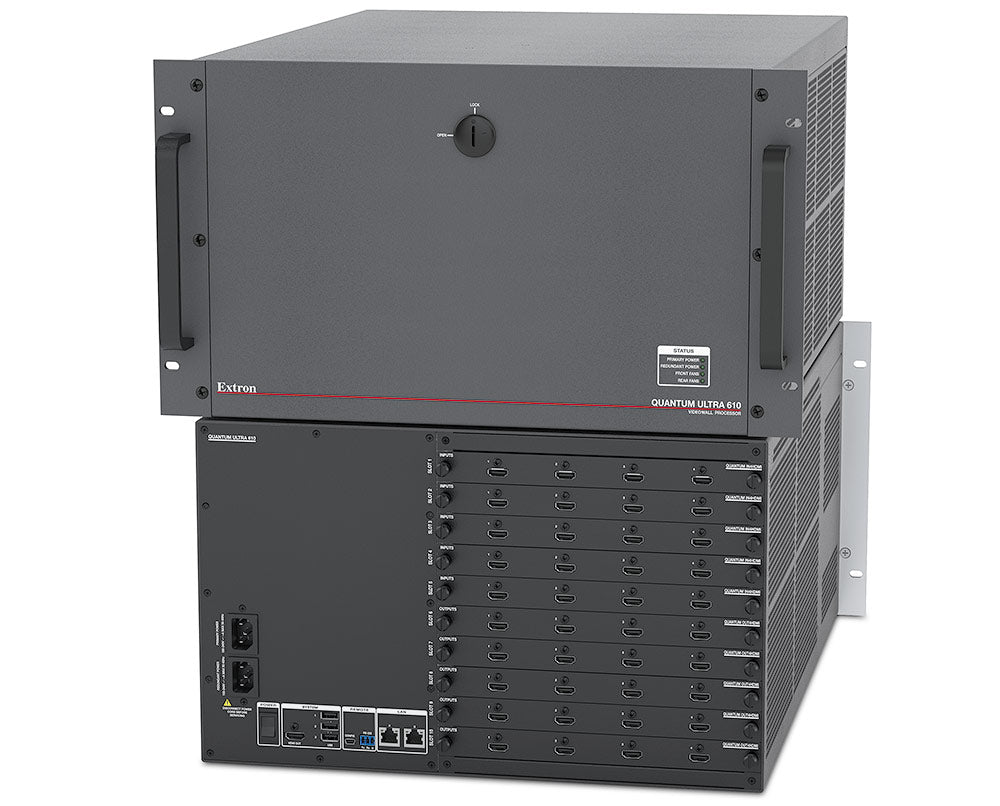

The Extron Quantum Ultra 610 (60-1990-01) is a 6U, 10-slot modular videowall processor. Any combination of Quantum input and output cards fills its ten slots to match the exact source and display count of the installation, scaling I/O configurations up to 36x4 or 4x36. The 400 Gbps HyperLane bus supports up to 20 simultaneous canvases with mixed resolutions and screen orientations, portrait and landscape, with bezel compensation. Two redundant hot-swappable Everlast power supplies support continuous dual-source operation for 24/7 mission-critical environments.

Key capabilities

10 card slots: any mix of Quantum input and output cards
400 Gbps HyperLane bus, up to 20 simultaneous canvases
Mixed resolutions and screen orientations including portrait and landscape
Two redundant hot-swappable Everlast power supplies for 24/7 operation
SpeedSwitch and Key Minder for rapid HDCP-encrypted content switching

Where it is used

Command centers, broadcast operations centers, emergency management facilities, and corporate lobbies where a large modular videowall processor with redundant power is required for continuous 24/7 operation.

Specifications at a glance

Enclosure: 10.5 in H x 17.5 in W x 22.3 in D, 6U high, full rack wide
Card slots: 10
Power: 2 x redundant hot-swappable Everlast PSUs
Control: RS-232 and Ethernet
Warranty: 3-year product, 7-year Everlast power supply

Frequently asked questions about the Extron Quantum Ultra 610

Does Ampronix sell the Extron Quantum Ultra 610?

Yes. Ampronix is an authorized Extron distributor and sells the Extron Quantum Ultra 610 (60-1990-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron Quantum Ultra 610?

Yes. Ampronix provides sales, replacement and exchange for the Extron Quantum Ultra 610. Call Ampronix for a quote.

Is the Extron Quantum Ultra 610 listed under other names?

Yes. The Extron Quantum Ultra 610 is also referenced as Extron QuantumUltra610, Quantum-Ultra-610, part number 60199001.

What are the key features of the Extron Quantum Ultra 610?

Key points: 10 card slots: any mix of Quantum input and output cards; 400 Gbps HyperLane bus, up to 20 simultaneous canvases; Mixed resolutions and screen orientations including portrait and landscape; Two redundant hot-swappable Everlast power supplies for 24/7 operation. Call Ampronix to confirm details for your application.

Also referenced as Extron QuantumUltra610, Quantum-Ultra-610, part number 60199001.

Specifications

Part Number: 60-1990-01

Manufacturer: Extron

Condition: New

"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600, 19200, 38400, 115200 baud

Chroma sampling1: 4:4:4 or 4:2:2

Color bit depth1: 8 or 10 bits per color

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Connector: 1 female HDMI

Connectors: 4 female HDMI

Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)

Cooling: Fans, right to left (as viewed from the front panel)

Data rate: Up to 15.7 Gbps per channel

Digital pixel data bit depth: 8 or 10 bits per channel

Digital sampling: 24-bit, 8 bits per color, 165 MHz pixel clock maximum

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T

Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off

Ethernet ports: 2 female RJ-45

Everlast power supply warranty: 7 years

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, or 60 fps

Horizontal frequency: 15 kHz to 135 kHz

HyperLane expansion limit: 5 chassis

IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Inputs 1 and 3: 165 MHz

Inputs 2 and 4: 300 MHz

Latency: 1.0 second maximum

Max. video data rate: 10.2 Gbps (3.4 Gbps per color) per connection

Maximum average bit rates: 25 Mbps per stream (1 second average)

Maximum pixel clock: Outputs 1 and 3: 165 MHz Outputs 2 and 4: 300 MHz

Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS

Number/signal type: HDMI/DVI (HDCP 1.4 compliant)

Peripheral device power: 250 mA per output

Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd

Product warranty: 3 years parts and labor

Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™)Telnet

Protocol: 6 - 8 data bits 1 or 2 stop bits no parity (default), even or odd parity flow control = XON, XOFF, none

Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP

Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP

Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)

Quantum Ultra 610: Internal, primary and redundant*, hot-swappable Input: (2*) 100-240 VAC, 50-60 Hz *A redundant power supply is standard.

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, KC, PSE, RoHs, and WEEE

Remote power capability: OUT4DTP supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBaseT modes)

Resolution range: 640x480 to 3840x2400* 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 4096x2160* *4K resolutions are supported up to 30 Hz refresh rate. 4K at 60 Hz is supported using two or four parallel connections.

Resolutions: 640x480 to 1920x1200

Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536*, 2560x1080*, 2560x1440*, 2560x1600*, 3840x2400*, 4096x2400**, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160*, 4096x2160* *Supported on connectors 2 and 4 only **Requires 4 parallel connections.

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel

Signal Type: DVI 1.0, HDMI 1.4, and HDCP 1.4

Source rates: 480p to 1920x1080p @ 60 Hz

Standards: DVI 1.0, HDMI 1.4, HDCP 1.4

Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)

Termination standard: TIA/EIA T568B

Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)

USB control port: 1 female USB mini-B on rear panel

USB control ports: 3 USB type A

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vertical frequency: 24 Hz to 120 Hz

Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG
