Manufacturer: Extron | Model: Quantum IN4HDMI | Part number: 70-1117-01 (also written 7011701)
The Extron Quantum IN4HDMI, part number 70-1117-01, is a four-channel HDMI input card for the Quantum Ultra II 610 and 305 card frames. It accepts one 4K/60 HDMI signal, two 4K/30 signals, or four 2K signals simultaneously, feeding the 500 Gbps HyperLane video bus for placement on any canvas in the videowall. This standard variant differs from the IN4HDMI 4K PLUS in that it supports one 4K/60 input rather than four. The card occupies one slot in either the 6U 10-slot 610 frame or the 3U 5-slot 305 frame.
Specifications
Specifications
Part Number: 70-1117-01
Manufacturer: Extron
Condition: New
"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing
Audio format: Uncompressed, 24-bit, 48 kHz
Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)
Baud rates: 9600, 19200, 38400, 115200 baud
Chroma sampling1: 4:4:4 or 4:2:2
Color bit depth1: 8 or 10 bits per color
Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)
Connector: 1 female HDMI
Connectors: 4 female HDMI
Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)
Cooling: Fans, air flows from right to left (as viewed from the front panel)
Data rate: 10 Gbps (1 SFP) or 20 Gbps (2 SFPs)
Digital pixel data bit depth: 8 or 10 bits per channel
Digital resolution range: 640 x 480 to 4096 x 2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Digital sampling: 8 or 10 bits per color
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T
Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off
Ethernet ports: 2 female RJ-45
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50, or 60 fps
Horizontal frequency: 15 kHz to 270 kHz
HyperLane expansion limit: 5 chassis
IN4DTP3: 4 female HDMI or 4 female RJ-45
IN4DTP3 / OUT4DTP3: Supports up to four DTP or DTP3 endpoints if 72 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

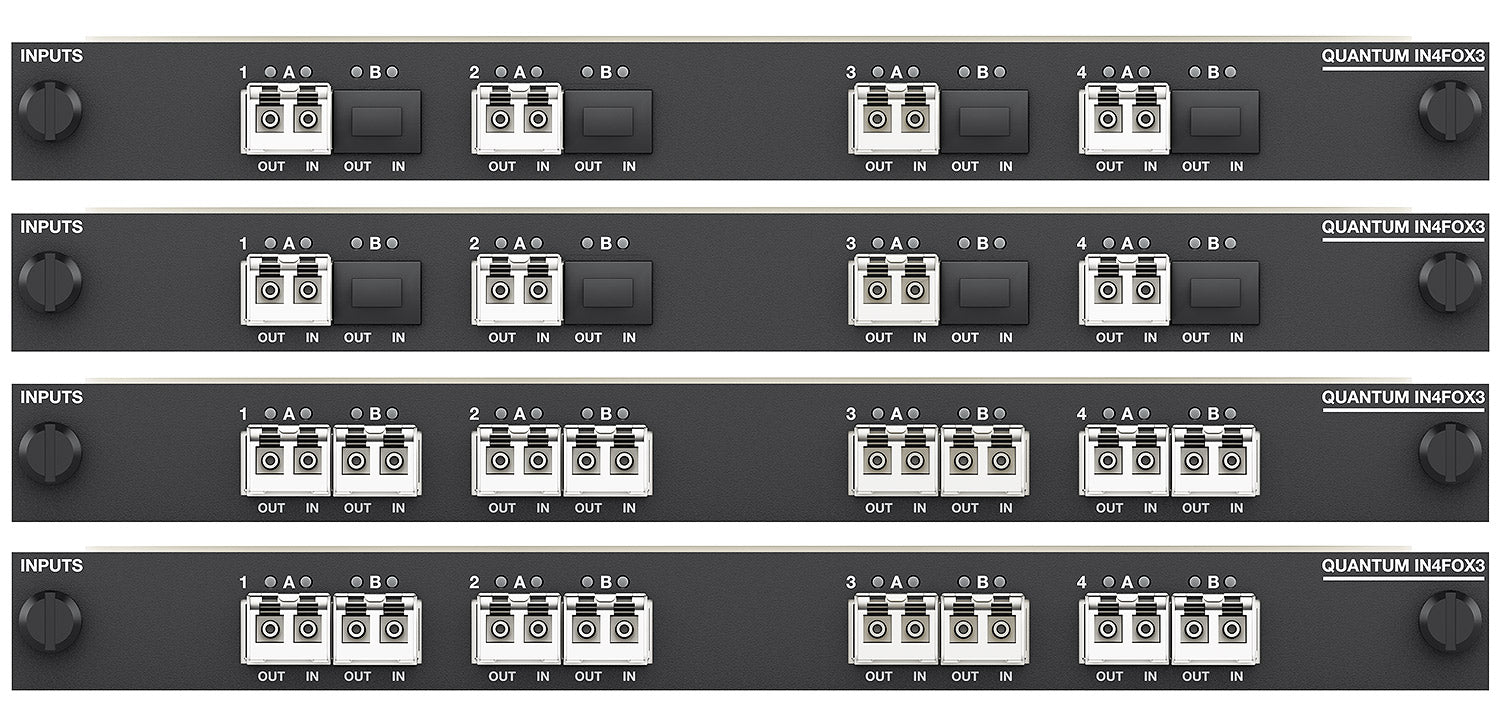

IN4FOX3: 1 or 2 fiber optic SFP modules per input (4 inputs per card)
IN4FOX3, OUT4FOX3, OUT32AT: LPCM 2.0, up to 24-bit/48 kHz
IN4HDMI 4K PLUS: 4 HDMI embedded
IN4HDMI 4K PLUS, OUT4HDMI 4K PLUS, IN4DTP3, OUT4DTP3: LPCM up to 7.2/24-bit/192 KHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital ES, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
Inputs 1 and 3: 165 MHz
Inputs 2 and 4: 300 MHz
Latency: 1.0 second maximum
Max. video data rate: 18 Gbps (6 Gbps per color) per connection
Maximum average bit rates: 25 Mbps per stream (1 second average)
Maximum pixel clock: 600 MHz
Maximum pixel clock (inputs 1-4): 600 MHz
Maximum pixel clock (outputs 1-4): 600 MHz
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS
Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode
North America: Input: 120 VAC, 50-60 Hz, 20 A Input: 240 VAC, 50-60 Hz, 15 A
Number/signal type: 4 HDMI/DVI
Number/type: 1 or 2 SFPs
OUT32AT: 64 Dante transmit channels (32 stereo pairs)
OUT4DTP: Supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).
OUT4DTP3: 4 HDMI embedded or DTP3/XTP/HDBT (selectable)
OUT4FOX3: 1 or 2 fiber optic SFP modules per output (4 outputs per card)
OUT4HDMI 4K PLUS: 4 HDMI embedded
Other regions: Input: 100-120 VAC, 50-60 Hz, minimum 15 A Input: 200-240 VAC, 50-60 Hz, minimum 7 A
Outputs: 64 channel Tx (32 stereo pairs)
Peripheral device power: 250 mA per output
Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd
Product warranty: 3 years parts and labor
Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™) Extron Express Mobile Software (EMS) Telnet
Protocol: 6 - 8 data bits 1 or 2 stop bits No parity (default), even or odd parity Flow control = XON, XOFF, none
Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP
Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP
Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)

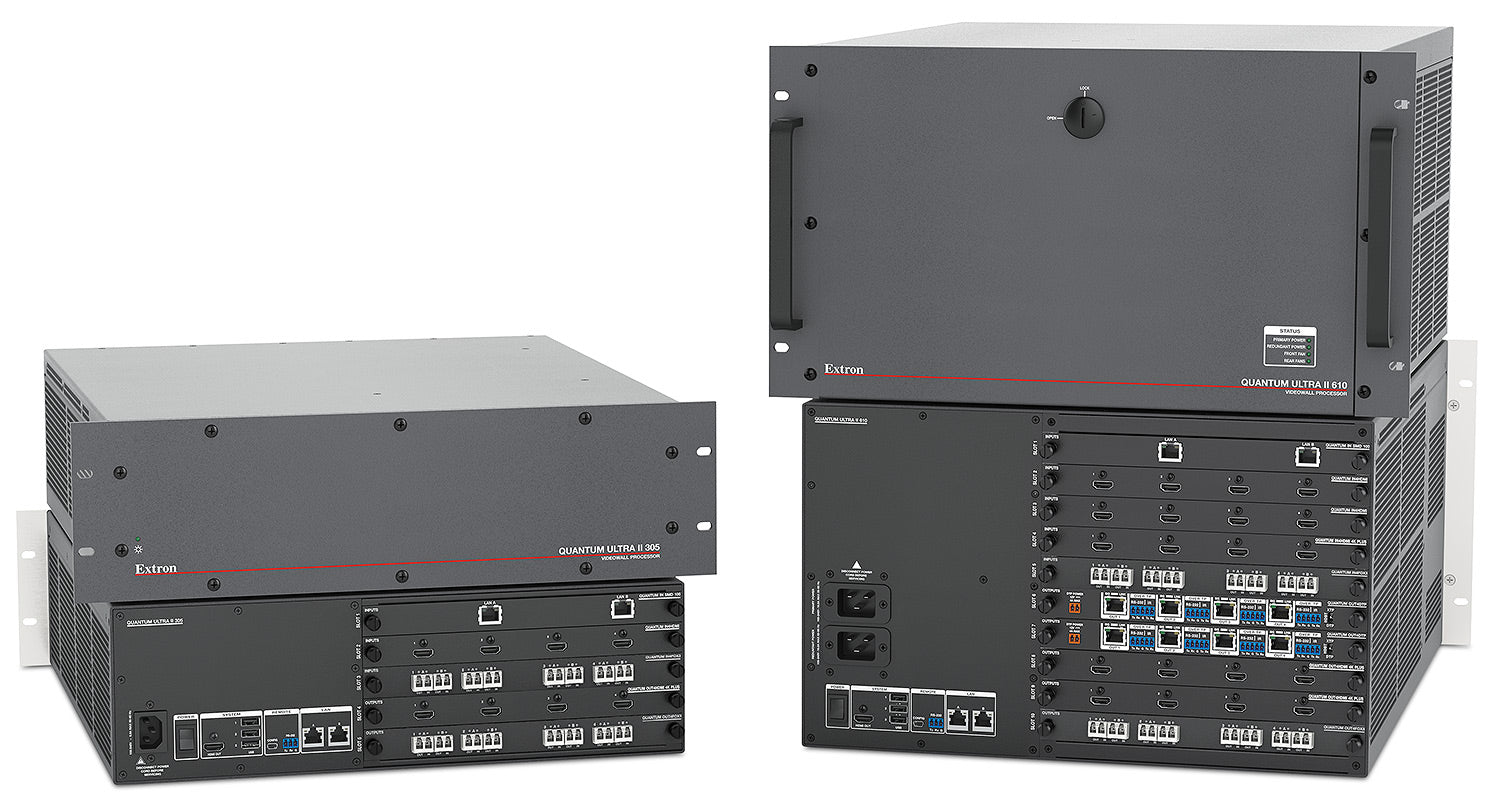

Quantum Ultra II 610: Internal (IEC 60320 C20 inlet), primary and redundant*, hot-swappable *A redundant power supply is standard.
Rack mount: Yes
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, PSE, VCCI, RoHs, and WEEE
Resolution range: 640x480 to 4096x2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Resolutions: 640x480 to 1920x1200
Scaled resolution: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel
Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source rates: 480p to 1920x1080p @ 60 Hz
Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)
Termination standard: TIA/EIA T568B
Transmission type: Dante/AES-67, software selectable
Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)
USB control port: 1 female USB mini-B on rear panel
USB control ports: 3 USB type A
USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)
USB standards: USB 2.0, USB 1.1, USB 1.0 compatible
Vertical frequency: 24 Hz to 240 Hz
Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG
Diagram
Diagram
Resources
Resources
Brochure | Quantum IN4HDMI 70-1117-01 | Everlast Power Supplies
Brochure | Quantum IN4HDMI 70-1117-01 | Express Mobile Software Quantum Ultra
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (quantum-ultra-2-bro-revB2.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Alimentatori Everlast
Brochure | Quantum IN4HDMI 70-1117-01 | Certificación Quantum Ultra
Brochure | Quantum IN4HDMI 70-1117-01 | Everlast 电源
Brochure | Quantum IN4HDMI 70-1117-01 | Everlast-Netzteile
Brochure | Quantum IN4HDMI 70-1117-01 | Fuentes de alimentación Everlast
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_IT_RevB.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_SP_RevB.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_FR_RevB.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_JP_RevA1.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_GE_RevA1.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II (Quantum_Ultra_II_Rev_B_CN_Online.pdf)
Brochure | Quantum IN4HDMI 70-1117-01 | Quantum Ultra 认证
Brochure | Quantum IN4HDMI 70-1117-01 | Sources d'alimentation Everlast
Brochure | Quantum IN4HDMI 70-1117-01 | Сертификация Quantum Ultra
Manual | Quantum IN4HDMI 70-1117-01 | Quantum Ultra Expansion System Setup Guide
Manual | Quantum IN4HDMI 70-1117-01 | Quantum Ultra Ports, Protocols, and Licenses Guide
Manual | Quantum IN4HDMI 70-1117-01 | Quantum Ultra Series Setup Guide
Manual | Quantum IN4HDMI 70-1117-01 | Quantum Ultra Series User Guide
Specifications | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II
Panel Drawing | Quantum IN4HDMI 70-1117-01 | Quantum Ultra II
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Extron Quantum IN4HDMI 70-1117-01
Extron Quantum IN4HDMI 70-1117-01
Manufacturer: Extron
Type: Videowall Processors

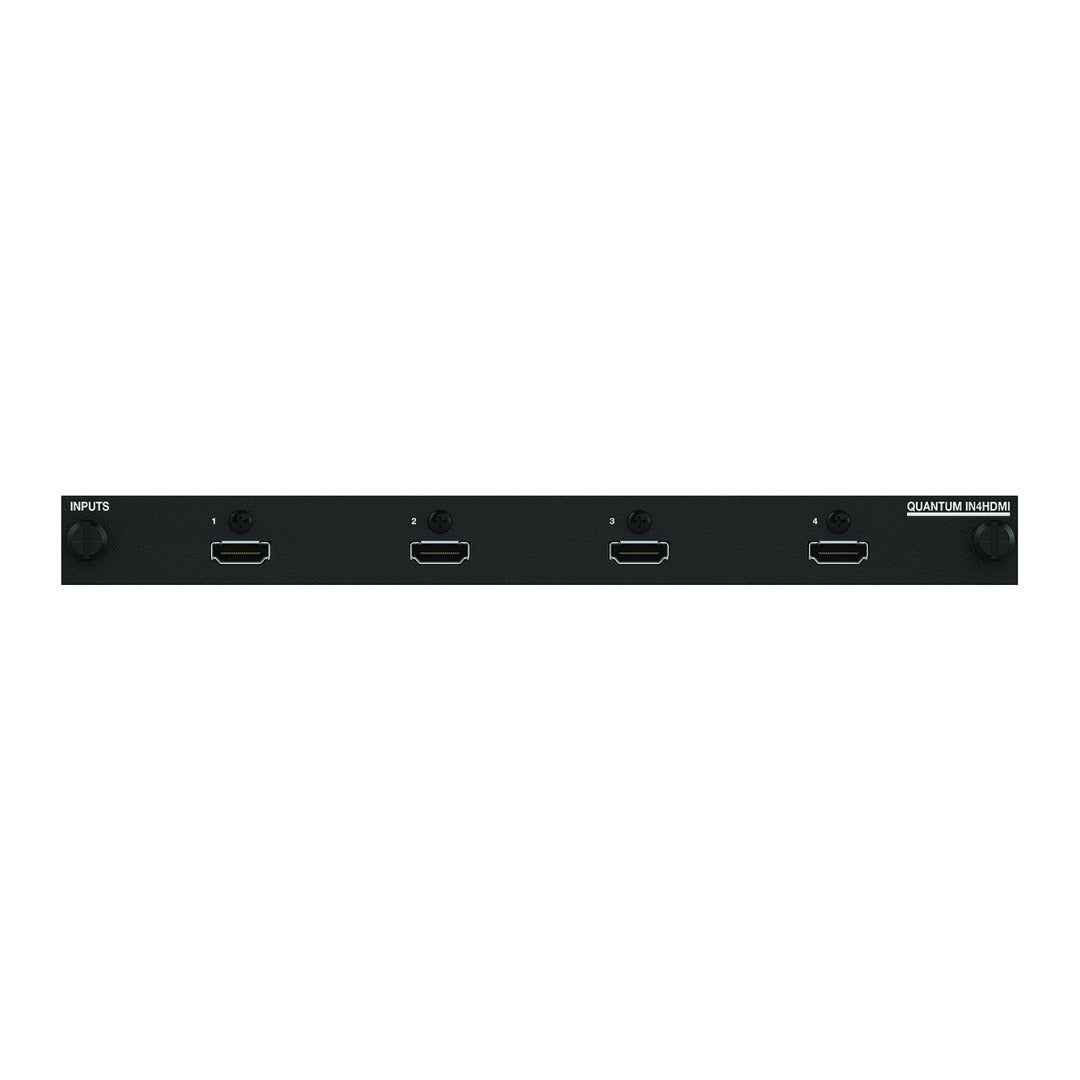

Extron Quantum IN4HDMI 70-1117-01 HDMI Input Card
- • HDMI input card for Quantum Ultra II 610 and 305 frames
- • Accepts one 4K/60, two 4K/30, or four 2K HDMI signals per card
- • Standard variant: one 4K/60 per card; see IN4HDMI 4K PLUS for four 4K/60 ports
- • One slot in the 6U 10-slot or 3U 5-slot Quantum Ultra II frame
- • 7-year Everlast power supply warranty on the host chassis

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron | Model: Quantum IN4HDMI | Part number: 70-1117-01 (also written 7011701)
The Extron Quantum IN4HDMI, part number 70-1117-01, is a four-channel HDMI input card for the Quantum Ultra II 610 and 305 card frames. It accepts one 4K/60 HDMI signal, two 4K/30 signals, or four 2K signals simultaneously, feeding the 500 Gbps HyperLane video bus for placement on any canvas in the videowall. This standard variant differs from the IN4HDMI 4K PLUS in that it supports one 4K/60 input rather than four. The card occupies one slot in either the 6U 10-slot 610 frame or the 3U 5-slot 305 frame.
Specifications
Specifications
Part Number: 70-1117-01
Manufacturer: Extron
Condition: New
"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing
Audio format: Uncompressed, 24-bit, 48 kHz
Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)
Baud rates: 9600, 19200, 38400, 115200 baud
Chroma sampling1: 4:4:4 or 4:2:2
Color bit depth1: 8 or 10 bits per color
Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)
Connector: 1 female HDMI
Connectors: 4 female HDMI
Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)
Cooling: Fans, air flows from right to left (as viewed from the front panel)
Data rate: 10 Gbps (1 SFP) or 20 Gbps (2 SFPs)
Digital pixel data bit depth: 8 or 10 bits per channel
Digital resolution range: 640 x 480 to 4096 x 2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Digital sampling: 8 or 10 bits per color
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T
Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off
Ethernet ports: 2 female RJ-45
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50, or 60 fps
Horizontal frequency: 15 kHz to 270 kHz
HyperLane expansion limit: 5 chassis
IN4DTP3: 4 female HDMI or 4 female RJ-45
IN4DTP3 / OUT4DTP3: Supports up to four DTP or DTP3 endpoints if 72 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).
IN4FOX3: 1 or 2 fiber optic SFP modules per input (4 inputs per card)
IN4FOX3, OUT4FOX3, OUT32AT: LPCM 2.0, up to 24-bit/48 kHz
IN4HDMI 4K PLUS: 4 HDMI embedded
IN4HDMI 4K PLUS, OUT4HDMI 4K PLUS, IN4DTP3, OUT4DTP3: LPCM up to 7.2/24-bit/192 KHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital ES, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
Inputs 1 and 3: 165 MHz
Inputs 2 and 4: 300 MHz
Latency: 1.0 second maximum
Max. video data rate: 18 Gbps (6 Gbps per color) per connection
Maximum average bit rates: 25 Mbps per stream (1 second average)
Maximum pixel clock: 600 MHz
Maximum pixel clock (inputs 1-4): 600 MHz
Maximum pixel clock (outputs 1-4): 600 MHz
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS
Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode
North America: Input: 120 VAC, 50-60 Hz, 20 A Input: 240 VAC, 50-60 Hz, 15 A
Number/signal type: 4 HDMI/DVI
Number/type: 1 or 2 SFPs
OUT32AT: 64 Dante transmit channels (32 stereo pairs)
OUT4DTP: Supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).
OUT4DTP3: 4 HDMI embedded or DTP3/XTP/HDBT (selectable)
OUT4FOX3: 1 or 2 fiber optic SFP modules per output (4 outputs per card)
OUT4HDMI 4K PLUS: 4 HDMI embedded
Other regions: Input: 100-120 VAC, 50-60 Hz, minimum 15 A Input: 200-240 VAC, 50-60 Hz, minimum 7 A
Outputs: 64 channel Tx (32 stereo pairs)
Peripheral device power: 250 mA per output
Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd
Product warranty: 3 years parts and labor
Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™) Extron Express Mobile Software (EMS) Telnet
Protocol: 6 - 8 data bits 1 or 2 stop bits No parity (default), even or odd parity Flow control = XON, XOFF, none
Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP
Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP
Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)
Quantum Ultra II 610: Internal (IEC 60320 C20 inlet), primary and redundant*, hot-swappable *A redundant power supply is standard.
Rack mount: Yes
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, PSE, VCCI, RoHs, and WEEE
Resolution range: 640x480 to 4096x2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Resolutions: 640x480 to 1920x1200
Scaled resolution: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel
Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source rates: 480p to 1920x1080p @ 60 Hz
Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)
Termination standard: TIA/EIA T568B
Transmission type: Dante/AES-67, software selectable
Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)
USB control port: 1 female USB mini-B on rear panel
USB control ports: 3 USB type A
USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)
USB standards: USB 2.0, USB 1.1, USB 1.0 compatible
Vertical frequency: 24 Hz to 240 Hz
Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG
