Details

Manufacturer: Extron; Model: Quantum IN4DTP3; Part number: 70-1326-01 (also written 70132601)

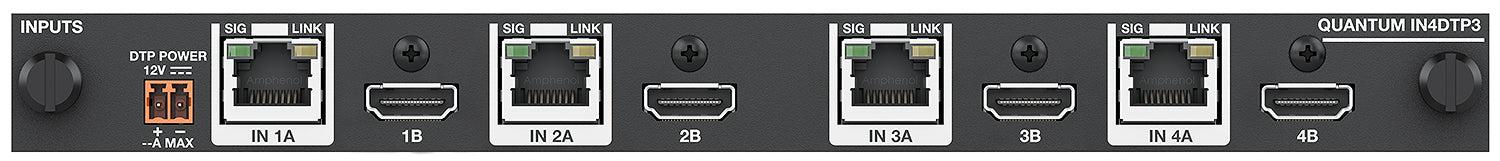

The Extron Quantum IN4DTP3 (70-1326-01) is a four-channel DTP3 input card for the Quantum Ultra II 610 and 305 card frames. Each of its four DTP3 ports receives HDMI, audio, power, and RS-232 from a remote DTP3 transmitter over shielded CAT 6A at up to 330 ft at 1080p or 4K/30, or 150 ft at 4K/60. Signals up to 4K/60 4:4:4 feed the 500 Gbps HyperLane bus for multi-canvas videowall display.

Key capabilities

Four DTP3 input ports, each accepting 4K/60 4:4:4 from remote transmitters over CAT 6A
DTP3 extension: 330 ft at 1080p/4K/30 or 150 ft at 4K/60 on shielded CAT 6A
Carries HDMI video, audio, power, and RS-232 per DTP3 port

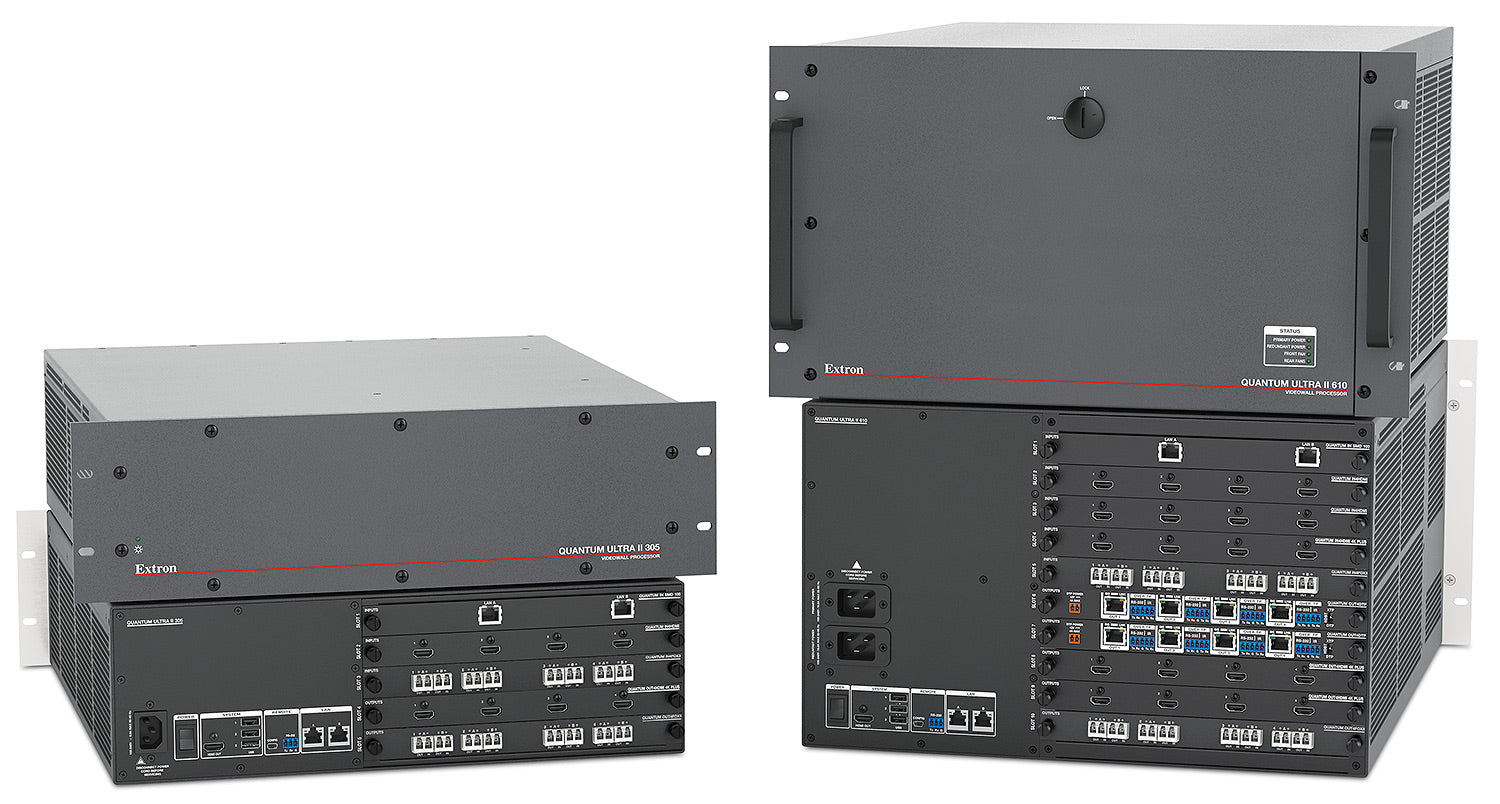

Compatible with Quantum Ultra II 610 (10-slot) and 305 (5-slot) frames
Feeds the 500 Gbps HyperLane bus for real-time multi-canvas display

Where it is used

Videowalls where sources are located away from the chassis and need to reach it over twisted pair, such as distributed command centers and multi-room control facilities.

Specifications at a glance

Ports: 4 x DTP3 (shielded CAT 6A)
Max distance: 330 ft at 1080p, 150 ft at 4K/60
Frame compatibility: Quantum Ultra II 610 and 305
Warranty: 7-year Everlast on host chassis

Frequently asked questions about the Extron Quantum IN4DTP3

Does Ampronix sell the Extron Quantum IN4DTP3?

Yes. Ampronix is an authorized Extron distributor and sells the Extron Quantum IN4DTP3 (70-1326-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron Quantum IN4DTP3?

Yes. Ampronix provides sales, replacement and exchange for the Extron Quantum IN4DTP3. Call Ampronix for a quote.

Is the Extron Quantum IN4DTP3 listed under other names?

Yes. The Extron Quantum IN4DTP3 is also referenced as Extron QuantumIN4DTP3, Quantum-IN4DTP3, part number 70132601.

What are the key features of the Extron Quantum IN4DTP3?

Key points: Four DTP3 input ports, each accepting 4K/60 4:4:4 from remote transmitters over CAT 6A; DTP3 extension: 330 ft at 1080p/4K/30 or 150 ft at 4K/60 on shielded CAT 6A; Carries HDMI video, audio, power, and RS-232 per DTP3 port; Compatible with Quantum Ultra II 610 (10-slot) and 305 (5-slot) frames. Call Ampronix to confirm details for your application.

Also referenced as Extron QuantumIN4DTP3, Quantum-IN4DTP3, part number 70132601.

Specifications

Part Number: 70-1326-01

Manufacturer: Extron

Condition: New

"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing

Audio format: Uncompressed, 24-bit, 48 kHz

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600, 19200, 38400, 115200 baud

Chroma sampling1: 4:4:4 or 4:2:2

Color bit depth1: 8 or 10 bits per color

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Connector: 1 female HDMI

Connectors: 4 female HDMI

Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)

Cooling: Fans, air flows from right to left (as viewed from the front panel)

Data rate: 10 Gbps (1 SFP) or 20 Gbps (2 SFPs)

Digital pixel data bit depth: 8 or 10 bits per channel

Digital resolution range: 640 x 480 to 4096 x 2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160

Digital sampling: 8 or 10 bits per color

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T

Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off

Ethernet ports: 2 female RJ-45

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, or 60 fps

Horizontal frequency: 15 kHz to 270 kHz

HyperLane expansion limit: 5 chassis

IN4DTP3: 4 female HDMI or 4 female RJ-45

IN4DTP3 / OUT4DTP3: Supports up to four DTP or DTP3 endpoints if 72 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

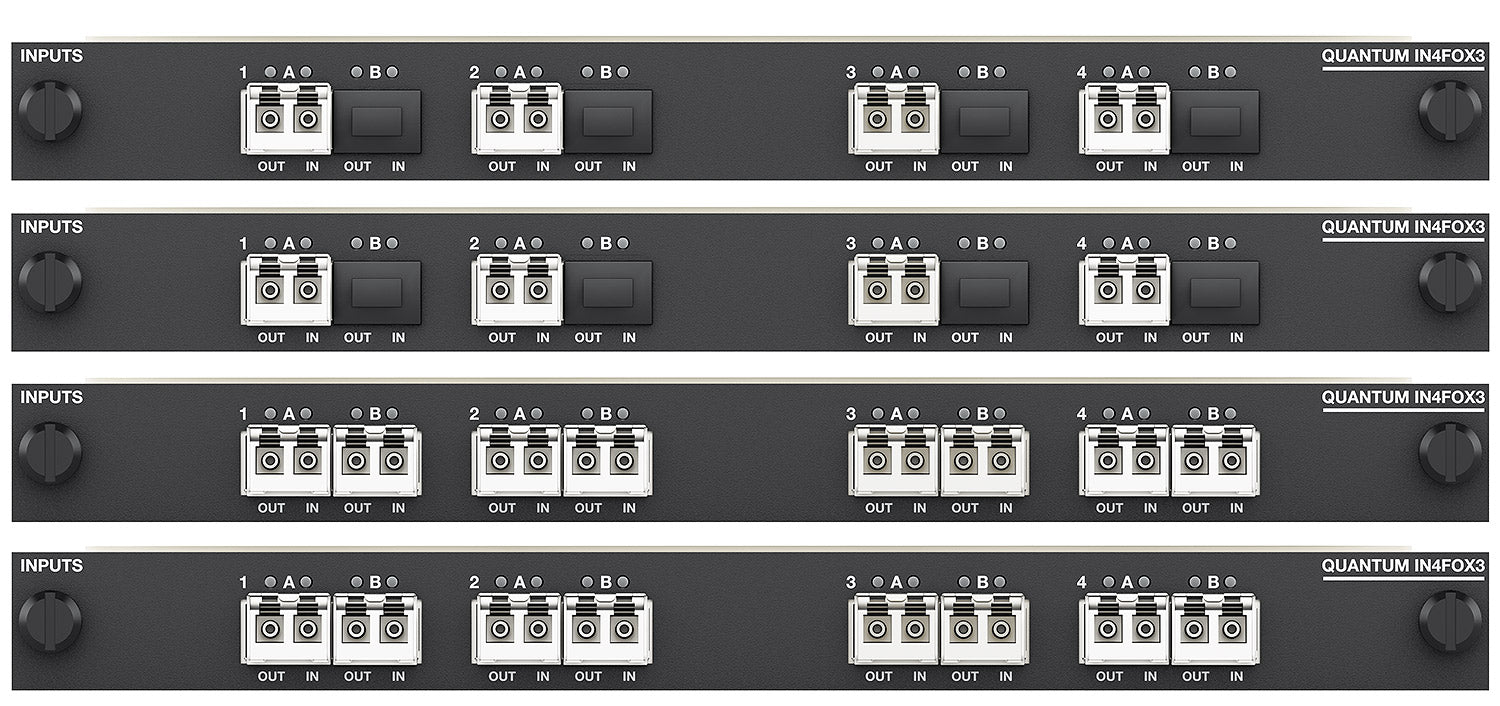

IN4FOX3: 1 or 2 fiber optic SFP modules per input (4 inputs per card)

IN4FOX3, OUT4FOX3, OUT32AT: LPCM 2.0, up to 24-bit/48 kHz

IN4HDMI 4K PLUS: 4 HDMI embedded

IN4HDMI 4K PLUS, OUT4HDMI 4K PLUS, IN4DTP3, OUT4DTP3: LPCM up to 7.2/24-bit/192 KHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital ES, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel

IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Inputs 1 and 3: 165 MHz

Inputs 2 and 4: 300 MHz

Latency: 1.0 second maximum

Max. video data rate: 18 Gbps (6 Gbps per color) per connection

Maximum average bit rates: 25 Mbps per stream (1 second average)

Maximum pixel clock: 600 MHz

Maximum pixel clock (inputs 1-4): 600 MHz

Maximum pixel clock (outputs 1-4): 600 MHz

Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables

Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS

Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode

North America: Input: 120 VAC, 50-60 Hz, 20 A Input: 240 VAC, 50-60 Hz, 15 A

Number/signal type: 4 HDMI/DVI

Number/type: 1 or 2 SFPs

OUT32AT: 64 Dante transmit channels (32 stereo pairs)

OUT4DTP: Supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

OUT4DTP3: 4 HDMI embedded or DTP3/XTP/HDBT (selectable)

OUT4FOX3: 1 or 2 fiber optic SFP modules per output (4 outputs per card)

OUT4HDMI 4K PLUS: 4 HDMI embedded

Other regions: Input: 100-120 VAC, 50-60 Hz, minimum 15 A Input: 200-240 VAC, 50-60 Hz, minimum 7 A

Outputs: 64 channel Tx (32 stereo pairs)

Peripheral device power: 250 mA per output

Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd

Product warranty: 3 years parts and labor

Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™) Extron Express Mobile Software (EMS) Telnet

Protocol: 6 - 8 data bits 1 or 2 stop bits No parity (default), even or odd parity Flow control = XON, XOFF, none

Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP

Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP

Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)

Quantum Ultra II 610: Internal (IEC 60320 C20 inlet), primary and redundant*, hot-swappable *A redundant power supply is standard.

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, PSE, VCCI, RoHs, and WEEE

Resolution range: 640x480 to 4096x2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160

Resolutions: 640x480 to 1920x1200

Scaled resolution: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160

Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel

Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Source rates: 480p to 1920x1080p @ 60 Hz

Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)

Termination standard: TIA/EIA T568B

Transmission type: Dante/AES-67, software selectable

Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)

USB control port: 1 female USB mini-B on rear panel

USB control ports: 3 USB type A

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vertical frequency: 24 Hz to 240 Hz

Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG

Diagram
