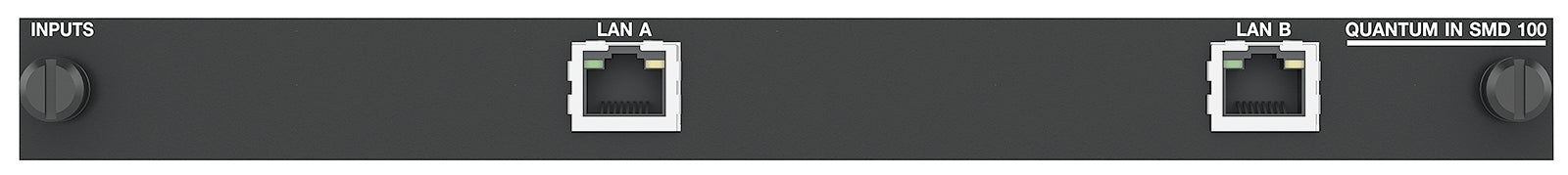

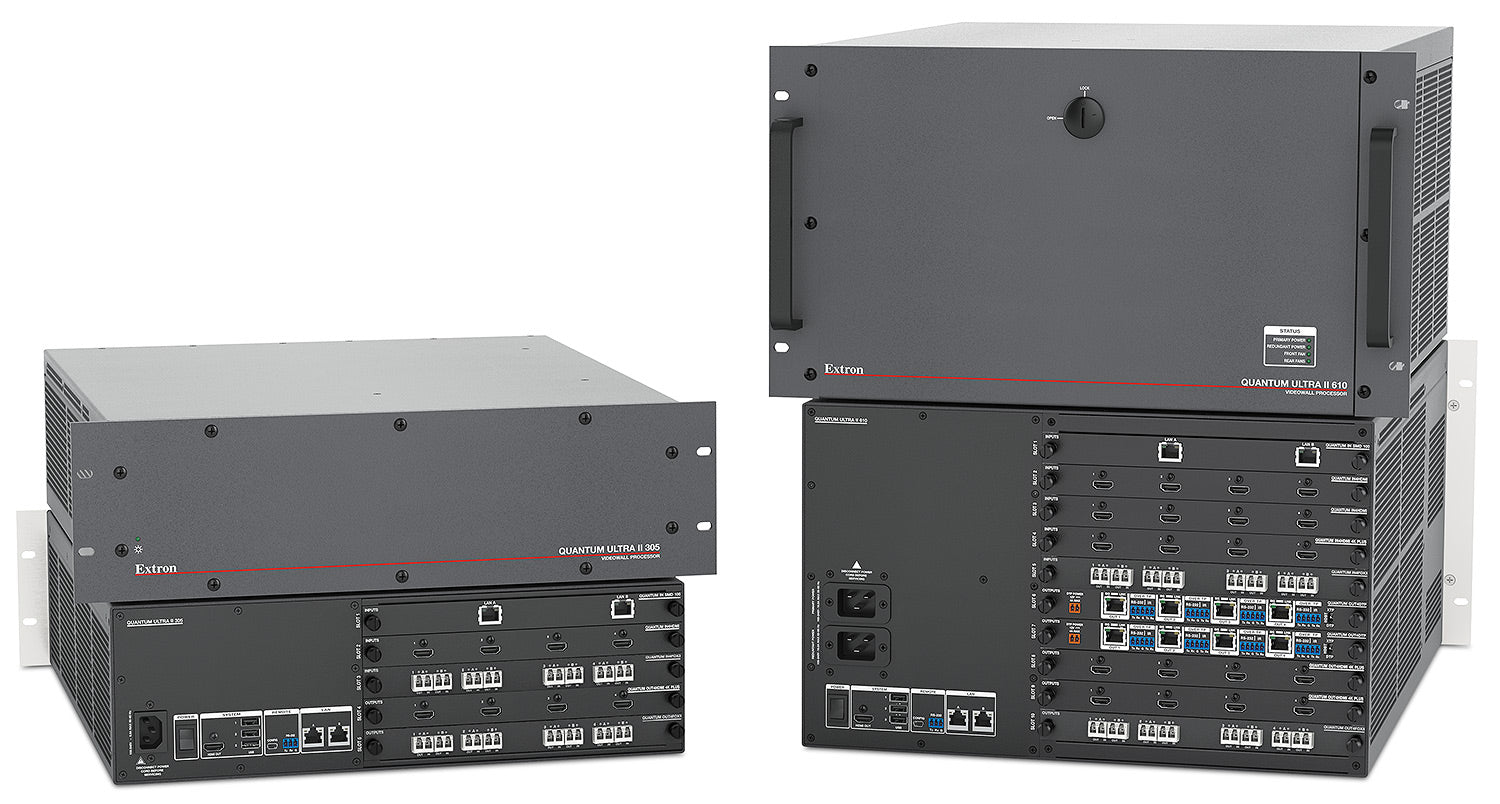

Part Number: 70-1232-01
Manufacturer: Extron
Condition: New
"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing
Audio format: Uncompressed, 24-bit, 48 kHz
Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)
Baud rates: 9600, 19200, 38400, 115200 baud
Chroma sampling1: 4:4:4 or 4:2:2
Color bit depth1: 8 or 10 bits per color
Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)
Connector: 1 female HDMI
Connectors: 4 female HDMI
Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)
Cooling: Fans, air flows from right to left (as viewed from the front panel)
Data rate: 10 Gbps (1 SFP) or 20 Gbps (2 SFPs)
Digital pixel data bit depth: 8 or 10 bits per channel
Digital resolution range: 640 x 480 to 4096 x 2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Digital sampling: 8 or 10 bits per color
Enclosure type: Metal
Ethernet data rate: 10/100/1000Base-T
Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off
Ethernet ports: 2 female RJ-45
Everlast power supply warranty: 7 years parts and labor
Formats: RGB and YCbCr digital video
Frame rate: 24, 25, 30, 50, or 60 fps
Horizontal frequency: 15 kHz to 270 kHz
HyperLane expansion limit: 5 chassis
IN4DTP3: 4 female HDMI or 4 female RJ-45
IN4DTP3 / OUT4DTP3: Supports up to four DTP or DTP3 endpoints if 72 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

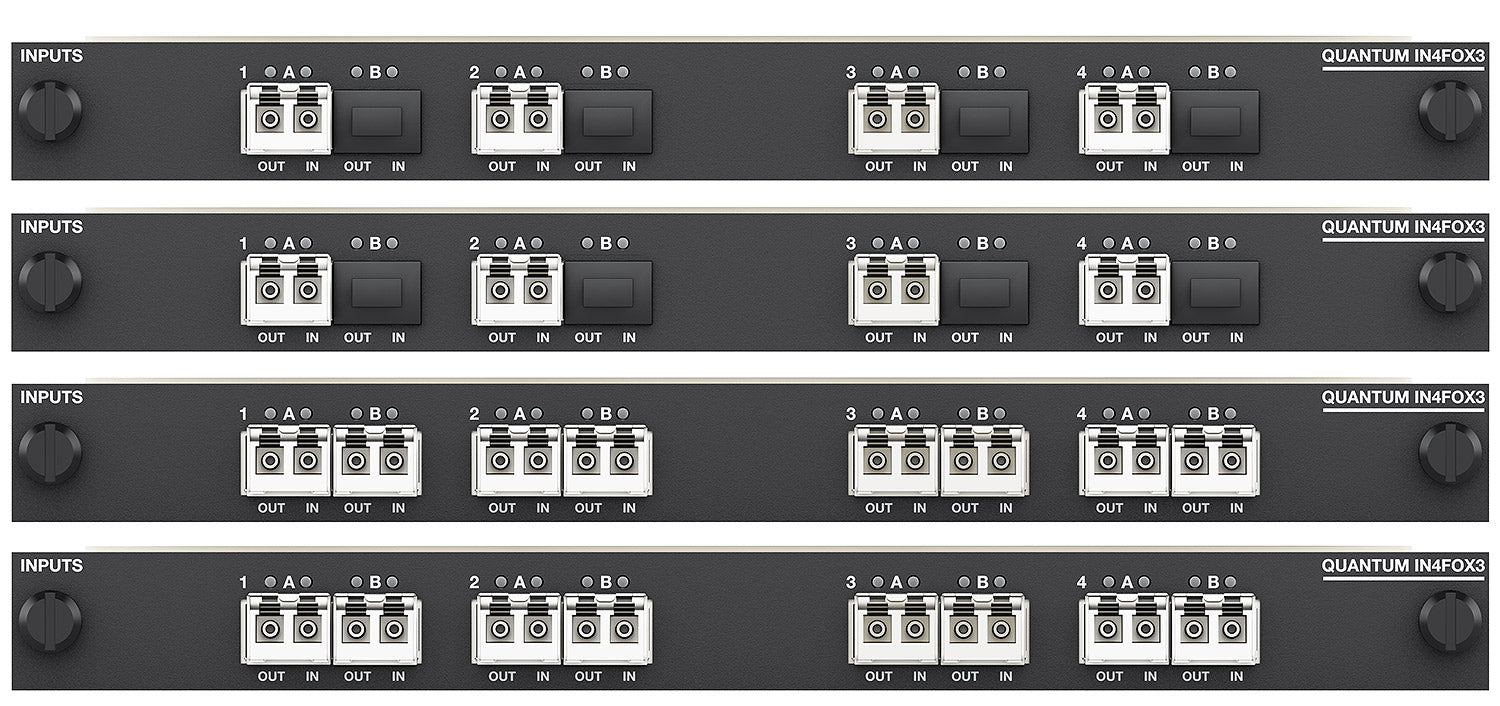

IN4FOX3: 1 or 2 fiber optic SFP modules per input (4 inputs per card)
IN4FOX3, OUT4FOX3, OUT32AT: LPCM 2.0, up to 24-bit/48 kHz
IN4HDMI 4K PLUS: 4 HDMI embedded
IN4HDMI 4K PLUS, OUT4HDMI 4K PLUS, IN4DTP3, OUT4DTP3: LPCM up to 7.2/24-bit/192 KHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital ES, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx
IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
Inputs 1 and 3: 165 MHz
Inputs 2 and 4: 300 MHz
Latency: 1.0 second maximum
Max. video data rate: 18 Gbps (6 Gbps per color) per connection
Maximum average bit rates: 25 Mbps per stream (1 second average)
Maximum pixel clock: 600 MHz
Maximum pixel clock (inputs 1-4): 600 MHz
Maximum pixel clock (outputs 1-4): 600 MHz
Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables
Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS
Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode
North America: Input: 120 VAC, 50-60 Hz, 20 A Input: 240 VAC, 50-60 Hz, 15 A
Number/signal type: 4 HDMI/DVI
Number/type: 1 or 2 SFPs
OUT32AT: 64 Dante transmit channels (32 stereo pairs)
OUT4DTP: Supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).
OUT4DTP3: 4 HDMI embedded or DTP3/XTP/HDBT (selectable)
OUT4FOX3: 1 or 2 fiber optic SFP modules per output (4 outputs per card)
OUT4HDMI 4K PLUS: 4 HDMI embedded
Other regions: Input: 100-120 VAC, 50-60 Hz, minimum 15 A Input: 200-240 VAC, 50-60 Hz, minimum 7 A
Outputs: 64 channel Tx (32 stereo pairs)
Peripheral device power: 250 mA per output
Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd
Product warranty: 3 years parts and labor
Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™) Extron Express Mobile Software (EMS) Telnet
Protocol: 6 - 8 data bits 1 or 2 stop bits No parity (default), even or odd parity Flow control = XON, XOFF, none
Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP
Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP
Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)
Quantum Ultra II 610: Internal (IEC 60320 C20 inlet), primary and redundant*, hot-swappable *A redundant power supply is standard.
Rack mount: Yes
Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, PSE, VCCI, RoHs, and WEEE
Resolution range: 640x480 to 4096x2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160
Resolutions: 640x480 to 1920x1200
Scaled resolution: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160
Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd
Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel
Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Singlemode: 20 km (12.4 miles) with singlemode (SM) cables
Source rates: 480p to 1920x1080p @ 60 Hz
Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3
Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)
Termination standard: TIA/EIA T568B
Transmission type: Dante/AES-67, software selectable
Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)
USB control port: 1 female USB mini-B on rear panel
USB control ports: 3 USB type A
USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)
USB standards: USB 2.0, USB 1.1, USB 1.0 compatible
Vertical frequency: 24 Hz to 240 Hz
Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG
