Details

Manufacturer: Extron; Model: Quantum Expansion IN; Part number: 70-1270-01 (also written 70127001)

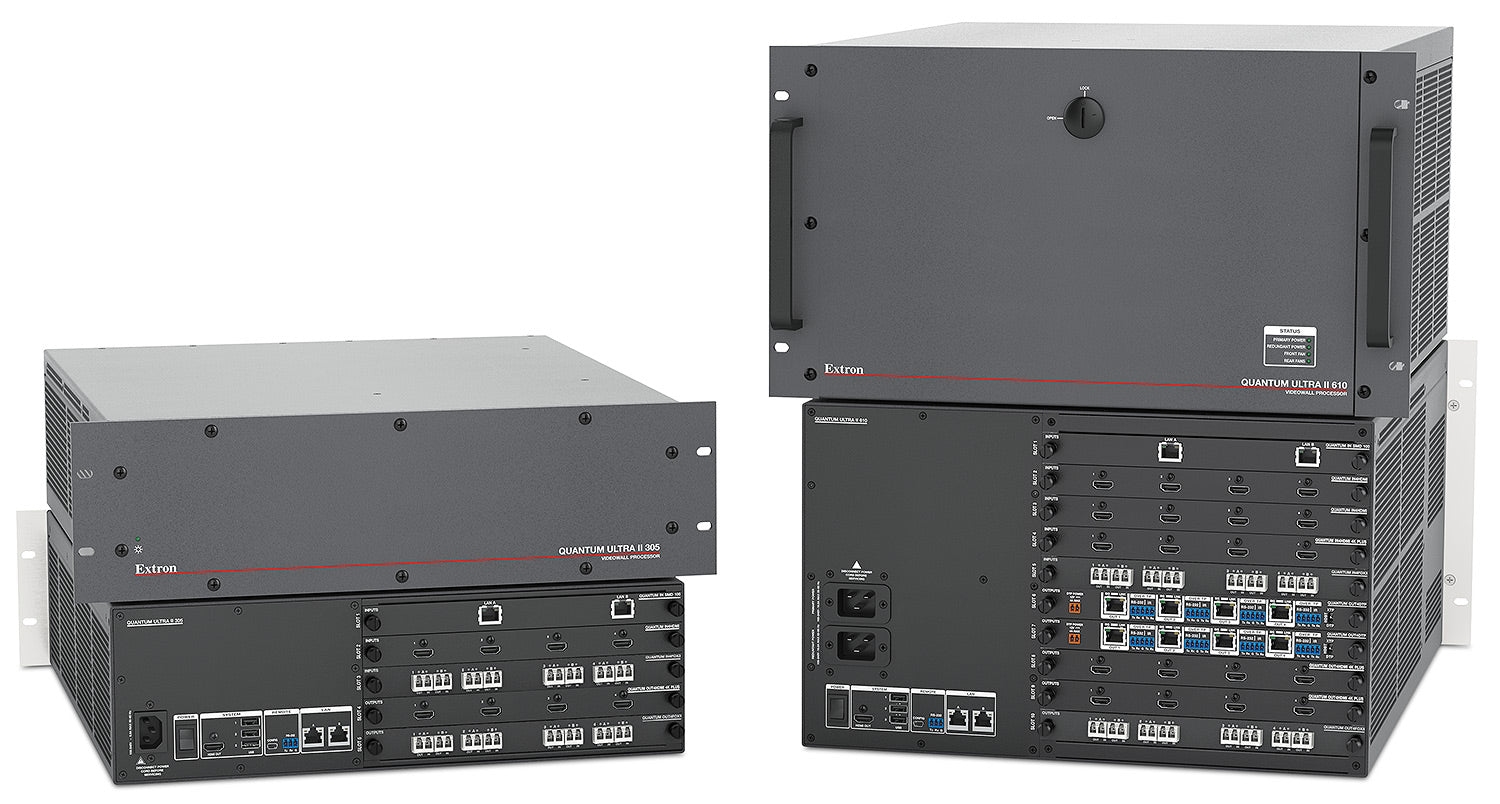

The Extron Quantum Expansion IN (70-1270-01) links a secondary Quantum Ultra II chassis to a primary chassis in a multi-frame videowall system, adding input card capacity. Installing this card in the secondary frame lets it receive signals from the primary over the HyperLane expansion link and contribute its input cards to the combined system. Up to five Quantum Ultra II 610 or 305 chassis can be linked, scaling to a maximum of 42 combined input and output cards under single management.

Key capabilities

Links a secondary Quantum Ultra II frame to the primary for multi-frame expansion
Adds the secondary frame's input card capacity to the combined system
Up to 5 linked chassis, up to 42 combined input and output cards total
500 Gbps HyperLane bus supports 8K/60 quad-path signals across the expansion link
Compatible with Quantum Ultra II 610 and 305 frames

Where it is used

Very large videowalls and mission-critical command centers where the input count of a single Quantum Ultra II 610 chassis is insufficient and additional frames are linked to scale capacity.

Specifications at a glance

Fiber connectors: 4 x LC per card
Max linked chassis: 5 (including primary)
Frame compatibility: Quantum Ultra II 610 and 305
Warranty: 7-year Everlast on host chassis

Frequently asked questions about the Extron Quantum Expansion IN

Does Ampronix sell the Extron Quantum Expansion IN?

Yes. Ampronix is an authorized Extron distributor and sells the Extron Quantum Expansion IN (70-1270-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron Quantum Expansion IN?

Yes. Ampronix provides sales, replacement and exchange for the Extron Quantum Expansion IN. Call Ampronix for a quote.

Is the Extron Quantum Expansion IN listed under other names?

Yes. The Extron Quantum Expansion IN is also referenced as Extron QuantumExpansionIN, Quantum-Expansion-IN, part number 70127001.

What are the key features of the Extron Quantum Expansion IN?

Key points: Links a secondary Quantum Ultra II frame to the primary for multi-frame expansion; Adds the secondary frame's input card capacity to the combined system; Up to 5 linked chassis, up to 42 combined input and output cards total; 500 Gbps HyperLane bus supports 8K/60 quad-path signals across the expansion link. Call Ampronix to confirm details for your application.

Also referenced as Extron QuantumExpansionIN, Quantum-Expansion-IN, part number 70127001.

Specifications

Part Number: 70-1270-01

Manufacturer: Extron

Condition: New

"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing

Audio format: Uncompressed, 24-bit, 48 kHz

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600, 19200, 38400, 115200 baud

Chroma sampling1: 4:4:4 or 4:2:2

Color bit depth1: 8 or 10 bits per color

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Connector: 1 female HDMI

Connectors: 4 female HDMI

Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)

Cooling: Fans, air flows from right to left (as viewed from the front panel)

Data rate: 10 Gbps (1 SFP) or 20 Gbps (2 SFPs)

Digital pixel data bit depth: 8 or 10 bits per channel

Digital resolution range: 640 x 480 to 4096 x 2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160

Digital sampling: 8 or 10 bits per color

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T

Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off

Ethernet ports: 2 female RJ-45

Everlast power supply warranty: 7 years parts and labor

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, or 60 fps

Horizontal frequency: 15 kHz to 270 kHz

HyperLane expansion limit: 5 chassis

IN4DTP3: 4 female HDMI or 4 female RJ-45

IN4DTP3 / OUT4DTP3: Supports up to four DTP or DTP3 endpoints if 72 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

IN4FOX3: 1 or 2 fiber optic SFP modules per input (4 inputs per card)

IN4FOX3, OUT4FOX3, OUT32AT: LPCM 2.0, up to 24-bit/48 kHz

IN4HDMI 4K PLUS: 4 HDMI embedded

IN4HDMI 4K PLUS, OUT4HDMI 4K PLUS, IN4DTP3, OUT4DTP3: LPCM up to 7.2/24-bit/192 KHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital ES, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel

IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Inputs 1 and 3: 165 MHz

Inputs 2 and 4: 300 MHz

Latency: 1.0 second maximum

Max. video data rate: 18 Gbps (6 Gbps per color) per connection

Maximum average bit rates: 25 Mbps per stream (1 second average)

Maximum pixel clock: 600 MHz

Maximum pixel clock (inputs 1-4): 600 MHz

Maximum pixel clock (outputs 1-4): 600 MHz

Multimode: 500 m (1640 feet) with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cables

Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS

Nominal peak wavelength: 850 nm for multimode, 1310 nm for singlemode

North America: Input: 120 VAC, 50-60 Hz, 20 A Input: 240 VAC, 50-60 Hz, 15 A

Number/signal type: 4 HDMI/DVI

Number/type: 1 or 2 SFPs

OUT32AT: 64 Dante transmit channels (32 stereo pairs)

OUT4DTP: Supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBT modes).

OUT4DTP3: 4 HDMI embedded or DTP3/XTP/HDBT (selectable)

OUT4FOX3: 1 or 2 fiber optic SFP modules per output (4 outputs per card)

OUT4HDMI 4K PLUS: 4 HDMI embedded

Other regions: Input: 100-120 VAC, 50-60 Hz, minimum 15 A Input: 200-240 VAC, 50-60 Hz, minimum 7 A

Outputs: 64 channel Tx (32 stereo pairs)

Peripheral device power: 250 mA per output

Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd

Product warranty: 3 years parts and labor

Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™) Extron Express Mobile Software (EMS) Telnet

Protocol: 6 - 8 data bits 1 or 2 stop bits No parity (default), even or odd parity Flow control = XON, XOFF, none

Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP

Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP

Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)

Quantum Ultra II 610: Internal (IEC 60320 C20 inlet), primary and redundant*, hot-swappable *A redundant power supply is standard.

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, KC, PSE, VCCI, RoHs, and WEEE

Resolution range: 640x480 to 4096x2400 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 3840x2160, 4096x2160

Resolutions: 640x480 to 1920x1200

Scaled resolution: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160

Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536, 2560x1080, 2560x1440, 2560x1600, 3840x2400, 4096x2400, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160, 4096x2160

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel

Signal Type: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Singlemode: 20 km (12.4 miles) with singlemode (SM) cables

Source rates: 480p to 1920x1080p @ 60 Hz

Standards: DVI 1.0, HDMI 1.4 and 2.0, HDCP 1.4 and 2.3

Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)

Termination standard: TIA/EIA T568B

Transmission type: Dante/AES-67, software selectable

Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)

USB control port: 1 female USB mini-B on rear panel

USB control ports: 3 USB type A

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vertical frequency: 24 Hz to 240 Hz

Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG

Diagram

Resources

Brochure | Quantum Expansion IN 70-1270-01 | Everlast Power Supplies

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software Quantum Ultra

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra Certified (quantum-ultra-certification-program_revA8.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (quantum-ultra-2-bro-revB2.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Alimentatori Everlast

Brochure | Quantum Expansion IN 70-1270-01 | Certificación Quantum Ultra

Brochure | Quantum Expansion IN 70-1270-01 | Everlast 电源

Brochure | Quantum Expansion IN 70-1270-01 | Everlast-Netzteile

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software - Quantum Ultra (EMS-Quantum-Ultra_BR_A4_SP_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software - Quantum Ultra (EMS-Quantum-Ultra_BR_A4_FR_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software - Quantum Ultra (EMS-Quantum-Ultra_BR_A4_GE_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software - Quantum Ultra (EMS-Quantum-Ultra_BR_A4_IT_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Express Mobile Software - Quantum Ultra (EMS-Quantum-Ultra_BR_A4_RU_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Fuentes de alimentación Everlast

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra Certified (Quantum-Ultra-Certif_BR_A4_FR_RevA7.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra Certified (Quantum-Ultra-Certif_BR_A4_GE_RevA7.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra Certified (Quantum-Ultra-Certif_BR_A4_IT_RevA7.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_IT_RevB.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_SP_RevB.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_FR_RevB.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_JP_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum-Ultra-II_BR_A4_GE_RevA1.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra II (Quantum_Ultra_II_Rev_B_CN_Online.pdf)

Brochure | Quantum Expansion IN 70-1270-01 | Quantum Ultra 认证

Brochure | Quantum Expansion IN 70-1270-01 | Sources d'alimentation Everlast

Brochure | Quantum Expansion IN 70-1270-01 | Сертификация Quantum Ultra

Manual | Quantum Expansion IN 70-1270-01 | Quantum Ultra Expansion System Setup Guide

Manual | Quantum Expansion IN 70-1270-01 | Quantum Ultra Ports, Protocols, and Licenses Guide

Manual | Quantum Expansion IN 70-1270-01 | Quantum Ultra Series Setup Guide

Manual | Quantum Expansion IN 70-1270-01 | Quantum Ultra Series User Guide

Specifications | Quantum Expansion IN 70-1270-01 | Quantum Ultra II

Panel Drawing | Quantum Expansion IN 70-1270-01 | Quantum Ultra II

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron Quantum Expansion IN 70-1270-01

Name: Extron Quantum Expansion IN 70-1270-01
Brand: Extron
SKU: EXTRON-QUANTUMEXPANSIONIN-70127001
Availability: InStock

Manufacturer: Extron

Type: Videowall Processors

Extron Quantum Expansion IN 70-1270-01

• Extron Quantum Expansion IN multi-chassis link card
• Up to 5 linked chassis, 42 combined I/O cards
• 500 Gbps HyperLane bus, 4 x LC per card
• Sales, replacement and exchange
• Part# 70-1270-01 / 70127001

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-QUANTUMEXPANSIONIN-70127001
