Details

Manufacturer: Extron | Model: Quantum 610 C Drive | Part number: 70-1198-01 (also written 70119801)

The Extron Quantum 610 C Drive (70-1198-01) is the hot-removable solid-state operating system drive for the Quantum 610 videowall processor chassis. It houses the OS and configuration data and mounts in the dedicated drive bay of the 610 frame. The drive can be removed without powering down the chassis, supporting security management policies that require drive extraction after a session ends. This part is for the Quantum 610 chassis only and is not compatible with Quantum Ultra or Ultra II frames.

Key capabilities

Hot-removable C-type OS drive for the Quantum 610 chassis
Drive extraction without powering down the chassis
Supports security policies requiring physical media removal after use
Compatible only with the Quantum 610 card frame (not Quantum Ultra or Ultra II)
Stores the operating system and processor configuration data

Where it is used

Secure facilities and government AV installations where physical drive extraction after a classified session is required by security policy.

Specifications at a glance

Compatible chassis: Quantum 610 only
Type: C-type (operating system drive)
Warranty: 3-year Extron parts and labor

Also referenced as Extron Quantum610CDrive, Quantum-610-C-Drive, part number 70119801.

Specifications

Part Number: 70-1198-01

Manufacturer: Extron

Condition: New

"Over TP" output: RS-232 via (4) 3.5 mm, 5-pole captive screw connectors (shared with IR ports)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +95 °F (0 to +35 °C) / 10% to 90%, noncondensing

Baud rate and protocol: 9600, 8-bit, 1 stop bit, no parity (default)

Baud rates: 9600, 19200, 38400, 115200 baud

Chroma sampling1: 4:4:4 or 4:2:2

Color bit depth1: 8 or 10 bits per color

Colors: 1.07 billion (10-bit processing with full 4:4:4 sampling)

Connector: 1 female HDMI

Connectors: 4 female HDMI

Container (if included): MPEG-2 TS (MPEG-2 part 1 or ISO/IEC 13818-1 or ITU-T Rec. H.222.0) MP4 (MPEG-4 part 14 or ISO/IEC 14496-14)

Cooling: Fans, right to left (as viewed from the front panel)

Data rate: Up to 15.7 Gbps per channel

Digital pixel data bit depth: 8 or 10 bits per channel

Digital sampling: 24-bit, 8 bits per color, 165 MHz pixel clock maximum

Enclosure type: Metal

Ethernet data rate: 10/100/1000Base-T

Ethernet default settings: Link speed and duplex level = autodetected LAN A IP address = 192.168.254.254 LAN B IP address = 192.168.1.254 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = Off

Ethernet ports: 2 female RJ-45

Everlast power supply warranty: 7 years

Formats: RGB and YCbCr digital video

Frame rate: 24, 25, 30, 50, or 60 fps

Horizontal frequency: 15 kHz to 135 kHz

HyperLane expansion limit: 5 chassis

IR control pin configuration: 3 = Gnd, 4 = IR Tx, 5 = IR Rx

IR pass-through control ports: TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz

Inputs 1 and 3: 165 MHz

Inputs 2 and 4: 300 MHz

Latency: 1.0 second maximum

Max. video data rate: 10.2 Gbps (3.4 Gbps per color) per connection

Maximum average bit rates: 25 Mbps per stream (1 second average)

Maximum pixel clock: Outputs 1 and 3: 165 MHz Outputs 2 and 4: 300 MHz

Network protocols: ARP, DHCP, DNS, HTTP, HTTPS, ICMP (ping), SSH, SSC, Telnet, TLS

Number/signal type: HDMI/DVI (HDCP 1.4 compliant)

Peripheral device power: 250 mA per output

Pin configurations: 1 = Tx, 2 = Rx, 3 = Gnd

Product warranty: 3 years parts and labor

Program control: Extron Videowall Configuration Software (VCS) for Windows® Extron Simple Instruction Set™ (SIS™)Telnet

Protocol: 6 - 8 data bits 1 or 2 stop bits no parity (default), even or odd parity flow control = XON, XOFF, none

Protocols: ARP, DHCP, DNS, HTTP, ICMP, NTP, SSH, SMTP, TCP/IP, Telnet, UDP/IP

Pull streams: RTP/RTCP (RFC 3550), RTSP (RFC 2326), interleaved RTSP (RTP/RTSP), RTP/RTSP tunneled through HTTP

Push streams: MPEG-2 TS/UDP (ISO/IEC 13818-1), MPEG-2 TS/RTP (RFC 2250), Direct RTP (RFC 3984)

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, KC, PSE, RoHs, and WEEE

Remote power capability: OUT4DTP supports up to four endpoints if 48 watts of power is provided on DTP POWER connector (remote power not available in XTP and HDBaseT modes)

Resolution range: 640x480 to 3840x2400* 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 2048x1080, 4096x2160* *4K resolutions are supported up to 30 Hz refresh rate. 4K at 60 Hz is supported using two or four parallel connections.

Resolutions: 640x480 to 1920x1200

Scaled resolutions: 1024x768, 1280x768, 1280x800,1280x1024, 1360x768, 1366x768, 1440x900, 1680x1050, 1600x1200, 1920x1200, 2048x1200, 2048x1536*, 2560x1080*, 2560x1440*, 2560x1600*, 3840x2400*, 4096x2400**, CUSTOM 720p, 1080p, 2048x1080, 1920x2160, 2048x2160, 3840x2160*, 4096x2160* *Supported on connectors 2 and 4 only **Requires 4 parallel connections.

Serial control pin configuration: 1 = Tx, 2 = Rx, 3 = Gnd

Serial control port: 1 RS-232 on 3-pole captive screw connector on rear panel

Signal Type: DVI 1.0, HDMI 1.4, and HDCP 1.4

Source rates: 480p to 1920x1080p @ 60 Hz

Standards: DVI 1.0, HDMI 1.4, HDCP 1.4

Stream discovery: SAP (RFC 2974), SDP (RFC 4145, RFC 4566)

Termination standard: TIA/EIA T568B

Transport: TCP, UDP, multicast IGMPv2 (RFC 2236), IGMPv3 (RFC 3376), SSM (RFC 3569, 4607), or unicast (pull streams only)

USB control port: 1 female USB mini-B on rear panel

USB control ports: 3 USB type A

USB data rates: Low speed (1.5 Mbps), full speed (12 Mbps)

USB standards: USB 2.0, USB 1.1, USB 1.0 compatible

Vertical frequency: 24 Hz to 120 Hz

Video coding: MPEG4 part 10 (AVC) H.264 BP, MP, HiP to level 4.2 (<25 Mbps over 1 second), MJPEG

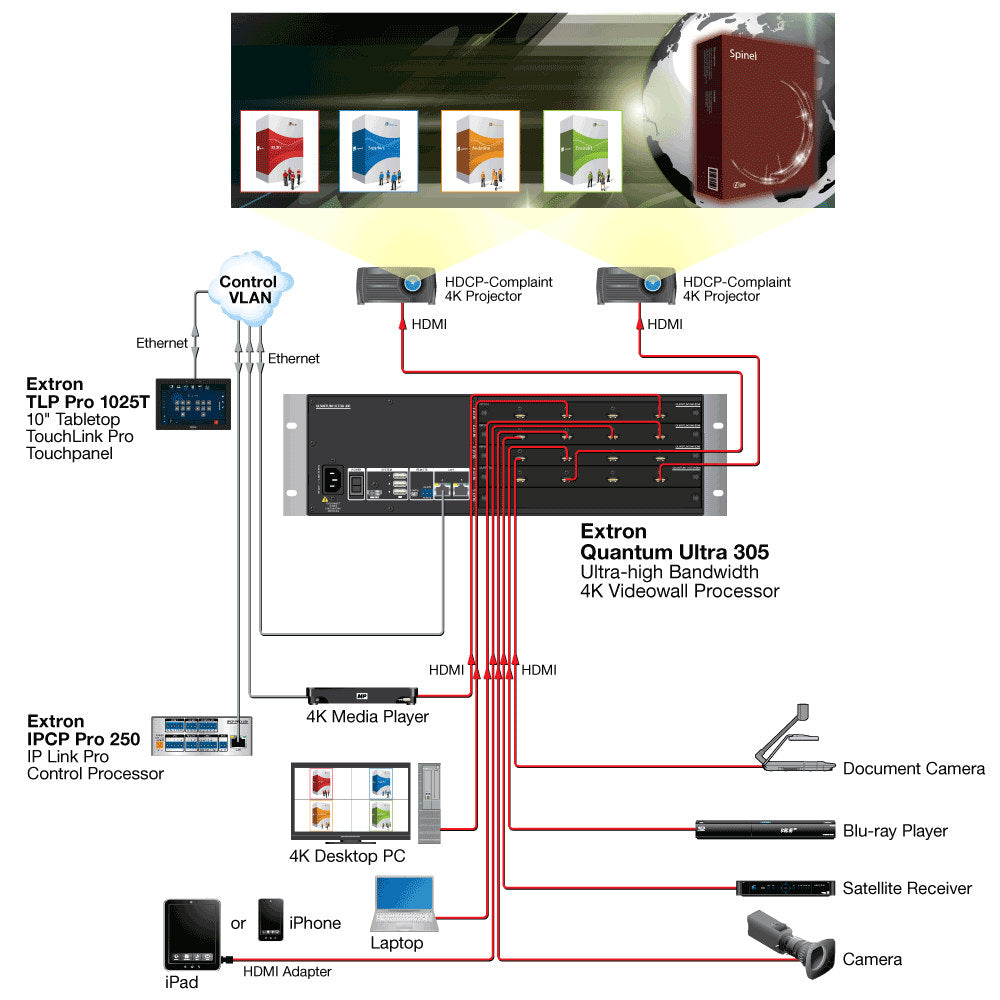

Diagram
