Details

Part number 70-955-01

The part 70-955-01 supplies the base configuration of the QEC O2HDMI card for the Quantum Elite videowall processor. Integrators rely on this card to incorporate dual HDMI outputs that accommodate 128 windows per card from mixed source types. The design resolves the need to combine 3G-SDI, RGB, and other signals into expandable display arrays by allowing additional cards or frames to increase capacity without replacing the core system.

Auditoriums, command centers, and digital signage installations use the card for data rates between 270 Mbps and 2.97 Gbps. Operation occurs from +35 to +95 °F with storage from -40 to +158 °F and noncondensing humidity to 85%. Selection requires attention to cable limits such as 60 m on RG6 or 45 m on RG59 for 3G-SDI, automatic equalization, 8-bit sampling per color, and 10/100Base-T control in a metal enclosure with front-to-rear fan cooling.

Specifications

Part Number: 70-955-01

Manufacturer: Extron

Condition: New

3G-SDI: 60 meters (200 feet) using Extron RG6 cable 45 meters (150 feet) using Extron RG59 cable

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 85%, noncondensingOperating: +35 to +95 °F (5 to +35 °C) / 10% to 85%, noncondensing

Boards: 0.3 lb (0.6 kg)

Colors: 16.78 million

Connectors: 2 female 26-pin HD (included adapter allows input on 24 female BNC connectors)

Control port: IP, TCP

Cooling: Fans, front to rear

Data rates: 270 Mbps to 2.97 Gbps

Digital sampling: 8 bits per color; 13.5 MHz standard

Digital video: RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI standard)

EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. Factory or custom EDID tables are user selectable.

Enclosure type: Metal

Equalization: Automatic

Ethernet data rate: Control port: 10/100Base-T, half/full duplex with autodetect

Ethernet ports: 1 female RJ-45 connector for control, networked2 female RJ-45 for media transfer (QGE 100 sources)

Formats: RGB digital video

HD-SDI: 120 meters (400 feet) using Extron RG6 cable90 meters (300 feet) using Extron RG59 cable

HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards

Horizontal frequency: 15 kHz

Impedance: 75 ohms

Input cable equalization: Automatic for up to -30 dB of cable loss

Input level: 2.75 V to 5.0 Vp-p for RGBHV0.6 Vp-p for component video tri-level sync0.3 Vp-p for component video bi-level sync or RGsB

Input type: RGBHV, RGsB, bi-level or tri-level component video

Internal operating system: Microsoft® Windows® XP® embedded

Max. input voltage: 5 Vp-p

Maximum data rate: 4.95 Gbps (1.65 Gbps per color)

Media ports: IP, TCP, UDP, DHCP

Minimum/maximum levels: Analog: 0.1 V to 2.0 Vp-p with no offset

Nominal level: 1 Vp-p for Y of S-video and for composite video0.3 Vp-p for C of S-video

Number/signal type: 12 S-video, composite video

Output impedance: 2.2k ohms

Output level: 2.4 Vp-p for RGBHV

Output type: RGBHV

Polarity: Positive or negative

Power consumption: 300-500 watts (varies with configuration)

Product warranty: 3 years parts and labor

Program control: Extron Quantum Elite control/configuration software for Windows

Quantum Elite 408: Media I: 10/100Base-T, half/full duplex with autodetectMedia II: 10/100/1000Base-T, half/full duplex with autodetect

Quantum Elite 615: Media I and II ports: 10/100/1000Base-T, half/full duplex with autodetect

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, FCC Class A, KC, RoHS, WEEE

Resolution range: 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, 1080p

Return loss: <-15 dB @ 1 MHz to 1.5 GHz

SDI: 150 meters (500 feet) using Extron RG6 cable120 meters (400 feet) using Extron RG59 cable

Scaled resolution: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2 HDTV: 720p1,2, 1080p1,2 1 = at 50 Hz, 2 = at 60 Hz

Scaled resolutions: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2HDTV: 720p1,2, 1080p1,21 = at 50 Hz, 2 = at 60 Hz

Signal Type: Single link HDMI (or DVI*)

Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM

Thermal dissipation: 300-1350 BTU/hr (varies with configuration)

USB standards: USB 2.0, low speed

Vertical frequencies: 50 Hz, 60 Hz

Vertical frequency: 50 Hz, 59.94 Hz

Diagram

Resources

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (quantumelite_brorevC.pdf)

Brochure | QEC O2HDMI 70-955-01 | Videowall Commissioning

Brochure | QEC O2HDMI 70-955-01 | QEC I12VID - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC I2DVI - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC I2HDMI - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC I2RGB - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC I2SDI - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC O2 - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | QEC O2HDMI - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (quantum_elite_A4_ch_ONLINE.pdf)

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (QuantumElite_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (quantum_elite_REV_C_jp_ONLINE.pdf)

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (quantumelite_gebro_revA1.pdf)

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite (Quantum-Elite_BR_A4_SP_RevB.pdf)

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite 408 - Spec Sheet

Brochure | QEC O2HDMI 70-955-01 | Quantum Elite 615 - Spec Sheet

Manual | QEC O2HDMI 70-955-01 | Cleaning Instruction Card

Manual | QEC O2HDMI 70-955-01 | Quantum Control Software User Guide

Manual | QEC O2HDMI 70-955-01 | Quantum Setup Guide

Manual | QEC O2HDMI 70-955-01 | Quantum Videowall Processing Systems User Guide - PRELIMINARY

Specifications | QEC O2HDMI 70-955-01 | Quantum® Elite Series

Panel Drawing | QEC O2HDMI 70-955-01 | Quantum Elite

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

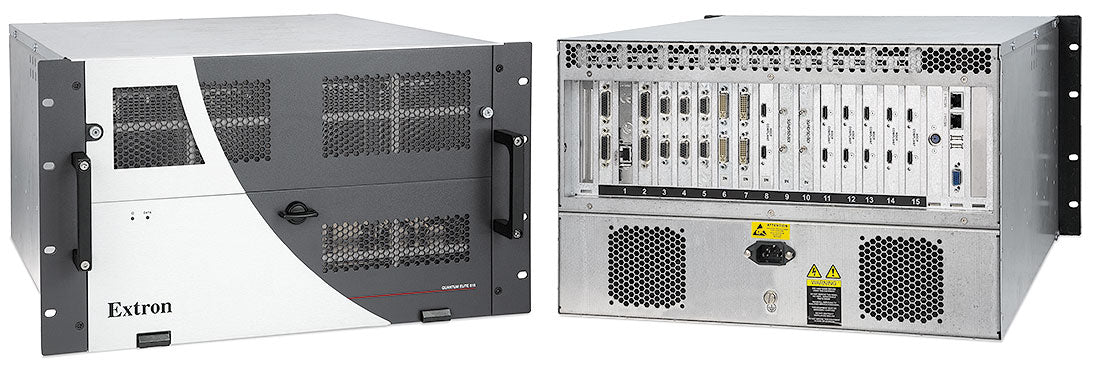

Extron QEC O2HDMI 70-955-01

Name: Extron QEC O2HDMI 70-955-01
Brand: Extron
SKU: EXTRON-QECO2HDMI-7095501
Availability: InStock

Manufacturer: Extron

Type: Videowall Processors

Extron QEC O2HDMI 70-955-01 HDMI Output Card

• Two-channel HDMI output card for the Quantum Elite scalable videowall processor
• Drives two HDMI displays from the Quantum Elite canvas
• HDCP compliant for protected content delivery to connected displays
• Cascade multiple frames for large display arrays
• Compatible with other Quantum Elite input and output cards in the same frame
