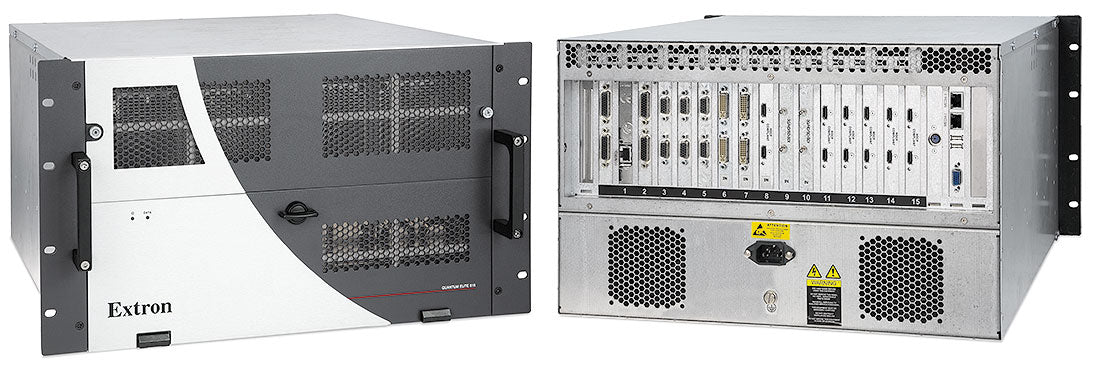

Part Number: 70-752-01
Manufacturer: Extron
Condition: New
3G-SDI: 60 meters (200 feet) using Extron RG6 cable 45 meters (150 feet) using Extron RG59 cable
Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 85%, noncondensingOperating: +35 to +95 °F (5 to +35 °C) / 10% to 85%, noncondensing
Boards: 0.3 lb (0.6 kg)
Colors: 16.78 million
Connectors: 2 female 26-pin HD (included adapter allows input on 24 female BNC connectors)
Control port: IP, TCP
Cooling: Fans, front to rear
Data rates: 270 Mbps to 2.97 Gbps
Digital sampling: 8 bits per color; 13.5 MHz standard
Digital video: RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI standard)
EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. Factory or custom EDID tables are user selectable.
Enclosure type: Metal
Equalization: Automatic
Ethernet data rate: Control port: 10/100Base-T, half/full duplex with autodetect
Ethernet ports: 1 female RJ-45 connector for control, networked2 female RJ-45 for media transfer (QGE 100 sources)
Formats: RGB digital video
HD-SDI: 120 meters (400 feet) using Extron RG6 cable90 meters (300 feet) using Extron RG59 cable
HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards
Horizontal frequency: 15 kHz
Impedance: 75 ohms
Input cable equalization: Automatic for up to -30 dB of cable loss
Input level: 2.75 V to 5.0 Vp-p for RGBHV0.6 Vp-p for component video tri-level sync0.3 Vp-p for component video bi-level sync or RGsB
Input type: RGBHV, RGsB, bi-level or tri-level component video
Internal operating system: Microsoft® Windows® XP® embedded
Max. input voltage: 5 Vp-p
Maximum data rate: 4.95 Gbps (1.65 Gbps per color)
Media ports: IP, TCP, UDP, DHCP
Minimum/maximum levels: Analog: 0.1 V to 2.0 Vp-p with no offset
Nominal level: 1 Vp-p for Y of S-video and for composite video0.3 Vp-p for C of S-video
Number/signal type: 12 S-video, composite video
Output impedance: 2.2k ohms
Output level: 2.4 Vp-p for RGBHV
Output type: RGBHV
Polarity: Positive or negative
Power consumption: 300-500 watts (varies with configuration)
Product warranty: 3 years parts and labor
Program control: Extron Quantum Elite control/configuration software for Windows
Quantum Elite 408: Media I: 10/100Base-T, half/full duplex with autodetectMedia II: 10/100/1000Base-T, half/full duplex with autodetect
Quantum Elite 615: Media I and II ports: 10/100/1000Base-T, half/full duplex with autodetect
Rack mount: Yes
Regulatory compliance: CE, c-UL, UL, FCC Class A, KC, RoHS, WEEE
Resolution range: 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, 1080p
Return loss: <-15 dB @ 1 MHz to 1.5 GHz
SDI: 150 meters (500 feet) using Extron RG6 cable120 meters (400 feet) using Extron RG59 cable
Scaled resolution: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2 HDTV: 720p1,2, 1080p1,2 1 = at 50 Hz, 2 = at 60 Hz
Scaled resolutions: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2HDTV: 720p1,2, 1080p1,21 = at 50 Hz, 2 = at 60 Hz
Signal Type: Single link HDMI (or DVI*)
Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM
Thermal dissipation: 300-1350 BTU/hr (varies with configuration)
USB standards: USB 2.0, low speed
Vertical frequencies: 50 Hz, 60 Hz
Vertical frequency: 50 Hz, 59.94 Hz
