Details

Part number 70-954-01

The part 70-954-01 supplies the base configuration of the QEC I2HDMI card for Quantum Elite videowall processors. Integrators select this card to add two HDMI inputs that accept graphic and computer signals from HDMI sources alongside 3G-SDI, DVI, RGB analog, and video sources. This addresses the need to integrate mixed HDMI signals into systems that route content across multiple display arrays without dedicated hardware for each signal type.

Systems using 8-slot or 15-slot card frames place the card in auditoriums, command centers, and digital signage installations. Field expansion adds inputs or outputs by installing more cards or cascading frames. The card supports data rates from 270 Mbps to 2.97 Gbps, automatic equalization, and EDID/DDC communication. Storage temperature ranges from -40 to +158 °F with 10% to 85% noncondensing humidity.

Model: 70-954-01 / 7095401

Frequently asked questions about the Extron QEC I2HDMI

Does Ampronix sell the Extron QEC I2HDMI?

Yes. Ampronix is an authorized Extron distributor and sells the Extron QEC I2HDMI (70-954-01). Call Ampronix for a quote.

Does Ampronix offer replacement and exchange for the Extron QEC I2HDMI?

Yes. Ampronix provides sales, replacement and exchange for the Extron QEC I2HDMI. Call Ampronix for a quote.

What does the Extron QEC I2HDMI do?

Key details: The part 70-954-01 supplies the base configuration of the QEC I2HDMI card for Quantum Elite videowall processors. Call Ampronix to confirm it fits your installation.

What is the part number for the Extron QEC I2HDMI?

The part number is 70-954-01. Quote 70-954-01 when you contact Ampronix to order.

Will the Extron QEC I2HDMI work with my existing system?

Compatibility depends on your inputs, outputs and control setup. Send Ampronix your system details and the team will confirm the Extron QEC I2HDMI is the right fit before you order.

How do I get a quote or lead time for the Extron QEC I2HDMI?

Call Ampronix with the model (70-954-01) and quantity. Ampronix is an authorized Extron distributor and will quote pricing and availability.

Specifications

Part Number: 70-954-01

Manufacturer: Extron

Condition: New

3G-SDI: 60 meters (200 feet) using Extron RG6 cable 45 meters (150 feet) using Extron RG59 cable

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 85%, noncondensingOperating: +35 to +95 °F (5 to +35 °C) / 10% to 85%, noncondensing

Boards: 0.3 lb (0.6 kg)

Colors: 16.78 million

Connectors: 2 female 26-pin HD (included adapter allows input on 24 female BNC connectors)

Control port: IP, TCP

Cooling: Fans, front to rear

Data rates: 270 Mbps to 2.97 Gbps

Digital sampling: 8 bits per color; 13.5 MHz standard

Digital video: RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI standard)

EDID and DDC: Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. Factory or custom EDID tables are user selectable.

Enclosure type: Metal

Equalization: Automatic

Ethernet data rate: Control port: 10/100Base-T, half/full duplex with autodetect

Ethernet ports: 1 female RJ-45 connector for control, networked2 female RJ-45 for media transfer (QGE 100 sources)

Formats: RGB digital video

HD-SDI: 120 meters (400 feet) using Extron RG6 cable90 meters (300 feet) using Extron RG59 cable

HDCP: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards

Horizontal frequency: 15 kHz

Impedance: 75 ohms

Input cable equalization: Automatic for up to -30 dB of cable loss

Input level: 2.75 V to 5.0 Vp-p for RGBHV0.6 Vp-p for component video tri-level sync0.3 Vp-p for component video bi-level sync or RGsB

Input type: RGBHV, RGsB, bi-level or tri-level component video

Internal operating system: Microsoft® Windows® XP® embedded

Max. input voltage: 5 Vp-p

Maximum data rate: 4.95 Gbps (1.65 Gbps per color)

Media ports: IP, TCP, UDP, DHCP

Minimum/maximum levels: Analog: 0.1 V to 2.0 Vp-p with no offset

Nominal level: 1 Vp-p for Y of S-video and for composite video0.3 Vp-p for C of S-video

Number/signal type: 12 S-video, composite video

Output impedance: 2.2k ohms

Output level: 2.4 Vp-p for RGBHV

Output type: RGBHV

Polarity: Positive or negative

Power consumption: 300-500 watts (varies with configuration)

Product warranty: 3 years parts and labor

Program control: Extron Quantum Elite control/configuration software for Windows

Quantum Elite 408: Media I: 10/100Base-T, half/full duplex with autodetectMedia II: 10/100/1000Base-T, half/full duplex with autodetect

Quantum Elite 615: Media I and II ports: 10/100/1000Base-T, half/full duplex with autodetect

Rack mount: Yes

Regulatory compliance: CE, c-UL, UL, FCC Class A, KC, RoHS, WEEE

Resolution range: 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, 1080p

Return loss: <-15 dB @ 1 MHz to 1.5 GHz

SDI: 150 meters (500 feet) using Extron RG6 cable120 meters (400 feet) using Extron RG59 cable

Scaled resolution: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2 HDTV: 720p1,2, 1080p1,2 1 = at 50 Hz, 2 = at 60 Hz

Scaled resolutions: 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2HDTV: 720p1,2, 1080p1,21 = at 50 Hz, 2 = at 60 Hz

Signal Type: Single link HDMI (or DVI*)

Standards: NTSC 3.58, NTSC 4.43, PAL, SECAM

Thermal dissipation: 300-1350 BTU/hr (varies with configuration)

USB standards: USB 2.0, low speed

Vertical frequencies: 50 Hz, 60 Hz

Vertical frequency: 50 Hz, 59.94 Hz

Diagram

Resources

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (quantumelite_brorevC.pdf)

Brochure | QEC I2HDMI 70-954-01 | Videowall Commissioning

Brochure | QEC I2HDMI 70-954-01 | QEC I12VID - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC I2DVI - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC I2HDMI - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC I2RGB - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC I2SDI - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC O2 - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | QEC O2HDMI - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (quantum_elite_A4_ch_ONLINE.pdf)

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (QuantumElite_BR_A4_IT_NP_RevB_LR.pdf)

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (quantum_elite_REV_C_jp_ONLINE.pdf)

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (quantumelite_gebro_revA1.pdf)

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite (Quantum-Elite_BR_A4_SP_RevB.pdf)

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite 408 - Spec Sheet

Brochure | QEC I2HDMI 70-954-01 | Quantum Elite 615 - Spec Sheet

Manual | QEC I2HDMI 70-954-01 | Cleaning Instruction Card

Manual | QEC I2HDMI 70-954-01 | Quantum Control Software User Guide

Manual | QEC I2HDMI 70-954-01 | Quantum Setup Guide

Manual | QEC I2HDMI 70-954-01 | Quantum Videowall Processing Systems User Guide - PRELIMINARY

Specifications | QEC I2HDMI 70-954-01 | Quantum® Elite Series

Panel Drawing | QEC I2HDMI 70-954-01 | Quantum Elite

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

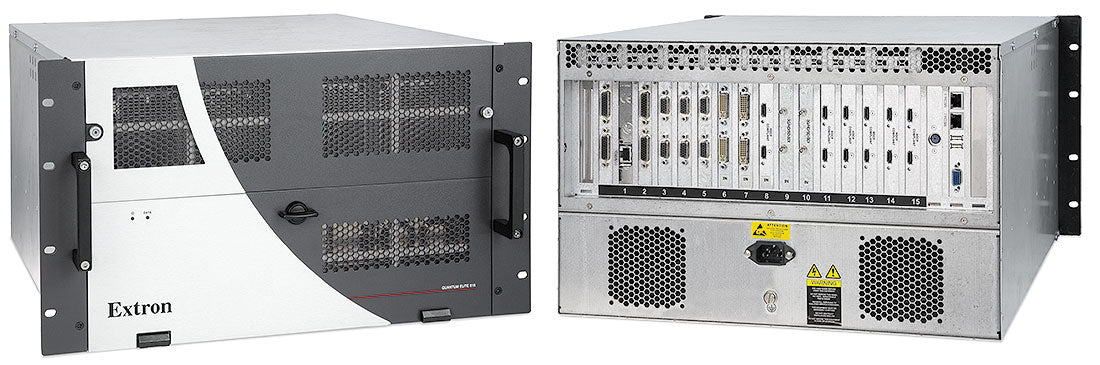

Extron QEC I2HDMI 70-954-01

Name: Extron QEC I2HDMI 70-954-01
Brand: Extron
SKU: EXTRON-QECI2HDMI-7095401
Availability: InStock

Manufacturer: Extron

Type: Videowall Processors

Extron QEC I2HDMI 70-954-01 HDMI Input Card

• Extron QEC I2HDMI 2-channel HDMI input card
• HDCP compliant with automatic cable equalization
• For the Quantum Elite videowall processor
• Sales, replacement and exchange
• Part# 70-954-01 / 7095401

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-QECI2HDMI-7095401
