Extron PVS 401D (part number 42-308-13) — a 4+2 input PoleVault Digital classroom AV system with pole-mounted electronics.

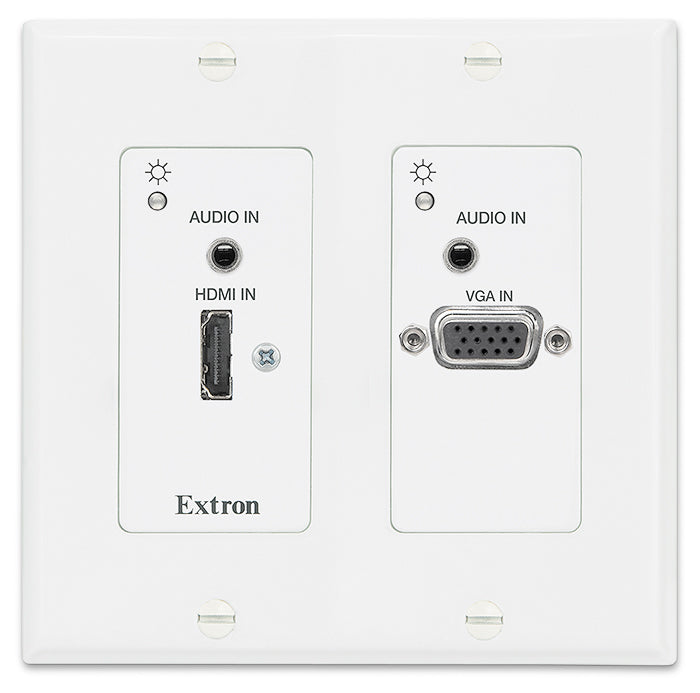

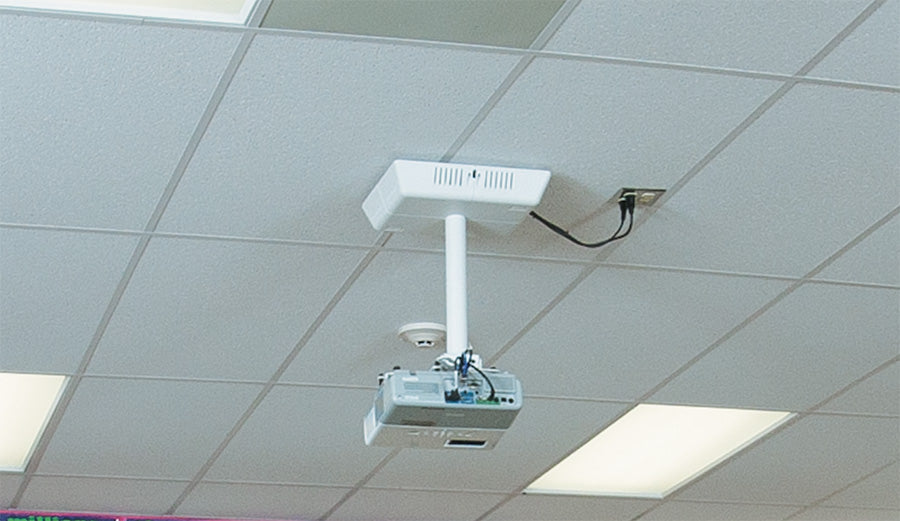

Four wallplate source positions and two switcher HDMI inputs make this the larger of the two PoleVault Digital builds. The PVS 407D and its power supply ride on the projector pole inside the PMK 560 kit, so no rack, ceiling enclosure or wall cabinet is needed anywhere in the room. Instructors see a control panel and a couple of input plates; everything else is overhead.

Key Capabilities

Four wallplate inputs plus two local HDMI inputs, up to six sources in total
Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
PMK 560 pole kit fits 1.5 in NPT poles or 1.85 to 1.95 in outside diameter
FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop

Where It Is Used

Projector rooms with several connection points — secondary school classrooms, lecture rooms, college teaching labs and corporate training suites — where a pole-mounted projector is already the fixed point in the ceiling.

Specifications at a Glance

Configuration: 4+2 input digital PoleVault
Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
PMK 560 pole mount: 3.0 x 15.4 x 11.9 in (76 x 391 x 302 mm), 15 lbs (6.8 kg) capacity
Controller: MLC Plus 100 button panel
Warranty: 3 years parts and labor

Also referenced as Extron PVS401D, PVS-401D, part number 4230813. Extron has retired this system; the suggested replacement is the PlenumVault Digital range.

Specifications

Part Number: 42-308-13

Manufacturer: Extron

Model: PVS 401D

Condition: New

Configuration: 4+2 input digital PoleVault

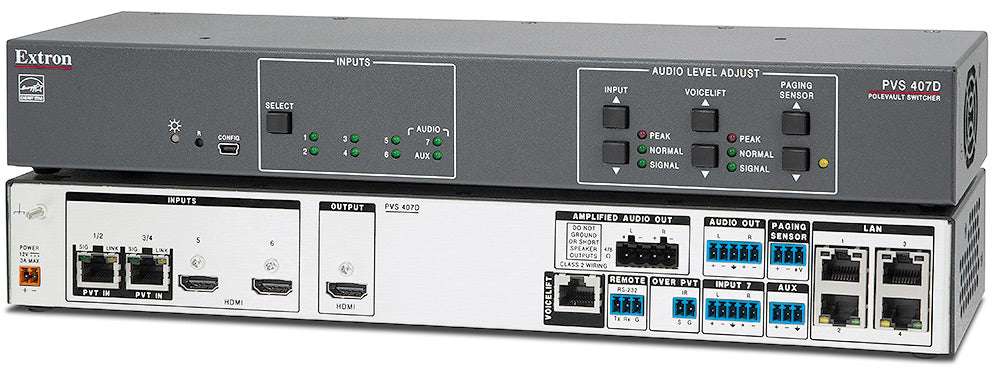

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 100 MediaLink Plus button panel controller

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 30.4 watts at 12 VDC; device and power supply 37.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Pole mount, with included pole mounting kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

PMK 560 Pole Mount Kit: Mounts to round projector poles - standard 1.5 in (38 mm) NPT pipe, or pipe of 1.85 in to 1.95 in (47 to 50 mm) outside diameter; 15 lbs (6.8 kg) maximum load; aluminum base plate with high impact plastic covers; 3.0 in H x 15.4 in W x 11.9 in D (76 x 391 x 302 mm); 2.4 lbs (1.1 kg)

PCM 340 Projector Drop Ceiling Mount: 50.0 lbs (22.7 kg) maximum load; 1.5 in to 23.0 in drop with 21.5 in adjustability in 0.5 in steps; 25 in pipe, 1.5-11.5 NPT; 4.5 lbs (2.1 kg); OSHPD anchorage pre-approval

UPB 125 Projector Bracket: 40 lbs (18.1 kg) maximum load; plus or minus 5 degrees roll, plus or minus 20 degrees pitch, 360 degrees yaw; 3.2 in H x 7.0 in W x 7.0 in D; arm radius extension 7.8 in (198 mm) from the corner attachment; 2.7 lbs (1.2 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor

Lifecycle Status: Retired by Extron; suggested replacement is the PlenumVault Digital Systems range

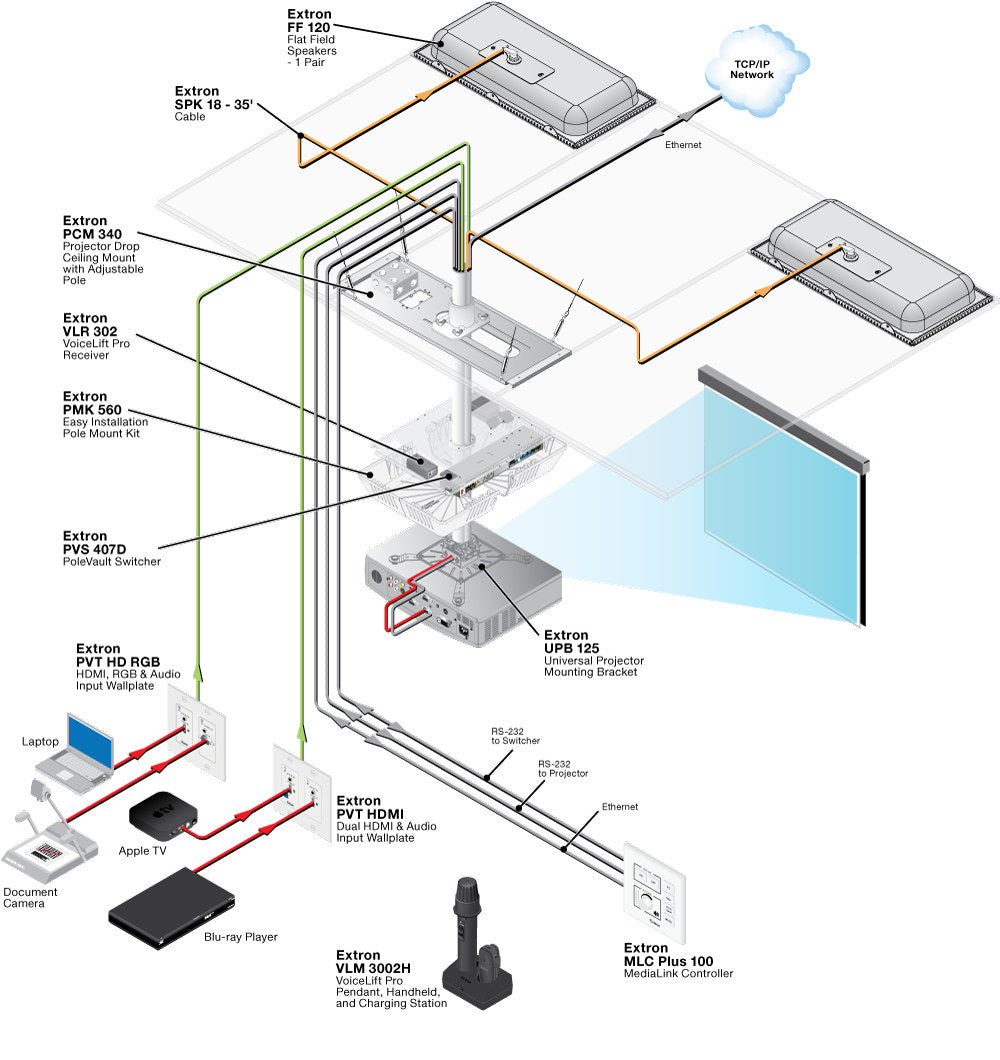

Diagram

Resources

Manual | PVS 401D 42-308-13 | Cleaning Instruction Card

Manual | PVS 401D 42-308-13 | Network Ports, Protocols, and Licenses

Manual | PVS 401D 42-308-13 | PMK 560 Installation Guide

Manual | PVS 401D 42-308-13 | PoleVault Digital Classroom with MLC Plus 100 Controller Quick Reference Guide

Manual | PVS 401D 42-308-13 | PoleVault Digital Classroom with MLC Plus 84 D Controller Quick Reference Guide

Manual | PVS 401D 42-308-13 | UPB 125 Installation Guide

Specifications | PVS 401D 42-308-13 | PoleVault® PVS 201D and PVS 401D Digital Systems

Specifications | PVS 401D 42-308-13 | PMK 560

Specifications | PVS 401D 42-308-13 | PVS 407D PoleVault Digital Switcher

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron PVS 401D PoleVault Digital 4+2 Input AV System 42-308-13

Name: Extron PVS 401D PoleVault Digital 4+2 Input AV System 42-308-13
Brand: Extron
SKU: EXTRON-PVS401D-4230813
Availability: InStock

Manufacturer: Extron

Type: Classroom AV Systems

Extron PVS 401D PoleVault Digital Classroom AV System

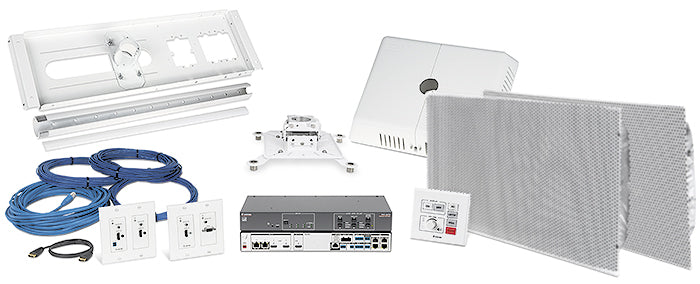

• Complete 4+2 input PoleVault classroom system on the Extron PVS 407D
