Part Number: 42-301-01
Manufacturer: Extron
Model: PVDV 101Z
Condition: New

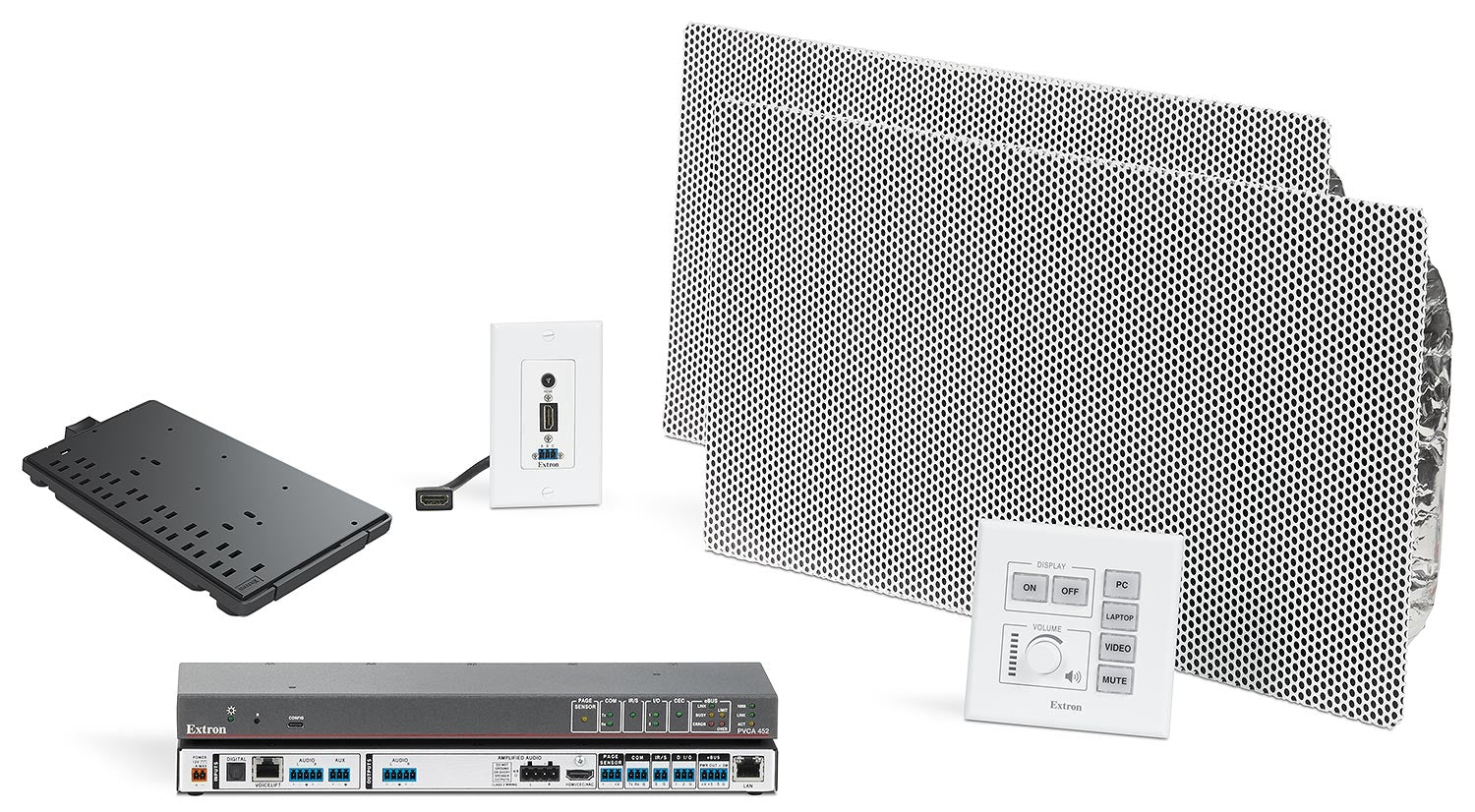

System Components: PVCA 452 control and amplifier, WPD 110 A wallplate, EBP 100 eBUS button panel, FF 120 Flat Field speakers, PVM 220 PlenumVault enclosure, ZipClip 400 and ZipCaddy 400 mounting hardware
Configuration Software: Extron Global Configurator Plus and Professional for Windows
Control Apps: Extron Control
Utilities: Toolbelt
Hardware User Interfaces: TouchLink Pro touchpanels, Network Button Panels, eBUS Button Panels
Video - Max 4K Capability (WPD 110 A): 4096 x 2160 and 3840 x 2160 at 30 Hz with 4:4:4 chroma; 4096 x 2160 and 3840 x 2160 at 60 Hz with 4:2:0 chroma; 8 bit max per color
Video - Signal Type: HDMI 1.4
Video - Max Data Rate (HDMI): 10.2 Gbps (3.4 Gbps per color)
Video - Frame Rate: 24, 25, 30, 50, or 60 fps
Video - Chroma Sampling: 4:4:4, 4:2:2, or 4:2:0
Video - Color Bit Depth: 8 bits per color
Audio - Volume Control Range: -100 dB to 0 dB (control 0 to 100 in 1 dB steps)
Audio - Crosstalk: Less than -85 dB @ 1 kHz
Audio - Stereo Channel Separation: Greater than 80 dB @ 1 kHz
Audio Input - VoiceLift Receiver: 1 mono, balanced (mic) on 1 female RJ-45; greater than 10k ohms; -10 dBV (316 mVrms) nominal; gain -18 dB to +24 dB
Audio Input - Line: 1 stereo, unbalanced or balanced on 1 female 3.5 mm captive screw connector, 5 pole; greater than 10k ohms; -10 dBV nominal; gain -18 dB to +24 dB
Audio Input - Aux: 1 mono, unbalanced or balanced on 1 female 3.5 mm captive screw connector, 3 pole; greater than 10k ohms; -10 dBV nominal; gain -18 dB to +24 dB
Audio Input - Digital: 1 S/PDIF optical on 1 female TOSLINK connector; PCM at 32, 44.1, 48, 96 and 192 kHz up to 24-bit; stereo listening mode; gain -18 dB to +12 dB
Audio Output - Line Level: 1 stereo/mono, balanced/unbalanced, fixed/variable on (1) 3.5 mm captive screw connector, 5 pole; 50 ohms unbalanced, 100 ohms balanced; gain error plus/minus 0.8 dB channel to channel; maximum level +15 dBu balanced at less than 0.1% THD+N
Audio Output - Power Amplifier: 1 stereo/mono, balanced/unbalanced, fixed/variable on (1) 5.0 mm captive screw connector, 4 pole
Amplifier Type: Class D
Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD
Load Impedance: 4/8 ohms, single channel or stereo
Frequency Response: 20 Hz to 20 kHz, +1 dB/-3 dB @ 1 watt output, 8 ohm load
THD + Noise: 0.1%, 1 kHz, 3 dB below clipping
Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms
Damping Factor: Greater than 75 @ 8 ohm
Control - USB Configuration Port: 1 front panel female USB type-C, USB 2.0 high speed
Control - Paging Sensor Connector: (1) 3.5 mm captive screw connector, 3 pole
Control - Serial: 1 bidirectional RS-232 on (1) 3.5 mm direct insertion captive screw connector, 3 pole; pin 1 = Tx, 2 = Rx, 3 = Gnd
Control - Serial Baud Rate and Protocol: 300 to 115200 baud (9600 baud = default); 8 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
Control - IR/Serial: 1 programmable: unidirectional RS-232 (plus/minus 5 V) or TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz, on (1) 3.5 mm direct insertion captive screw connector, 2-pole
Control - IR/Serial Baud Rate and Protocol (RS-232): 300 to 115200 baud (9600 baud = default); 8 data bits; 1 (default) or 2 stop bits; no parity (default), even, odd, mark, or space parity
Control - IR Output Carrier Frequency: 30 kHz to 300 kHz
Control - Digital Inputs: 2 configurable digital inputs referenced to ground on (1) 3.5 mm captive screw connector, 3 pole; 0 to 24 VDC clamped at +30 VDC; greater than 10k ohms; programmable pullup 1k ohms to +5 VDC; threshold low to high greater than 2.8 VDC, high to low less than 2.0 VDC
Control - Digital Outputs: 250 mA sink from 24 VDC max.
Control - eBUS Ports: (1) 3.5 mm captive screw connector, 4 pole on the PVCA 452; (2) on the EBP 100. +V = +12 VDC; +S = + signal; -S = - signal; G = ground
Control - eBUS Cable: Extron STP20-2/1000 or STP20-2P/1000; 1000 feet (305 meters) sum total for the eBUS system regardless of topology. Power injection may be required depending on cabling topology and primary power supply wattage.
Control - eBUS Power Output: 3 watts
Ethernet - Network Interface Controllers (NICs): 1, on 1 female RJ-45 connector
Ethernet - Data Rate: 10/100/1000Base-T, half/full duplex with autodetect
Ethernet - Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Ethernet - Default Settings: Link speed and duplex level = autodetected; IP address = 192.168.254.250; Subnet mask = 255.255.255.0; Gateway = 0.0.0.0; DHCP = off; DNS = 127.0.0.1
General - Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 4.2 A, 50 watts
General - Power Consumption: Device 18.16 watts; device and power supply 20.55 watts
General - Thermal Dissipation: Device 18.86 BTU/hr; device and power supply 27.01 BTU/hr
General - Temperature/Humidity: Storage: -40 to +158 F (-40 to +70 C) / 10% to 90%, noncondensing. Operating: +32 to +122 F (0 to +50 C) / 10% to 90%, noncondensing
General - Cooling: Convection, no vents
General - Mounting (PVCA 452): Rack mount yes, with optional 1U rack shelf; furniture or wall mount yes, with optional under-desk mounting kit
PVCA 452 Enclosure: Metal, 1.00 in H x 13.1 in W x 3.5 in D (2.5 cm H x 33.3 cm W x 8.9 cm D), depth excludes connectors; 1.20 lbs (0.5 kg)
ZipClip 400 (PVDV 101Z): 9.5 in H x 4.6 in W x 0.6 in D (241 mm H x 116 mm W x 15 mm D)
ZipCaddy 400 (PVDV 101Z): 8.6 in H x 4.4 in W x 0.4 in D (218 mm H x 111 mm W x 10 mm D)
ZipClip Mounting: Rack rail mount yes, with required hardware; furniture mount yes, with included hardware. Supports eighth-rack, quarter-rack and half-rack width products.
ZipClip Load Bearing: Vertical mounting 9.5 lbs (4.3 kg); horizontal mounting 5.0 lbs (2.27 kg)
ZipClip Material and Weight: High impact plastic; 0.3 lbs (0.1 kg) per clip and plate pair, 2.8 lbs (1.3 kg) per 10-pack
WPD 110 A Wallplate: Plastic enclosure; mounts in Extron AAP 314, AAP 424, or US-gang decorator-style frames; module 4.10 in H x 1.60 in W x 0.26 in D (104 x 41 x 6.6 mm), mounting holes 3.80 in (97 mm) apart, face 2.61 in H x 1.29 in W; 0.1 lb; RoHS, WEEE
WPD 110 A Connector Type: HDMI female to HDMI female; 3.5 mm stereo audio jack to captive screw; 3.5 mm captive screw connector, 3-pole to 3.5 mm captive screw connector, 3-pole
WPD 110 A Cable: 12.75 in (324 mm) length, 0.24 in (6.0 mm) outer diameter. Depth including bend radius: 2.0 in (50 mm). Do not bend the cable beyond the recommended depth.
EBP 100 Button Panel: 12 VDC, powered by an Extron IPCP Pro series control processor or optional power supply; 0.5 W; faceplate 4.5 in H x 4.6 in W x 0.3 in D; device 2.7 in H x 3.5 in W x 0.8 in D (1.25 in D including captive screw connectors); fits most 2 gang US boxes or mud rings, allow at least 1.9 in depth; 0.5 lb
FF 120 Flat Field Speakers: 16 W rms continuous pink noise, 32 W rms continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2 ft x 2 ft or 2 ft x 4 ft suspended tile; 3.25 in H x 23.75 in W x 11.75 in D (83 x 603 x 299 mm); 4.7 lbs (2.1 kg) single
PVM 220 PlenumVault: Drop ceiling mountable within air-handling space; maximum load 15 lbs (6.8 kg) on door; composite enclosure with aluminum door frame and mounting plate; 6.3 in H x 23.8 in W x 23.8 in D (160 x 605 x 605 mm); 16.0 lbs (7.3 kg)
Vibration: ISTA 1A in carton (International Safe Transit Association)
Regulatory - Safety: CE, c-UL, UL. UL Listed for use in plenum air handling spaces: meets UL 2043 for heat and smoke release. FF 120 also meets NFPA90A, NFPA70 and UL 1480. PVM 220 carries OSHPD anchorage pre-approval.
Regulatory - EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI Class A. Complies with the appropriate requirements of RoHS and WEEE.
Regulatory - Accessibility: Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d)
Warranty: 3 years parts and labor
