Manufacturer: Extron | Model: PS 1220EB | Part number: 70-988-01 (also written 7098801)

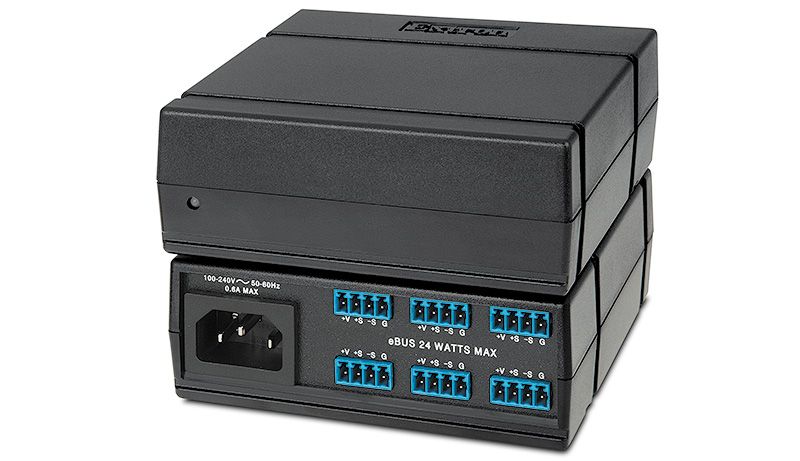

The Extron PS 1220EB (70-988-01) is a new 12 V, 24 W rack-mountable eBUS power supply and distribution hub available through Ampronix. Six parallel eBUS ports each supply 12 VDC to connected eBUS devices, reducing cable runs by providing a central connection point for eBUS wiring in larger IPCP Pro control systems. Quarter-rack 1U enclosure.

Key capabilities

• Six parallel eBUS distribution ports, each providing 12 VDC power to connected devices
• Reduces cable runs: central connection point for eBUS wiring in large systems
• Each port acts as input or output for eBUS communication
• 12 V, 24 W output; compact quarter-rack 1U metal enclosure
• Mounts to rack rails, tables, or lecterns

Where it is used

Large IPCP Pro control systems with multiple eBUS devices where the control processor's built-in eBUS power is insufficient or central wiring distribution is needed.

Specifications at a glance

• Output: 12 VDC, 24 W total
• Ports: 6 x eBUS (parallel), each with power
• Enclosure: 1U, quarter-rack width
• Warranty: 3-year Extron parts and labor

Frequently asked questions

• Is the Extron PS 1220EB 70-988-01 available new or refurbished? - Ampronix stocks the PS 1220EB (70-988-01) as a new unit through its authorized Extron distribution agreement.
• What is the difference between the PS 1220EB and the EBDB eBUS distribution hub? - The PS 1220EB (70-988-01) provides 12 VDC power on each of its six eBUS ports for powering additional devices; the EBDB (60-1170-01) distributes eBUS signals across 10 ports without supplying additional power.
• Does Ampronix offer support for the Extron PS 1220EB? - Yes. Ampronix provides repair, exchange, and replacement services for the PS 1220EB and the broader Extron control accessories line.

Ampronix is an authorized Extron distributor. Need support for your Extron PS 1220EB? Ampronix offers professional repair, exchange, and replacement services for this product and the broader Extron control line.

Also referenced as Extron PS1220EB, PS-1220EB, part number 7098801.
