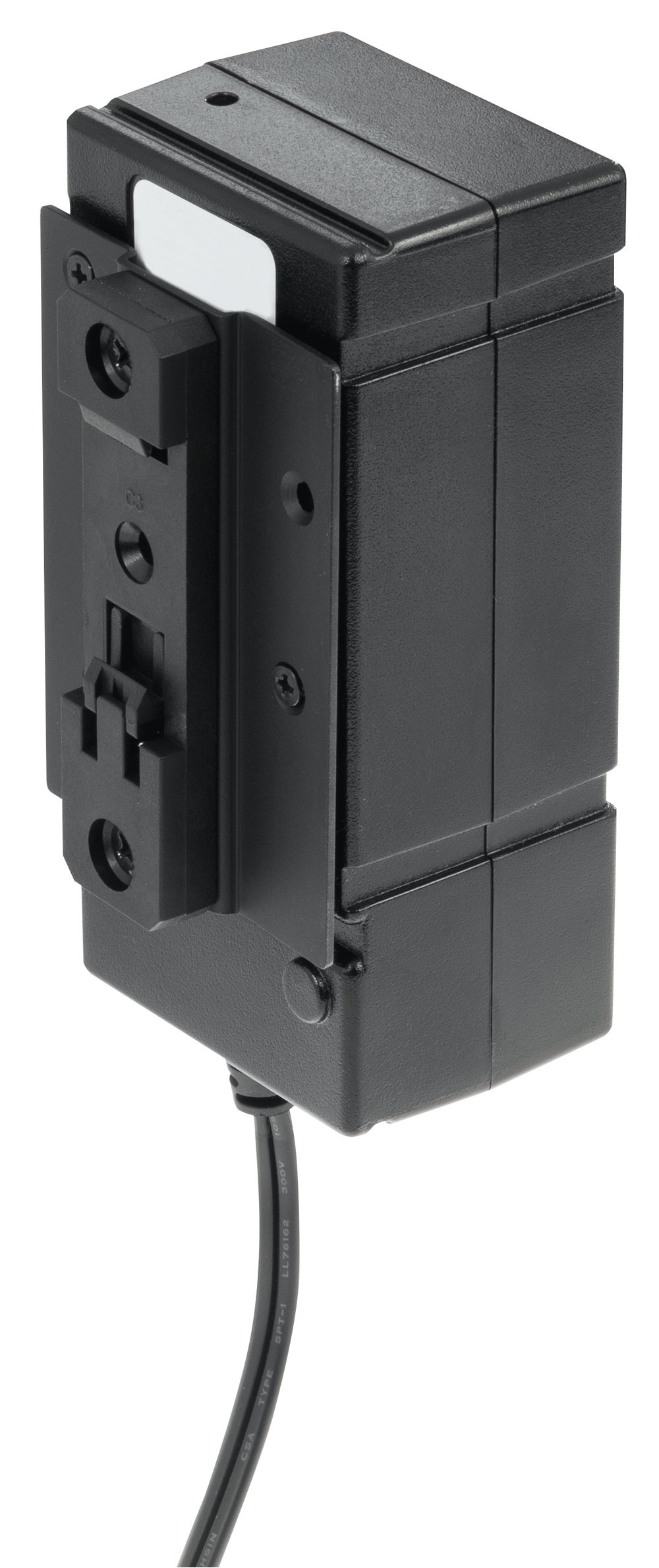

Extron PS 18DR (part number 70-1245-01) — a DIN rail adapter that lets one-eighth rack Extron PS Series power supplies mount alongside other control-panel hardware.

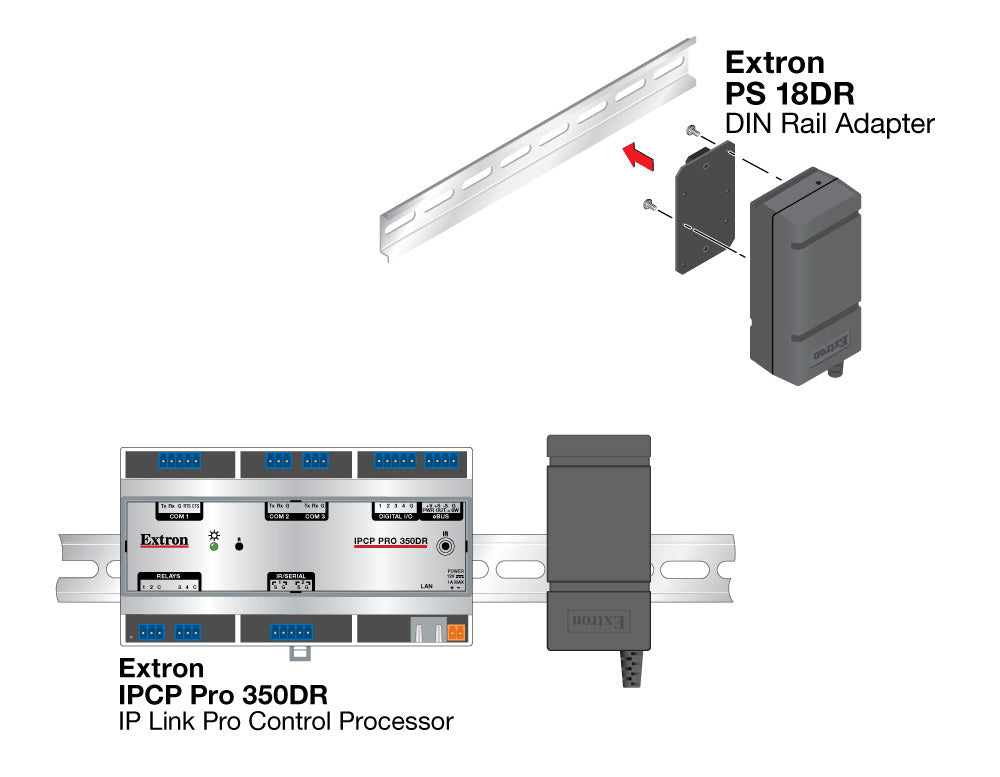

Control cabinets and equipment closets increasingly standardize on 35 mm DIN rail rather than shelves, and this adapter brings Extron's compact external power supplies into that layout. A metal plate and nylon clip hold the supply in either a horizontal or vertical orientation, and the design allows the supply to be attached or released with one hand once the plate is on the rail — useful during service without pulling the whole panel apart.

Key Capabilities

• Fits a standard 35 mm DIN rail
• Metal mounting plate with a nylon retention clip
• Horizontal or vertical orientation
• One-handed attach and release of the power supply
• Sized for one-eighth rack wide Extron PS Series supplies

Where It Is Used

Control rooms and integrator panels built around DIN rail hardware, where an Extron PS Series supply needs to sit next to relays, terminal blocks, or other rail-mounted control gear rather than on a shelf.

Specifications at a Glance

• Mounting: 35 mm DIN rail, no rack mount
• Materials: metal plate, nylon clip
• Dimensions: 3.20 in H x 2.00 in W x 0.38 in D
• Weight: 0.20 lbs (0.1 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron PS18DR, PS-18DR, part number 70124501.
