Details

Extron PS 1508C (part number 70-776-01) — a single-output 15 VDC, 0.8 A external supply terminated in a captive screw connector.

This is the 15 volt member of Extron's 910/1210/1508 external supply family, sized for devices that specifically call out 15 VDC rather than the more common 9 or 12 volt rails. The captive screw terminal locks the output cable in place instead of relying on friction, which matters in racks that get moved or serviced often. It runs from universal 100-240 VAC input, idles under a third of a watt, and tops out under 15 watts at full load.

Key Capabilities

15 VDC output at 0.8 A, 12 watts rated
Captive screw terminal output connector
Universal 100-240 VAC, 50-60 Hz input
Full-load draw of just 14.8 watts, 0.3 A
Rated MTBF of 1,000,000 hours

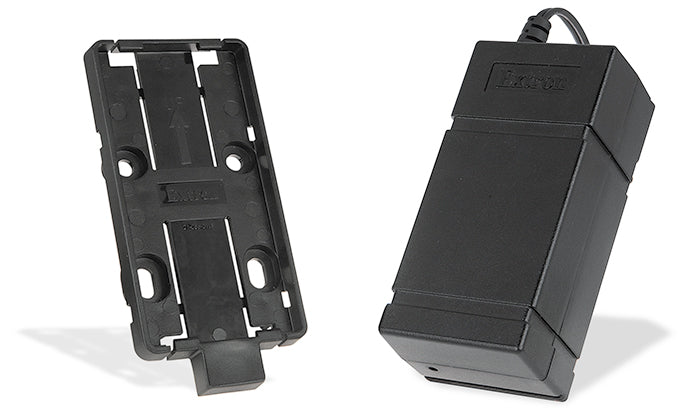

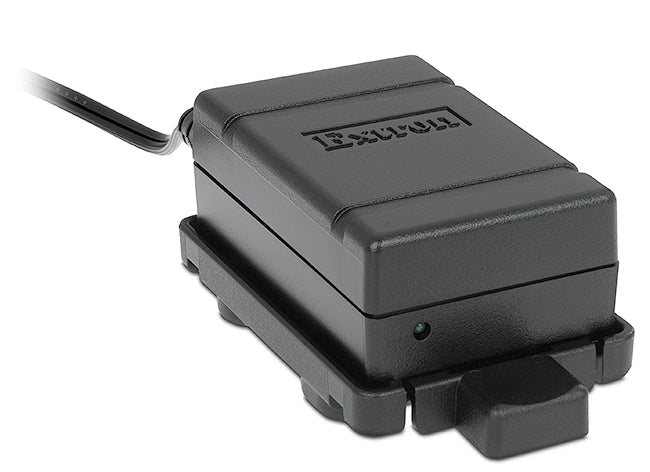

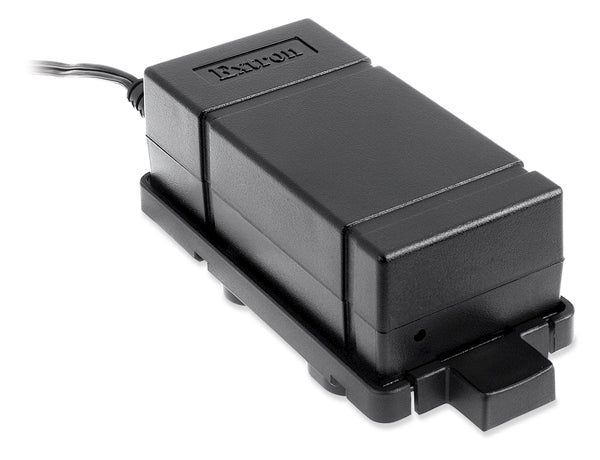

Mounts to racks, furniture, or poles with the included ZipClip 100

Where It Is Used

Fixed installs where an Extron interface or third-party accessory specifically requires a 15 volt feed — equipment closets, lecterns, and rack-mounted control systems.

Specifications at a Glance

Output: 15 VDC, 0.8 A, 12 W, captive screw
Input: 100-240 VAC, 50-60 Hz
Enclosure: 1.7 in H x 2.2 in W x 4.5 in D, plastic
Weight: 0.5 lb (0.3 kg)
Warranty: 3 years parts and labor

Also referenced as Extron PS1508C, PS-1508C, part number 7077601.

Specifications

Part Number: 70-776-01

Manufacturer: Extron

Model: PS 1508C

Condition: New

Power Output: 15 VDC, 0.8 A, 12 watts

Termination: Captive screw connector

Power Input: 100 VAC to 240 VAC, 50-60 Hz

No Load: 0.3 watts

Full Power: 14.8 watts, 0.3 A maximum

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

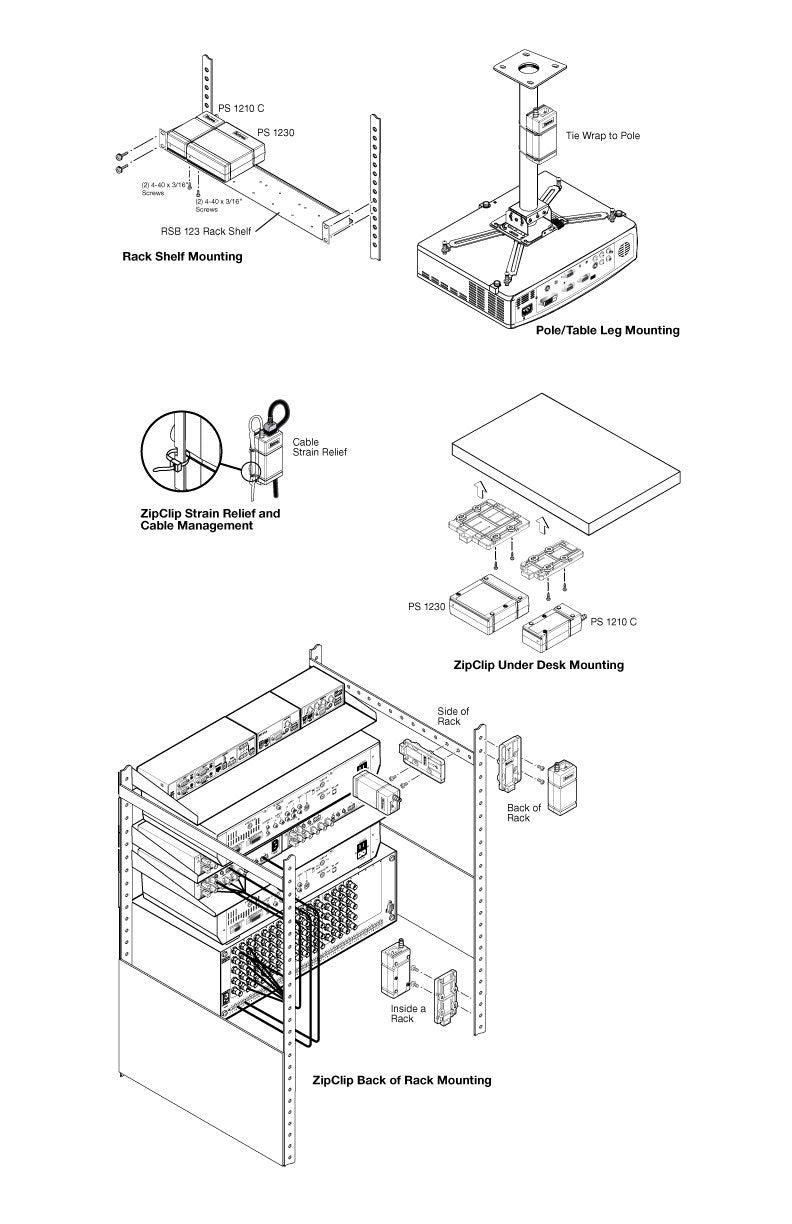

Rack Mount: Yes, with optional 1U rack shelf, with the included ZipClip 100 mounting clip, or by securing to rack rails with tie wraps

Furniture Mount: Yes, with the included ZipClip 100 mounting clip

Pole Mount: Yes, using tie wraps

Enclosure Type: High impact, high temperature plastic

Enclosure Dimensions: 1.7" H x 2.2" W x 4.5" D (1U high, one-eighth rack wide) (4.2 cm H x 5.5 cm W x 11.4 cm D) (Excludes power cords.)

Product Weight: 0.5 lb (0.3 kg)

Shipping Weight: 2 lbs (1 kg)

Vibration: Operating: 10-250 Hz, 0.25 Gp-p, 3 axes, 15 min. sweep

Safety, EMI/EMC: BSMI, CCC, CE, C-tick, c-UL, CISPR 22 Class B, CISPR 24, FCC Class B, GS, KC, NEC Class 2, PSE, S-mark, UL

Environmental: Complies with the appropriate requirements of CEC, EU code of conduct, Korea Energy Certification, Australia Energy Safe Certification, RoHS, WEEE. Meets energy efficiency level V and is marked with the UL Environment Energy Efficiency Certification (EEC) Mark.

MTBF: 1,000,000 hours

Warranty: 3 years parts and labor

Diagram
