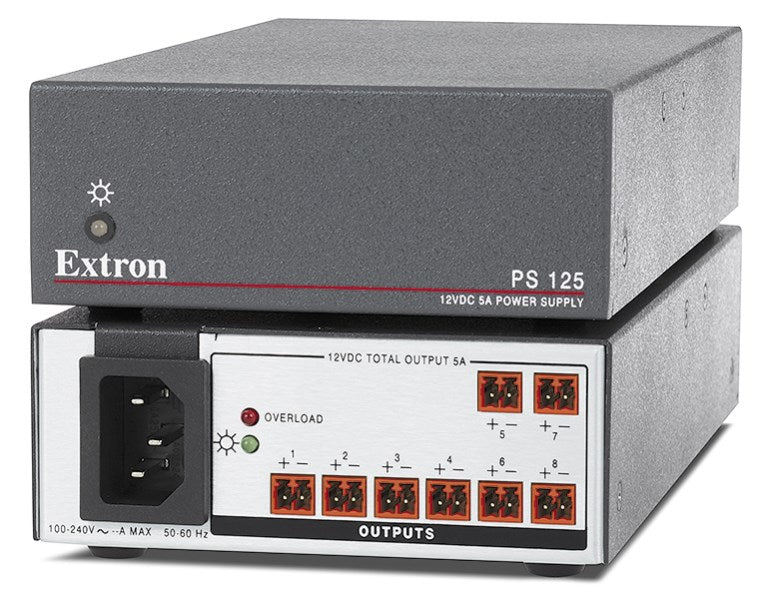

Extron PS 125 (part number 60-1954-01) — an eight-output 12 VDC power supply for centralizing power across a rack of low-voltage devices.

Rather than running eight separate wall adapters, the PS 125 delivers 12 VDC to eight ports from one chassis, sharing 5 A and 60 watts total across however many ports are actually loaded. Front and rear status LEDs flag power and overload conditions at a glance, which matters when a rack is buried behind other gear. The quarter-rack metal case runs on universal 100-240 VAC input and needs no active cooling.

Key Capabilities

• Eight 12 VDC outputs, 5 A and 60 watts total
• Universal 100-240 VAC, 50-60 Hz input
• Front and rear LEDs for power and overload status
• Idles at just 0.13-0.17 watts with no load
• Rack mounts with an optional 1U shelf or under-desk kit

Where It Is Used

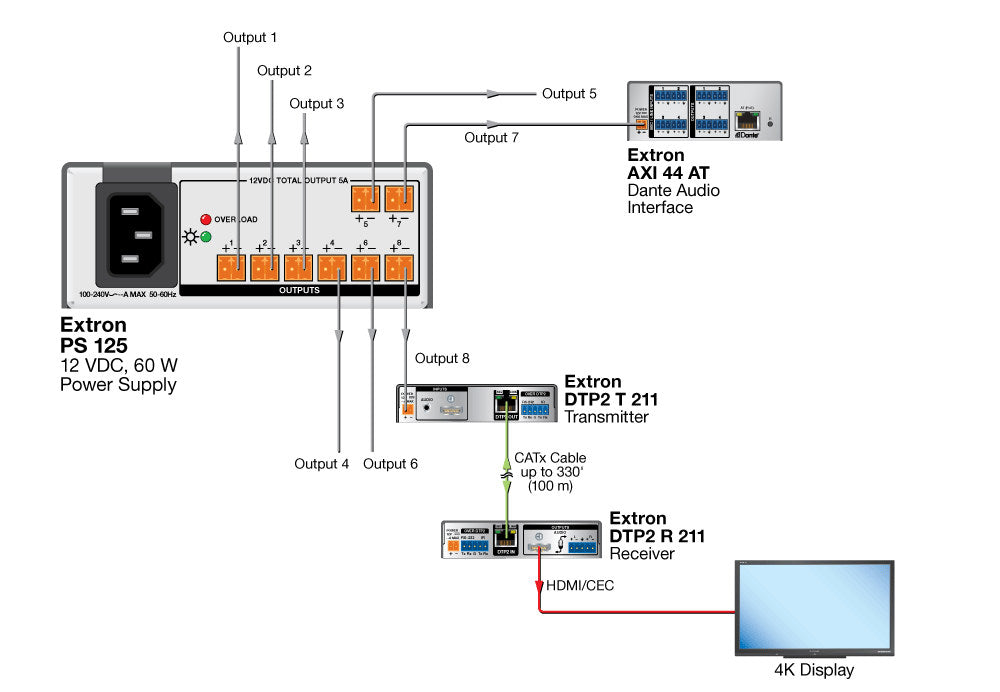

Equipment racks and control closets running several low-voltage Extron or third-party devices off a single supply, where individual wall adapters would clutter the install and complicate power management.

Specifications at a Glance

• Output: 12 VDC, 5 A max, 60 W total, 8 outputs
• Input: 100-240 VAC, 50-60 Hz
• Enclosure: 1.75 in H x 4.3 in W x 8.5 in D, metal, quarter rack
• Weight: 1.2 lbs (0.5 kg)
• Warranty: 7 years parts and labor

Also referenced as Extron PS125, PS-125, part number 60195401.
