Details

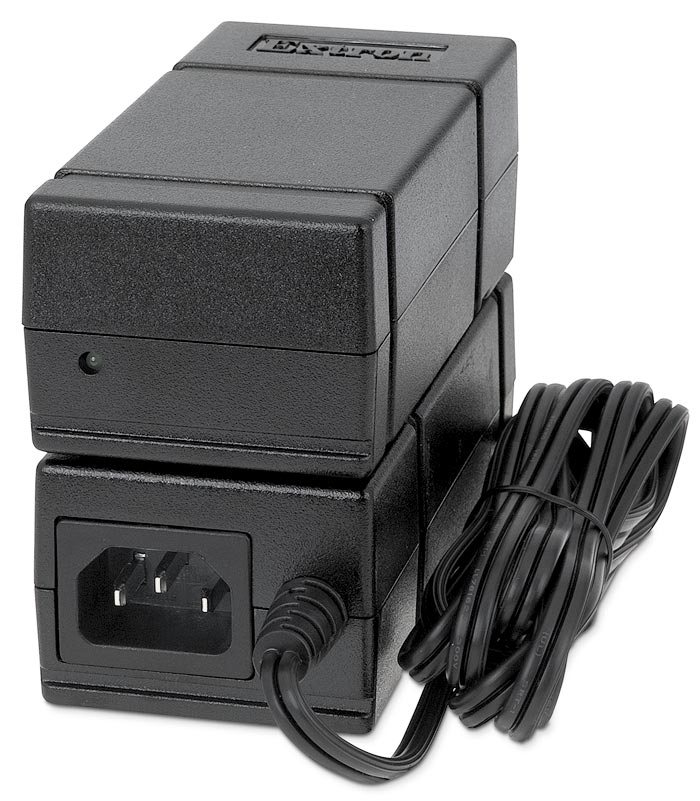

Extron PS 1210C (part number 70-775-01) — a single-output 12 VDC, 1 A external supply terminated in a captive screw connector.

Integrators reach for this power supply when a piece of Extron gear, or a third-party device on the same rack, needs a dedicated 12 volt feed at exactly 1 amp and a locking screw-terminal connection rather than a barrel plug. It runs on universal 100-240 VAC input, draws under a third of a watt with no load attached, and stays under 15 watts even at full output, so it adds little to a rack's thermal budget.

Key Capabilities

12 VDC output at 1 A, 12 watts rated
Captive screw terminal output connector
Universal 100-240 VAC, 50-60 Hz input
Full-load draw of just 14.6 watts, 0.3 A
Rated MTBF of 1,000,000 hours

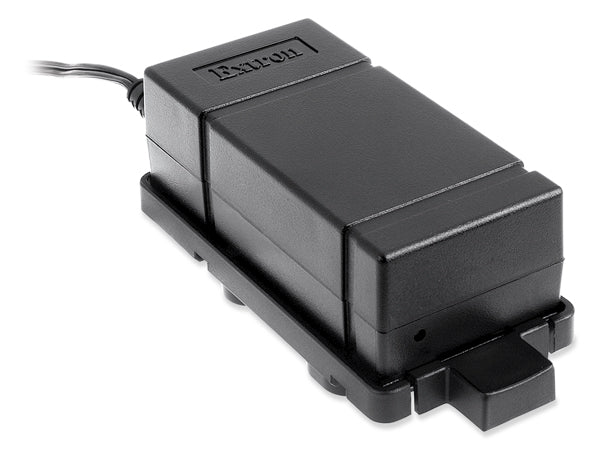

Mounts to racks, furniture, or poles with the included ZipClip 100

Where It Is Used

Desktop and rack installs where a single Extron interface or accessory needs its own regulated 12 volt line — lecterns, credenzas, equipment closets, and under-table AV enclosures.

Specifications at a Glance

Output: 12 VDC, 1 A, 12 W, captive screw
Input: 100-240 VAC, 50-60 Hz
Enclosure: 1.7 in H x 2.2 in W x 4.5 in D, plastic
Weight: 0.5 lb (0.3 kg)
Warranty: 3 years parts and labor

Also referenced as Extron PS1210C, PS-1210C, part number 7077501.

Specifications

Part Number: 70-775-01

Manufacturer: Extron

Model: PS 1210C

Condition: New

Power Output: 12 VDC, 1 A, 12 watts

Termination: Captive screw connector

Power Input: 100 VAC to 240 VAC, 50-60 Hz

No Load: 0.3 watts

Full Power: 14.6 watts, 0.3 A maximum

Ambient Temperature/Humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing. Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U rack shelf, with the included ZipClip 100 mounting clip, or by securing to rack rails with tie wraps

Furniture Mount: Yes, with the included ZipClip 100 mounting clip

Pole Mount: Yes, using tie wraps

Enclosure Type: High impact, high temperature plastic

Enclosure Dimensions: 1.7" H x 2.2" W x 4.5" D (1U high, one-eighth rack wide) (4.2 cm H x 5.5 cm W x 11.4 cm D) (Excludes power cords.)

Product Weight: 0.5 lb (0.3 kg)

Shipping Weight: 2 lbs (1 kg)

Vibration: Operating: 10-250 Hz, 0.25 Gp-p, 3 axes, 15 min. sweep

Safety, EMI/EMC: BSMI, CCC, CE, C-tick, c-UL, CISPR 22 Class B, CISPR 24, FCC Class B, GS, KC, NEC Class 2, PSE, S-mark, UL

Environmental: Complies with the appropriate requirements of CEC, EU code of conduct, Korea Energy Certification, Australia Energy Safe Certification, RoHS, WEEE. Meets energy efficiency level V and is marked with the UL Environment Energy Efficiency Certification (EEC) Mark.

MTBF: 1,000,000 hours

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | PS 1210 C 70-775-01 | Everlast Power Supplies

Brochure | PS 1210 C 70-775-01 | Alimentatori Everlast

Brochure | PS 1210 C 70-775-01 | Everlast 电源

Brochure | PS 1210 C 70-775-01 | Everlast-Netzteile

Brochure | PS 1210 C 70-775-01 | Fuentes de alimentación Everlast

Brochure | PS 1210 C 70-775-01 | Sources d'alimentation Everlast

Manual | PS 1210 C 70-775-01 | Cleaning Instruction Card

Manual | PS 1210 C 70-775-01 | PS 1205 C Installation Guide

Manual | PS 1210 C 70-775-01 | PS 1215 C Installation Guide

Manual | PS 1210 C 70-775-01 | PS 1220 Installation Guide

Manual | PS 1210 C 70-775-01 | PS 1230 Installation Guide

Manual | PS 1210 C 70-775-01 | PS 1242 Installation Guide

Manual | PS 1210 C 70-775-01 | PS 910, PS 1210, PS 1508 Series External Power Supplies Installation Guide

Specifications | PS 1210 C 70-775-01 | PS 1205, PS 1215, PS 1220, PS 1242 Series

Panel Drawing | PS 1210 C 70-775-01 | PS Series Desktop Power Supply

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron PS 1210C 12V 1A Captive Screw Power Supply 70-775-01

Name: Extron PS 1210C 12V 1A Captive Screw Power Supply 70-775-01
Brand: Extron
SKU: EXTRON-PS1210C-7077501
Availability: InStock

Manufacturer: Extron

Type: Integration Tools

Extron PS 1210C Power Supply

• Dedicated 12 VDC, 1 A output at 12 watts
• Captive screw terminal for a locking connection
• Universal 100-240 VAC input, 50-60 Hz
• Draws just 14.6 W at full load, 0.3 W idle
• 1,000,000 hour rated MTBF
• ZipClip 100 mount for rack, table, or pole

Product discontinued.
