Extron PowerCage 401 FOX DT HD SM Fiber Optic Transmitter
- • Two independent HDMI fiber transmitters on one PowerCage 401 slot, up to 8 per 1U rack
- • Singlemode reach up to 30 km (18.75 miles) on 1310 nm fiber
- • Pixel-accurate HDMI to 1920x1200 / 1080p60, HDCP-compliant with Key Minder
- • Embeds stereo or HDMI-derived audio plus 2-channel RS-232 pass-through
- • Hot-swappable module draws just 9.9 W, powered directly by the enclosure
- • EDID Minder keeps source handshakes stable for reliable power-on video
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

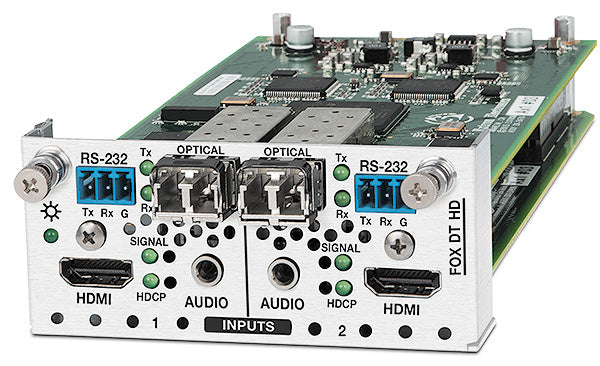

Extron PowerCage 401 FOX DT HD SM (part number 70-1092-12) — a hot-swappable, single-slot singlemode fiber transmitter built for the PowerCage 401 enclosure.
This dual-transmitter module puts two independent HDMI-over-fiber links on one card, letting integrators pack up to eight separate extension paths into a single 1U rack space. Each transmitter digitizes HDMI video with embedded or analog stereo audio and an RS-232 data channel, then sends the combined signal out over industry-standard LC fiber connectors rated for very long singlemode runs. Because the PowerCage 401 enclosure supplies power, cooling, and network management centrally, swapping a transmitter card takes seconds and never interrupts the rest of the chassis.
Key Capabilities
- Two independent HDMI transmitters per single-slot card, 4 LC fiber ports total
- Singlemode fiber reach up to 30 km (18.75 miles) on 1310 nm singlemode cable
- Pixel-accurate video to 1920x1200 / 1080p60, with 2K (2048x1080) supported undersampled
- Key Minder maintains continuous HDCP authentication for reliable digital switching
- EDID Minder keeps source EDID handshakes stable so displays wake correctly every time
- Draws just 9.9 watts per module, powered entirely by the PowerCage 401 chassis
Where It Is Used
The extreme singlemode reach suits campus-to-campus links, airports, stadiums, and government or medical facilities where HDMI sources sit kilometers from displays or matrix switching hardware. Because each PowerCage 401 chassis accepts multiple transmitter cards, integrators can scale a long-haul fiber backbone one link at a time as buildings come online.
Specifications at a Glance
- Singlemode operating distance: up to 30 km (18.75 miles)
- Maximum channel data rate: 4.25 Gbps
- Video input: 2 single-link HDMI, 640x480 up to 1920x1200 @ 60 Hz
- Power consumption: 9.9 watts, supplied by the enclosure
- Product weight: 0.8 lbs (0.4 kg)
Also referenced as Extron PowerCage401FOXDTHDSM, PowerCage-401-FOX-DT-HD-SM, part number 70109212.
