Manufacturer: Extron

Type: Fiber Optics

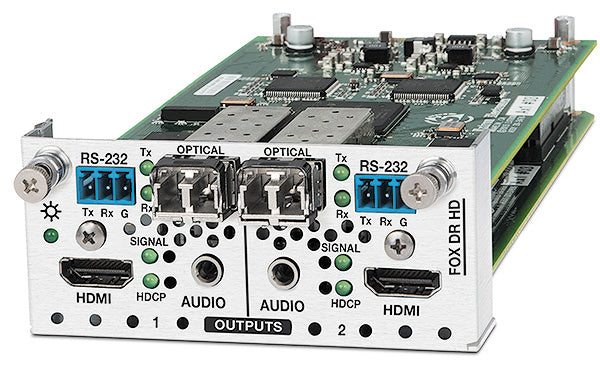

Extron PowerCage 401 FOX DR HD SM 70-1092-22 Singlemode Receiver

  • • Dual-channel singlemode fiber HDMI receiver module for the PowerCage 401 enclosure
  • • Receives 1920x1200 HDMI signals from FOX HD SM transmitters over singlemode fiber
  • • Singlemode fiber reach: up to 10 km on standard singlemode cable
  • • HDCP compliant, RS-232 pass-through, powered by PowerCage 401 enclosure
  • • Hot-swappable in the PowerCage 401 without powering down the system

Product discontinued.

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-POWERCAGE401FOXDRHDSM-70109222

Details

Part number 70-1092-22 — Dual Receiver - Singlemode

70-1092-22 is the singlemode version of a dual fiber optic receiver module that occupies one slot inside the PowerCage 401 enclosure. It contains two independent receivers that accept HDMI video, stereo audio, and RS-232 signals over singlemode fiber optic cabling, allowing an integrator to bring two separate sources to local displays without dedicating multiple slots or separate receiver chassis.

The module measures 1.60 in H x 3.50 in W x 8.00 in D, supports RGB and YCbCr formats up to 1920x1200 with horizontal frequencies of 24 kHz to 135 kHz, and de-embeds audio to analog stereo outputs with a response of 20 Hz to 20 kHz. It remains HDCP compliant, operates between +32 and +122 °F, and handles RS-232 at 9600 to 115200 baud. Select this part only when singlemode fiber is already installed, since the companion multimode unit uses different fiber type and distance parameters.
