Extron PowerCage 401 FOX DR HD MM 70-1092-21

Extron PowerCage 401 FOX DR HD MM 70-1092-21

Extron PowerCage 401 FOX DR HD MM 70-1092-21

Manufacturer: Extron

Type: Fiber Optics

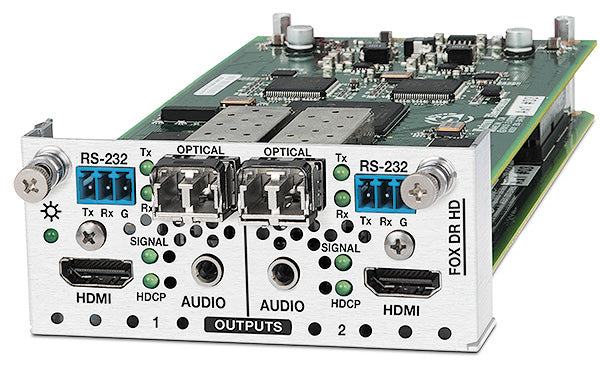

Extron PowerCage 401 FOX DR HD MM 70-1092-21 Multimode Receiver

  • • Dual-channel multimode fiber HDMI receiver module for the PowerCage 401 enclosure
  • • Receives 1920x1200 HDMI signals from FOX HD MM transmitters over multimode fiber
  • • Multimode fiber reach: up to 400 m at 1080p on OM3, or 400 m on OM4
  • • HDCP compliant, RS-232 pass-through, powered by PowerCage 401 enclosure
  • • Hot-swappable in the PowerCage 401 without powering down the system

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-POWERCAGE401FOXDRHDMM-70109221

Details

Part number 70-1092-21 — Dual Receiver - Multimode

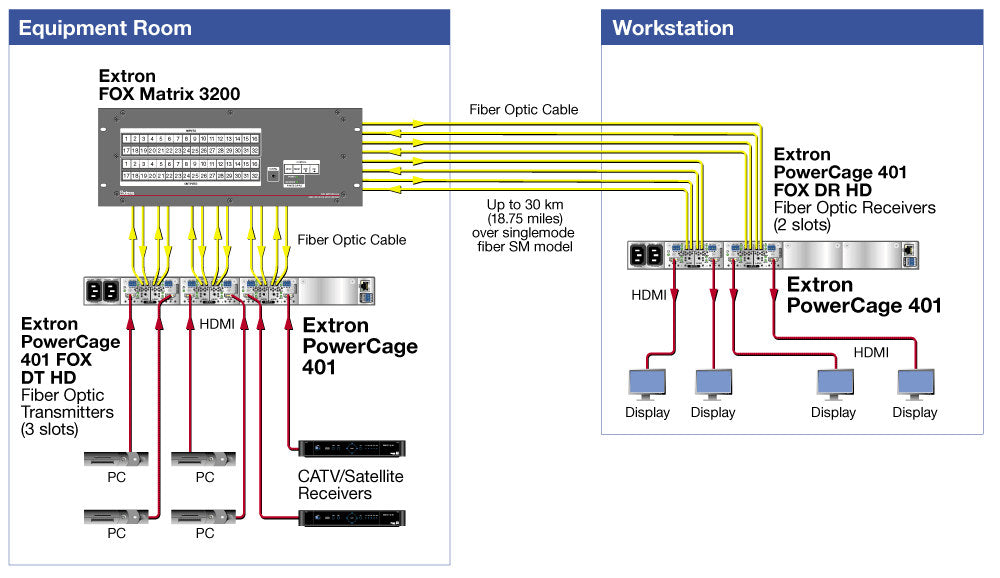

70-1092-21 provides two independent multimode fiber receivers in one slot of the PowerCage 401 enclosure. Integrators use it to extend HDMI video with embedded audio and RS-232 signals from distant sources to displays while keeping both channels inside a shared 1U frame, eliminating separate receiver boxes and their cabling.

The module occupies a single slot measuring 1.60 in H by 3.50 in W by 8.00 in D and supports pixel-for-pixel signals to 1920x1200 at horizontal rates of 24 kHz to 135 kHz. It extracts analog stereo audio, maintains HDCP compliance, accepts 9600 to 115200 baud RS-232, and operates from 32 to 122 °F with storage from -40 to 158 °F at 10 to 90% noncondensing humidity. Four bidirectional LC connectors handle the fiber links per board.
