Details

Extron PLS 440D (part number 42-372-03) — a 4+2 input PlenumVault Digital classroom system with MLC Plus 400 touchscreen control and ceiling projector mounting hardware.

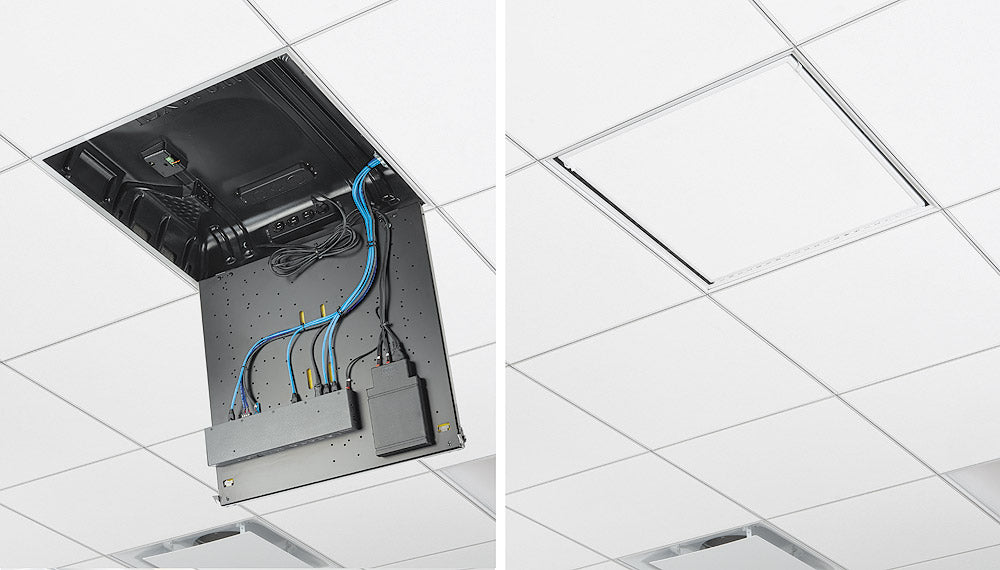

This is the fullest specification in the PlenumVault Digital range: four wallplate source positions, two switcher-mounted HDMI inputs, a graphical touch panel and the complete projector rigging. It suits rooms that are used by many different presenters, where a labelled touchscreen removes the guesswork that button legends cannot. The electronics stay hidden in the PVM 220 enclosure above the ceiling tile.

Key Capabilities

MLC Plus 400 touchscreen: 4.17 in IPS panel, 540 x 540, 400 nits, 1200:1 contrast
Four wallplate inputs plus two local HDMI inputs, up to six sources in total
Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
PCM 340 pole mount carries 50 lbs (22.7 kg) and drops 1.5 in to 23.0 in
PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace

Where It Is Used

Flagship lecture rooms, shared teaching spaces on university campuses, corporate learning centres and clinical simulation suites — rooms with several source positions, projector display and a suspended ceiling to conceal the AV rack.

Specifications at a Glance

Configuration: 4+2 digital PlenumVault, ceiling mount, MLC Plus 400
Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
Power draw: 30.4 watts at 12 VDC, or 37.1 watts including the external supply
Controller memory: 1 GB SDRAM, 1 GB flash
Warranty: 3 years parts and labor

Also referenced as Extron PLS440D, PLS-440D, part number 4237203.

Specifications

Part Number: 42-372-03

Manufacturer: Extron

Model: PLS 440D

Condition: New

Configuration: 4+2 digital PlenumVault, ceiling mount, MLC Plus 400

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Audio Outputs: 1 line output, stereo/mono, balanced/unbalanced, fixed/variable; 1 power amplifier, stereo or dual mono, 2 channels

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 400 MediaLink Plus touchscreen controller

Control Panel Display: 4.17 in (106 mm) diagonal IPS color LCD; 540 x 540; 183 PPI; 1:1 aspect ratio; 16.7 M colors; 400 nits; 1200:1 contrast; LED backlight; capacitive touchscreen

Control Panel Memory: 1 GB SDRAM, 1 GB flash

Control Panel Ethernet: 1 female RJ-45; 10/100Base-T, half/full duplex with autodetect

Control Panel Power: Power over Ethernet, 802.3af class 3; 3.5 watts device

Control Panel Ambient Temperature: Operating +32 to +122 F (0 to +40 C), 10% to 90% noncondensing

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 30.4 watts at 12 VDC; device and power supply 37.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Ceiling mount, with included ceiling mounting kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

PVM 220 Mounting Kit: Drop ceiling mountable within air-handling space; 15 lbs (6.8 kg) maximum load on door; 6.3 in H x 23.8 in W x 23.8 in D (160 x 605 x 605 mm); 16.0 lbs (7.3 kg)

PCM 340 Projector Drop Ceiling Mount: 50.0 lbs (22.7 kg) maximum load; 1.5 in to 23.0 in drop with 21.5 in adjustability in 0.5 in steps; 25 in pipe, 1.5-11.5 NPT

UPB 125 Projector Bracket: 40 lbs (18.1 kg) maximum load; plus or minus 5 degrees roll, plus or minus 20 degrees pitch, 360 degrees yaw; 3.2 in H x 7.0 in W x 7.0 in D

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, C-tick, Ecofficient Level 3, FCC Class A, ICES, VCCI, UL; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor
