Extron PLS 411D PlenumVault Digital Classroom AV System
- • 4+2 input PlenumVault classroom system supplied without a projector mount
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron PLS 411D (part number 42-331-23) — the current 4+2 input PlenumVault Digital classroom system, shipped without projector mounting hardware.

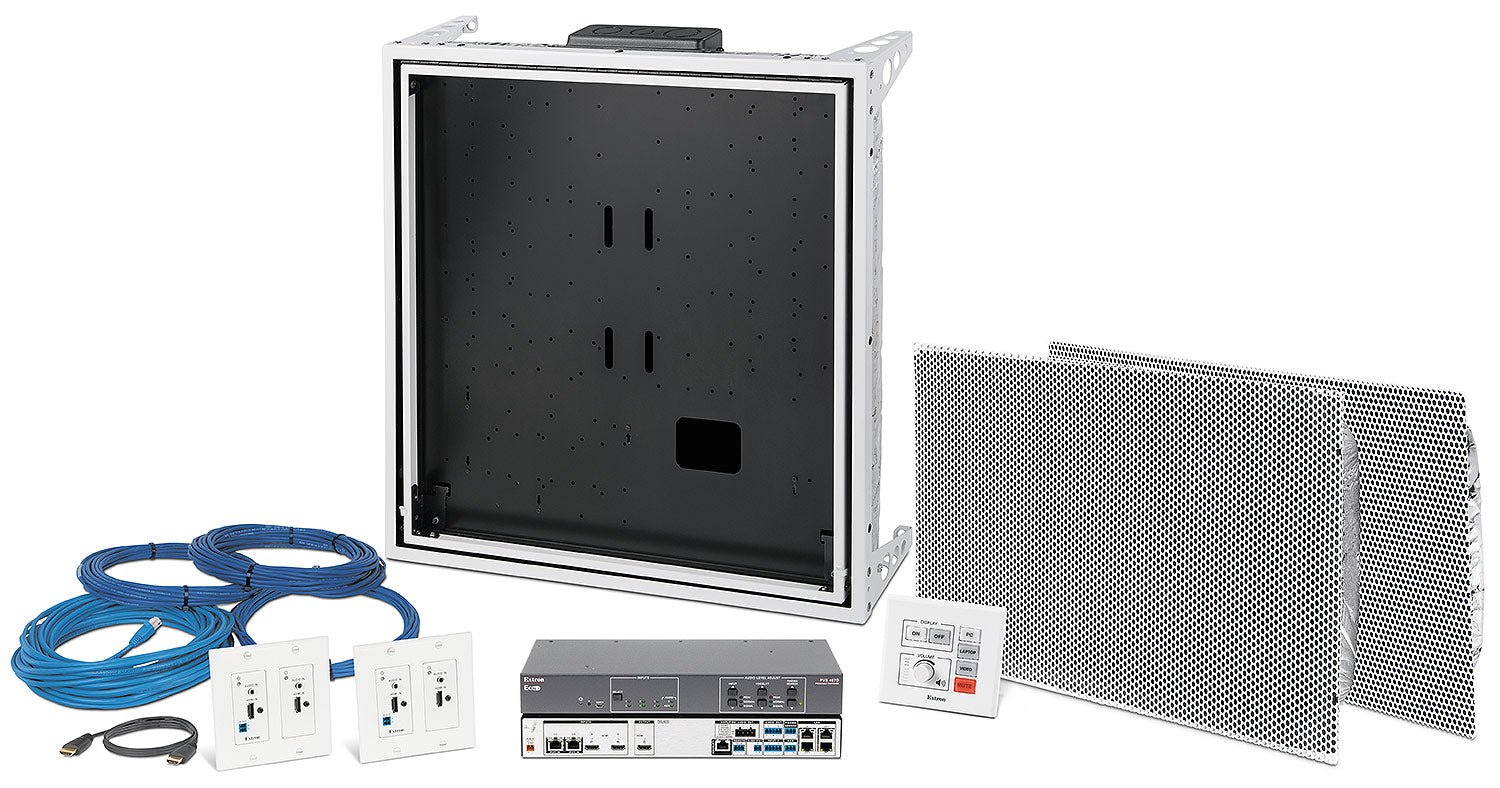

Four wallplate source positions and two switcher-mounted HDMI inputs give this configuration the widest connectivity in the PlenumVault Digital line, while leaving the display hardware entirely to the specifier. That suits flat panel rooms and refurbishments equally. The electronics, the MediaLink control panel, the Flat Field ceiling speakers, the interconnect cabling and the PVM 220 plenum enclosure all ship in the box.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage

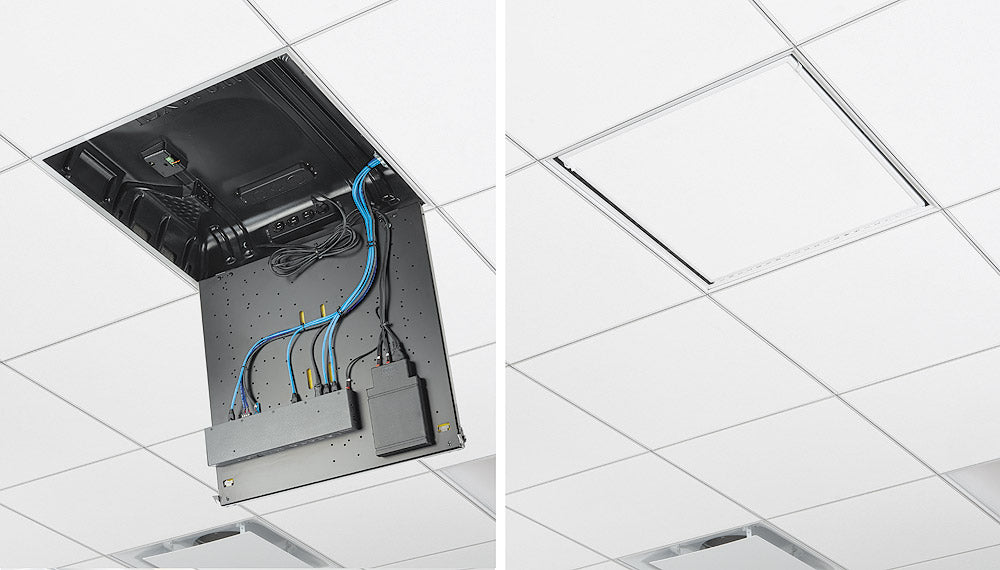

- PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
Where It Is Used
Large flat panel teaching rooms, divisible training spaces, boardroom-style seminar rooms and campus lecture theatres where several people bring their own sources and the ceiling void is the natural home for the AV electronics.
Specifications at a Glance
- Configuration: 4+2 input digital PlenumVault, no mount
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Power draw: 30.4 watts at 12 VDC, or 37.1 watts including the external supply
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron PLS411D, PLS-411D, part number 4233123.
