Extron PLS 411D PlenumVault Digital Classroom AV System
- • 4+2 input PlenumVault classroom system supplied without a projector mount
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
- • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
- • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
- • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron PLS 411D (part number 42-331-13) — a 4+2 input PlenumVault Digital classroom AV system supplied without projector mounting hardware.
This variant answers a common procurement problem: the room needs the full four-plus-two source capability, but the display is a flat panel, or the projector mount is already in place, or the ceiling structure calls for a specialist bracket. Extron leaves the mount out and includes everything else — PVS 407D switcher and amplifier, MLC Plus 100 control panel, wallplate transmitters, Flat Field speakers, cabling and the PVM 220 plenum enclosure.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable

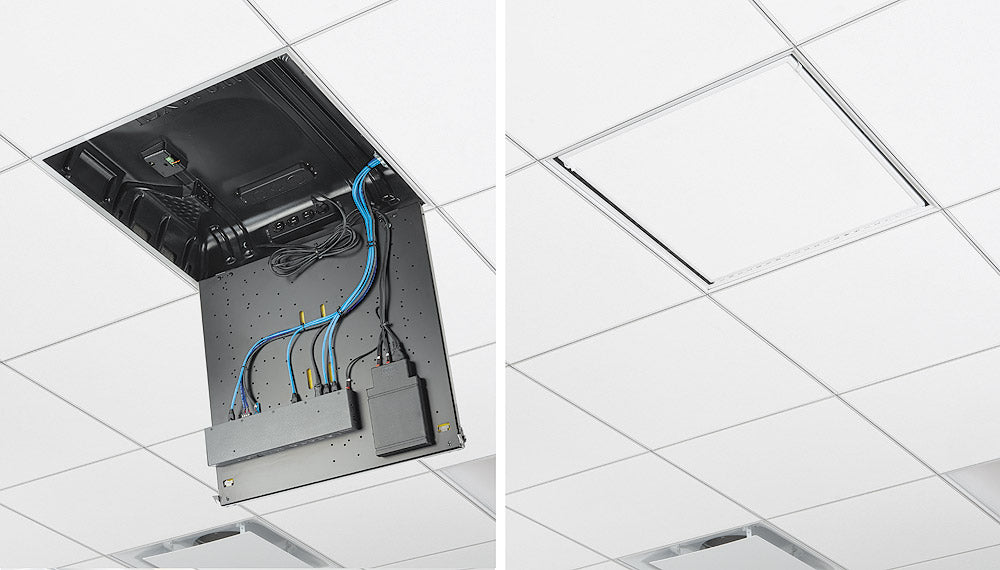

- PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
- VoiceLift receiver input accepts a wireless instructor microphone system
Where It Is Used
Flat panel lecture rooms, multi-source teaching spaces being refurbished around existing mounts, and laboratory or clinical instruction rooms where the ceiling void is available for the electronics but the display hardware is specified separately.
Specifications at a Glance
- Configuration: 4+2 input digital PlenumVault, no mount
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Power draw: 30.4 watts at 12 VDC, or 37.1 watts including the external supply
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron PLS411D, PLS-411D, part number 4233113. Extron lists this part number as retired.
