Extron PLS 401D PlenumVault Digital Classroom AV System
- • Complete 4+2 input PlenumVault classroom system on the Extron PVS 407D
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
- • UPB 125 bracket aims the projector: 5 deg roll, 20 deg pitch, 360 deg yaw
- • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

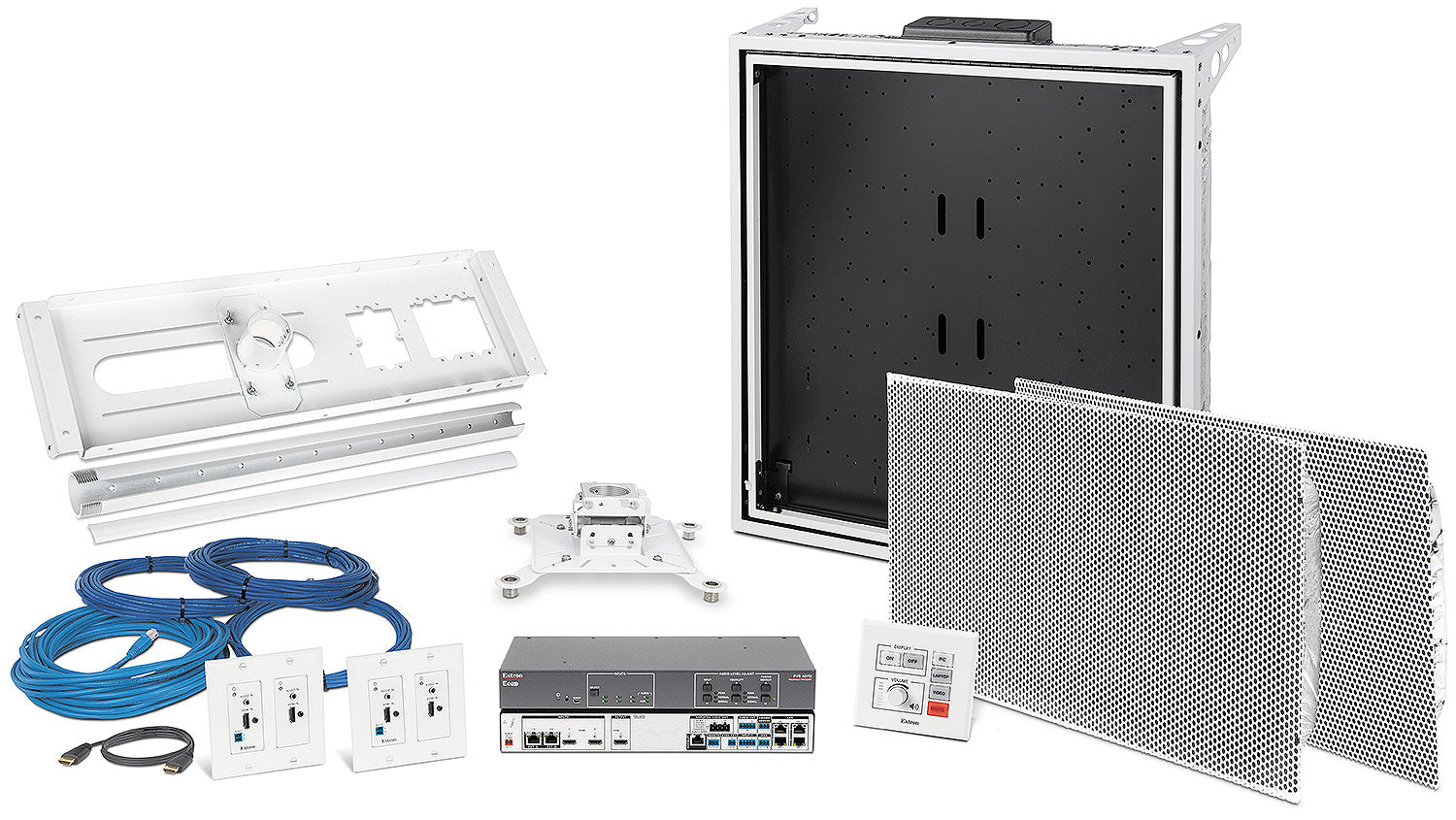

Extron PLS 401D (part number 42-321-23) — the current 4+2 input PlenumVault Digital classroom system, complete with ceiling projector mounting hardware.
Two wallplate positions instead of one is the practical difference here. A lectern plate and a second plate at a student table or side wall both feed the same PVS 407D switcher over a single shielded twisted pair run each, while two more HDMI inputs on the switcher body stay free for permanently installed devices. The whole electronics package sits inside the PVM 220 enclosure above the ceiling grid, and the projector hangs from the supplied PCM 340 pole with a UPB 125 bracket for aiming.
Key Capabilities
- Four wallplate inputs plus two local HDMI inputs, up to six sources in total
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
- UPB 125 bracket trims the projector by plus or minus 5 degrees roll and 20 degrees pitch
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
- PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
Where It Is Used
Larger classrooms, lecture rooms and combined teaching or meeting spaces where more than one person needs to connect a source. Widely specified across school districts, university campuses, corporate learning centres and hospital education departments.
Specifications at a Glance
- Configuration: 4+2 input digital PlenumVault, ceiling mount
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Power draw: 30.4 watts at 12 VDC, or 37.1 watts including the external supply
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron PLS401D, PLS-401D, part number 4232123.
