Extron PLS 401D 42-321-13

Extron PLS 401D PlenumVault Digital 4+2 Input AV System 42-321-13

Extron PLS 401D PlenumVault Digital 4+2 Input AV System 42-321-13

Manufacturer: Extron

Type: Classroom AV Systems

Extron PLS 401D PlenumVault Digital Classroom AV System

  • • Complete 4+2 input PlenumVault classroom system on the Extron PVS 407D
  • • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
  • • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
  • • Draws 30.4 watts at 12 VDC, 37.1 watts with the external supply
  • • PCM 340 pole mount holds 50 lbs and drops 1.5 in to 23.0 in
  • • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
  • • MLC Plus 100 button panel control with a 3 year Extron warranty

Product discontinued.

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-PLS401D-4232113

Details

Extron PLS 401D (part number 42-321-13) — a 4+2 input PlenumVault Digital classroom AV system supplied with ceiling projector mounting hardware.

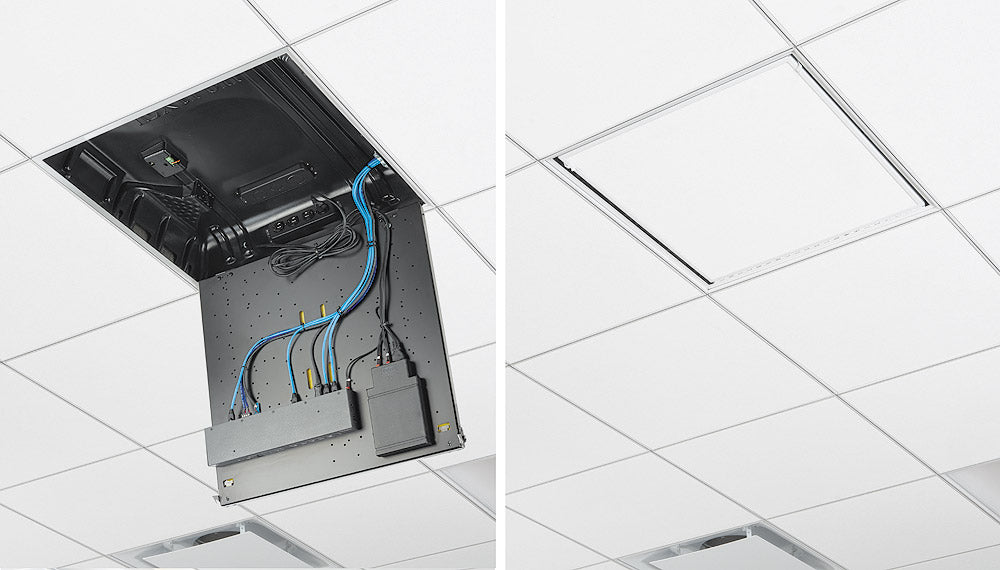

The 4+2 build is the one to choose when a room has more places people plug in: two wallplate positions rather than one, plus the pair of local HDMI inputs on the switcher itself for fixed devices such as a streaming decoder or a wireless presentation receiver. Everything mounts inside the PVM 220 enclosure above the ceiling tiles, and the projector rides on the supplied PCM 340 pole and UPB 125 bracket.

Key Capabilities

  • Four wallplate inputs plus two local HDMI inputs, up to six sources in total
  • Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
  • Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
  • Draws 30.4 watts at 12 VDC, or 37.1 watts including the external power supply
  • Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
  • PCM 340 pole mount carries 50 lbs (22.7 kg) and drops 1.5 in to 23.0 in
  • PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace

Where It Is Used

Larger teaching rooms and lecture spaces with several source positions — an instructor station plus a student table or side wall plate — in schools, universities, corporate learning centres and clinical education suites with suspended ceilings.

Specifications at a Glance

  • Configuration: 4+2 input digital PlenumVault, ceiling mount
  • Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
  • Power draw: 30.4 watts at 12 VDC, or 37.1 watts including the external supply
  • Controller: MLC Plus 100 button panel
  • Warranty: 3 years parts and labor

Also referenced as Extron PLS401D, PLS-401D, part number 4232113. Extron lists this part number as retired.
