Extron PLS 211D PlenumVault Digital Classroom AV System
- • 2+2 input PlenumVault classroom system supplied without a projector mount
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Two Class D channels, 25 watts rms each into 4 or 8 ohms
- • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
- • FF 120 Flat Field speakers give 170 degree coverage from a ceiling tile
- • MLC Plus 100 button panel control - no programming required
- • Backed by a 3 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron PLS 211D (part number 42-330-23) — the current 2+2 input PlenumVault Digital classroom system, shipped without projector mounting hardware.
Rooms fitted with a large flat panel do not need a pole mount, and retrofit projects often inherit one already bolted to the deck. The PLS 211D covers both cases: identical electronics to the mount-equipped version, minus the projector hardware. The PVS 407D switcher and its Class D amplifier, the MLC Plus 100 panel, the input wallplates, ceiling speakers, cabling and the PVM 220 plenum enclosure are all included.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
- FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage

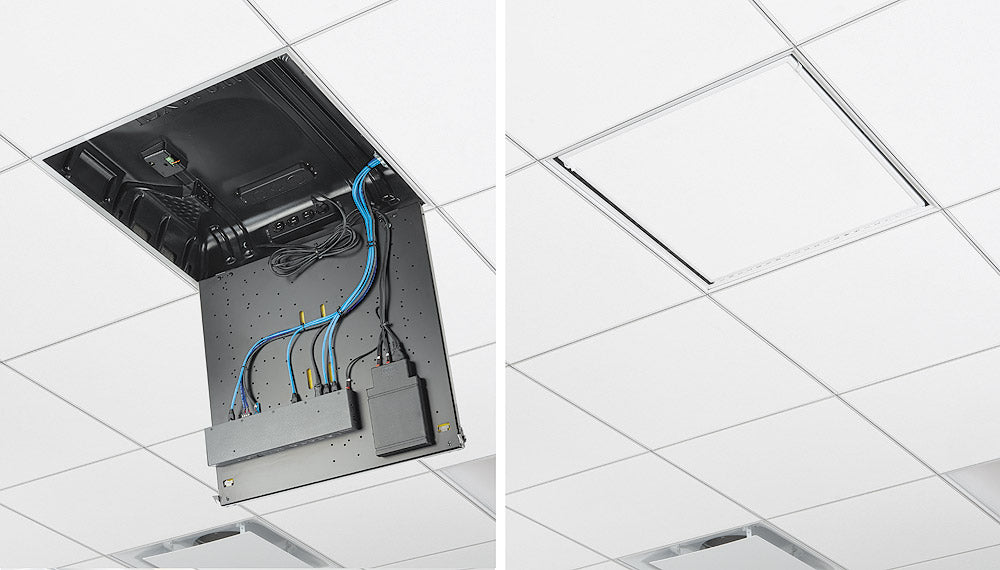

- PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
- Ecofficient Level 3 switcher design keeps standby energy use down
Where It Is Used
Flat panel teaching rooms, huddle and breakout spaces, refurbished classrooms with an existing projector mount, and clinical or laboratory instruction rooms where a suspended ceiling can conceal the AV electronics.
Specifications at a Glance
- Configuration: 2+2 input digital PlenumVault, no mount
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Power draw: 23.5 watts at 12 VDC, or 27.1 watts including the external supply
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron PLS211D, PLS-211D, part number 4233023.
