Extron PLS 211D 42-330-13

Extron PLS 211D PlenumVault Digital 2+2 Input AV System 42-330-13

Extron PLS 211D PlenumVault Digital 2+2 Input AV System 42-330-13

Manufacturer: Extron

Type: Classroom AV Systems

Extron PLS 211D PlenumVault Digital Classroom AV System

  • • 2+2 input PlenumVault classroom system supplied without a projector mount
  • • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
  • • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
  • • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
  • • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
  • • MLC Plus 100 button panel control - no programming required
  • • Backed by a 3 year Extron parts and labor warranty

Product discontinued.

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-PLS211D-4233013

Details

Extron PLS 211D (part number 42-330-13) — a 2+2 input PlenumVault Digital classroom system supplied without projector mounting hardware.

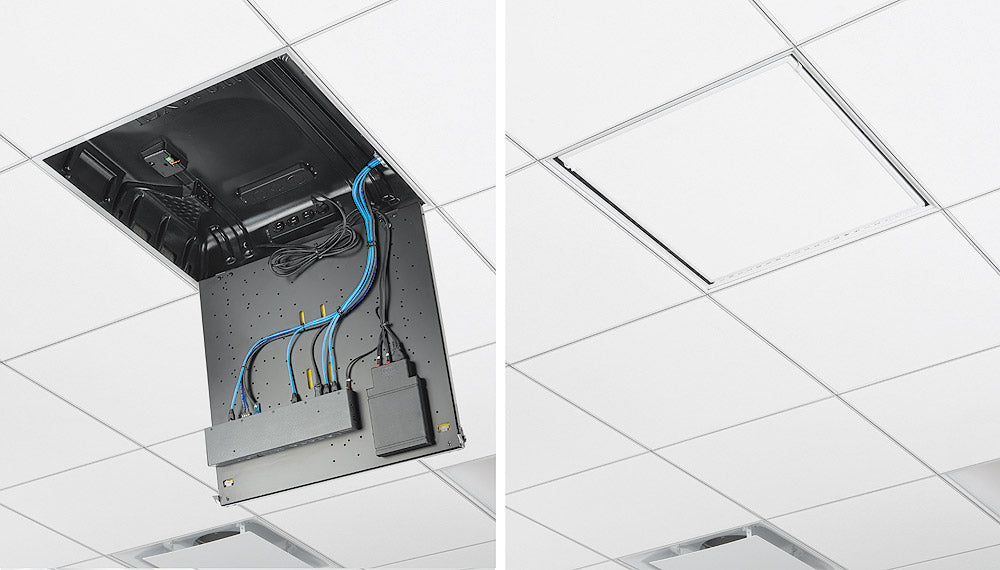

This is the version to specify when the room already has a display, or when the projector mount is being sourced separately to suit an unusual ceiling. Everything else that makes up a PlenumVault room is present: the PVS 407D switcher and amplifier, the MLC Plus 100 control panel, wallplate transmitters, Flat Field ceiling speakers, cabling and the PVM 220 enclosure that holds the electronics above the tile grid.

Key Capabilities

  • Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
  • Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
  • Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
  • Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
  • Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
  • PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
  • VoiceLift receiver input accepts a wireless instructor microphone system

Where It Is Used

Flat panel classrooms, retrofit projects where a projector mount is already installed, and rooms with structural ceilings that call for a third-party mounting solution. Common in K-12 and university teaching spaces, corporate training rooms and clinical education suites.

Specifications at a Glance

  • Configuration: 2+2 input digital PlenumVault, no mount
  • Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
  • Power draw: 23.5 watts at 12 VDC, or 27.1 watts including the external supply
  • Controller: MLC Plus 100 button panel
  • Warranty: 3 years parts and labor

Also referenced as Extron PLS211D, PLS-211D, part number 4233013. Extron lists this part number as retired.
