Details

Extron PLS 201D (part number 42-320-23) — the current 2+2 input PlenumVault Digital classroom system, supplied with ceiling projector mounting hardware.

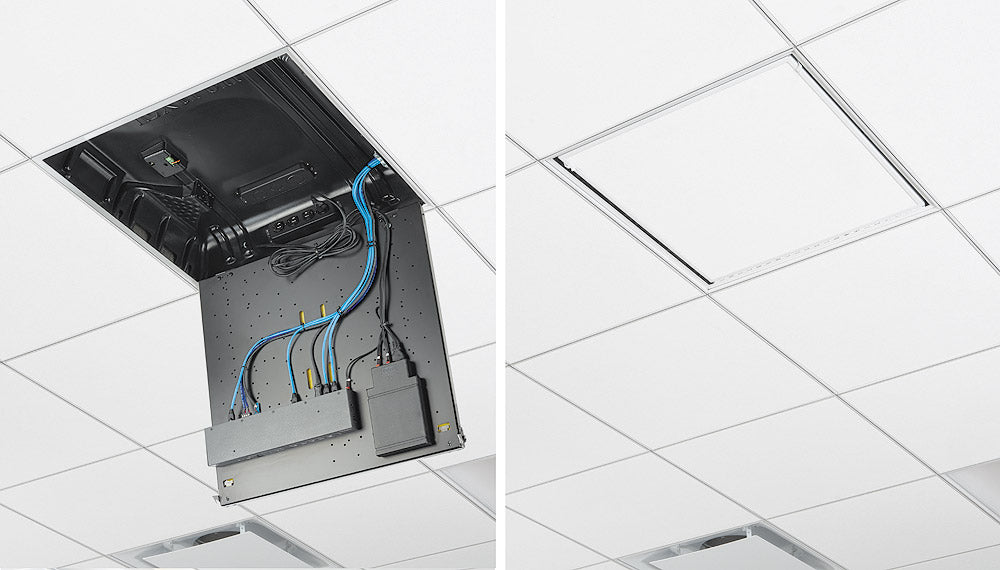

The idea behind PlenumVault is that a classroom should show almost no equipment. Everything that switches, amplifies and controls lives inside a PVM 220 enclosure above the suspended ceiling; what the instructor touches is a wall panel and a pair of input plates. Because the enclosure and the Flat Field speakers carry UL 2043 listings, the whole assembly is legal to install inside an air-handling ceiling void rather than in a rack closet down the corridor.

Key Capabilities

Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
Two amplifier channels, each Class D rated at 25 watts rms into 4 or 8 ohms
Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
FF 120 Flat Field speakers drop into a 2 x 2 ft or 2 x 4 ft tile, 170 degree coverage
UPB 125 bracket trims the projector by plus or minus 5 degrees roll and 20 degrees pitch

Where It Is Used

K-12 and higher-education classrooms, corporate training suites, seminar and breakout rooms, and hospital or laboratory teaching spaces — anywhere a suspended ceiling can hide the electronics and the room needs projector-based presentation with reinforced audio.

Specifications at a Glance

Configuration: 2+2 input digital PlenumVault, ceiling mount
Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
Power draw: 23.5 watts at 12 VDC, or 27.1 watts including the external supply
Controller: MLC Plus 100 button panel
Warranty: 3 years parts and labor

Also referenced as Extron PLS201D, PLS-201D, part number 4232023.

Specifications

Part Number: 42-320-23

Manufacturer: Extron

Model: PLS 201D

Condition: New

Configuration: 2+2 input digital PlenumVault, ceiling mount

System Switcher: Extron PVS 407D switcher/power amplifier

Video Inputs: Inputs 1-6 HDMI (or DVI) digital video; inputs 2 and 4 can be analog RGB

Video Input Connectors: 2 female RJ-45, 2 female HDMI type A

Resolution Range: Up to 4096x2160 @ 30 Hz, 3840x2160 @ 30 Hz; 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling

Maximum Data Rate: 10.2 Gbps (3.4 Gbps per color)

Maximum Pixel Clock: 300 MHz

Frame Rate: 24, 25, 30, 50 or 60 fps

Chroma Sampling: 4:4:4, 4:2:2 or 4:2:0

Color Bit Depth: 8 bits per color

Video Standards: DVI 1.0, HDMI 1.4, HDCP 1.4, CEA-861E

Video Output: 1 single link HDMI (or DVI-D), 1 female HDMI type A

Audio Inputs: 2 proprietary signals from Extron PVT Series wallplate transmitters; 1 stereo balanced/unbalanced (input 7)

Audio Input Connectors: 2 female RJ-45; 1 female 3.5 mm captive screw connector, 5 pole

VoiceLift Receiver Input: 1 female RJ-45, -10 dBV (316 mVrms) nominal level

Aux Input: 1 female 3.5 mm captive screw connector, 3 pole

Audio Outputs: 1 line output, stereo/mono, balanced/unbalanced, fixed/variable; 1 power amplifier, stereo or dual mono, 2 channels

Amplifier Type: Class D

Amplifier Output Power: 25 watts (rms) per channel (1 watt tolerance) at 4/8 ohms, 20 Hz to 20 kHz, 1% THD

Amplifier Impedance: 4/8 ohms single channel; 4/8 ohms stereo

Ethernet Switch: Unmanaged; 4 female RJ-45; 10/100Base-T with autodetect

Control: MLC Plus 100 MediaLink Plus button panel controller

Twisted Pair Transmission: Up to 150' (46 m) for 2K, or up to 130' (40 m) for 4K/30 Hz, using Extron XTP DTP 24 cable

Included Cable Length: 35' (11 m)

Cable Requirements: Solid conductor, 24 AWG or better; 400 MHz bandwidth and above; STP

Termination Standard: TIA/EIA T568A or T568B; included Extron cables are T568B

Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4 A, 48 watts or 12 VDC, 4.2 A, 50 watts

Power Input Requirements: 12 VDC, 3 A

Power Consumption: Device 23.5 watts at 12 VDC; device and power supply 27.1 watts at 110-240 VAC, 50-60 Hz

Switcher Mounting: Ceiling mount, with included ceiling mounting kit

Switcher Enclosure Dimensions: 1.9 in H x 13.5 in W x 3.5 in D (48 x 343 x 89 mm)

Switcher Weight: 2.9 lbs (1.3 kg) including power supply (1.1 lbs / 0.5 kg)

PVM 220 Mounting Kit: Drop ceiling mountable within air-handling space; 15 lbs (6.8 kg) maximum load on door; 6.3 in H x 23.8 in W x 23.8 in D (160 x 605 x 605 mm); 16.0 lbs (7.3 kg)

PCM 340 Projector Drop Ceiling Mount: 50.0 lbs (22.7 kg) maximum load; 1.5 in to 23.0 in drop with 21.5 in adjustability in 0.5 in steps; 25 in pipe, 1.5-11.5 NPT

UPB 125 Projector Bracket: 40 lbs (18.1 kg) maximum load; plus or minus 5 degrees roll, plus or minus 20 degrees pitch, 360 degrees yaw; 3.2 in H x 7.0 in W x 7.0 in D

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile

Regulatory Compliance: CE, c-UL, C-tick, Ecofficient Level 3, FCC Class A, ICES, VCCI, UL; UL listed for plenum airspaces per UL 2043 (excluding the power supply); UL 60065 safety; RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | PLS 201D 42-320-23 | AV Solutions for Instructional Spaces

Brochure | PLS 201D 42-320-23 | Soluciones AV para espacios educativos

Brochure | PLS 201D 42-320-23 | Solutions audiovisuelles pour espaces pédagogiques

Manual | PLS 201D 42-320-23 | Classroom AV System Installation Guide

Manual | PLS 201D 42-320-23 | Cleaning Instruction Card

Manual | PLS 201D 42-320-23 | Network Ports, Protocols, and Licenses

Manual | PLS 201D 42-320-23 | PoleVault Digital Classroom with MLC Plus 100 Controller Quick Reference Guide

Manual | PLS 201D 42-320-23 | PoleVault Digital Classroom with MLC Plus 84 D Controller Quick Reference Guide

Manual | PLS 201D 42-320-23 | PoleVault Digital Switcher Systems Installation Guide

Manual | PLS 201D 42-320-23 | PVM 220 Installation Guide

Manual | PLS 201D 42-320-23 | PVM 220 PlenumVault UL 2043 Approved Products

Manual | PLS 201D 42-320-23 | PVS 407D Digital Switcher User Guide

Manual | PLS 201D 42-320-23 | PVS 407D Setup Guide

Manual | PLS 201D 42-320-23 | UPB 125 Installation Guide

Specifications | PLS 201D 42-320-23 | Extron WallVault® and PlenumVault® Digital Systems (for PVS 407D)

Specifications | PLS 201D 42-320-23 | PVS 407D PoleVault Digital Switcher
