Extron PLS 201D PlenumVault Digital Classroom AV System
- • Complete 2+2 input PlenumVault classroom system built on the Extron PVS 407D
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms

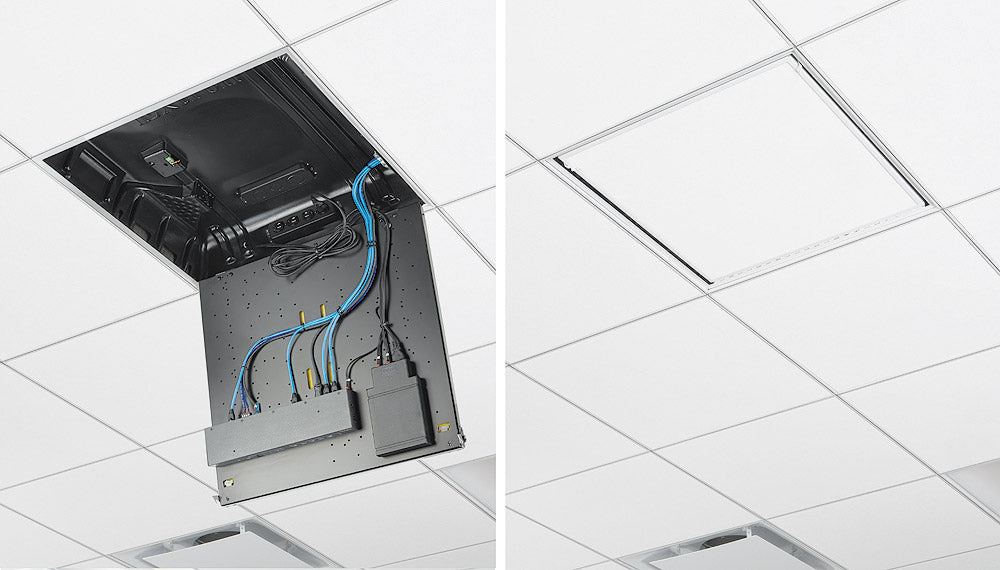

- • PVM 220 enclosure is UL 2043 listed for plenum airspace installation
- • PCM 340 pole mount adjusts 1.5 in to 23.0 in in half-inch steps
- • MLC Plus 100 button panel control - no programming required
- • Backed by a 3 year Extron parts and labor warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron PLS 201D (part number 42-320-13) — a complete 2+2 input PlenumVault Digital classroom AV system supplied with projector mounting hardware.
Classroom AV normally arrives as a stack of separate purchases: switcher, amplifier, speakers, control panel, input plates, cable and mounts, each on its own line item and each needing to be made to agree with the others. Extron ships the whole set as one system here. The PVS 407D switcher, Flat Field ceiling speakers, an MLC Plus 100 control panel, wallplate transmitters, the PVM 220 plenum enclosure and the projector mounting hardware all come in the box. Only the display and the sources are added on site.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
- PVM 220 enclosure is UL 2043 listed for mounting inside plenum airspace
- PCM 340 pole mount drops from 1.5 in to 23.0 in in half-inch increments
Where It Is Used
Built for teaching spaces with suspended ceilings — general classrooms, seminar rooms, lecture rooms, corporate training centres and campus multipurpose rooms — where the electronics need to disappear above the tile grid and the only visible parts are the wall control panel, the input plates and the ceiling speakers.
Specifications at a Glance
- Configuration: 2+2 input digital PlenumVault, ceiling mount
- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Power draw: 23.5 watts at 12 VDC, or 27.1 watts including the external supply
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron PLS201D, PLS-201D, part number 4232013. Extron lists this part number as retired.
