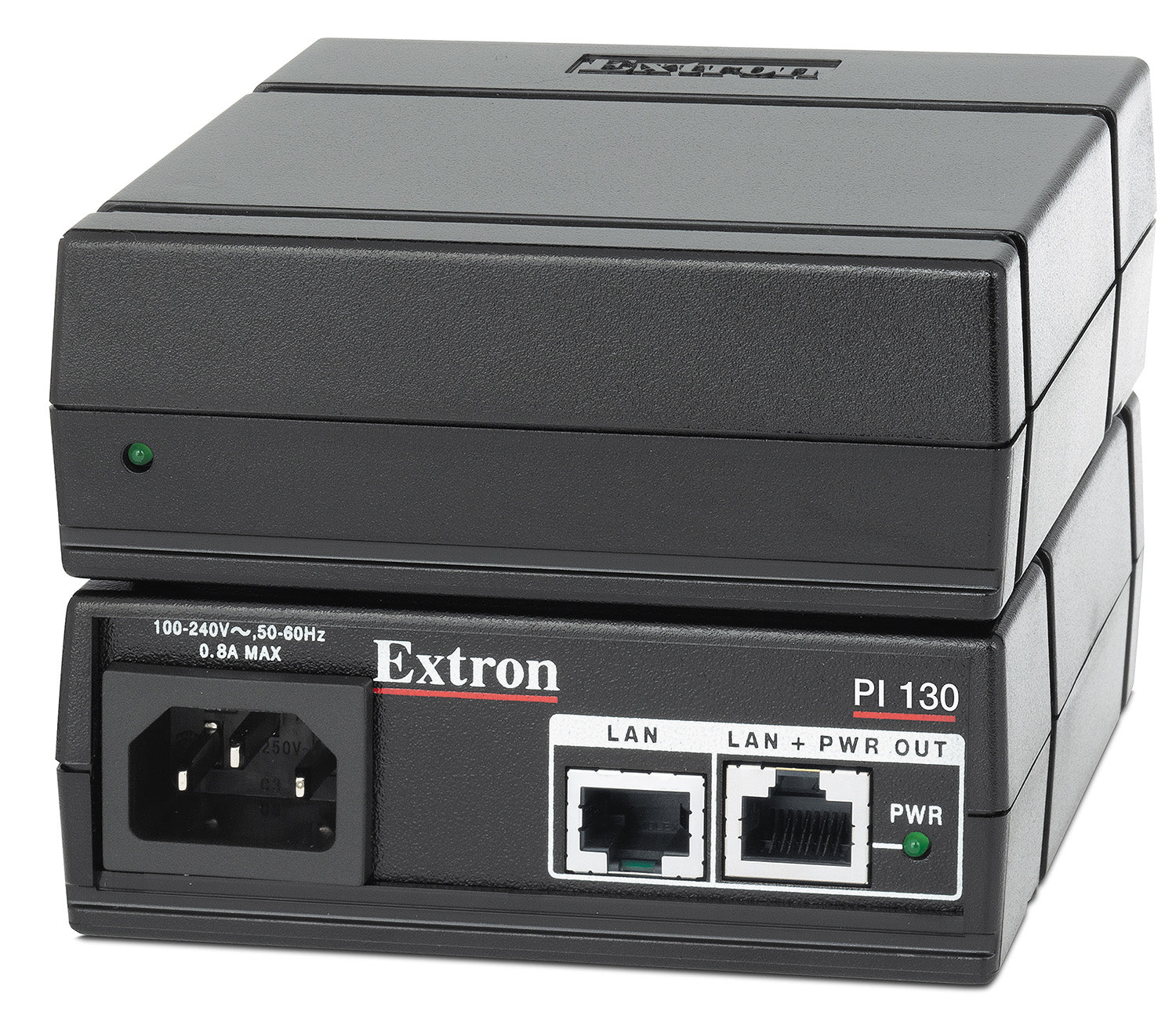

The Extron PI 130 (60-1361-02) is an 802.3at PoE+ power injector that adds Gigabit Ethernet pass-through and 56 VDC power to a single Cat cable run. It delivers up to 30 watts of PoE+ power at 0.5 A while passing 10/100/1000Base-T data on the same downstream connector.

Powered network devices such as TouchLink Pro touchpanels and cameras often need more power than a standard switch port can deliver, and running a separate power cable is not always practical. The PI 130 solves this by injecting PoE+ power directly onto the Ethernet run at up to 89.30% efficiency, so a single cable carries both data and power to the device.

Key Capabilities

• Delivers 56 VDC, 0.5 A, 30 watts of 802.3at PoE+ power
• 10/100/1000Base-T Gigabit Ethernet pass-through
• Up to 89.30% efficiency at full load, 230 VAC
• Rack, furniture, or pole mountable with the included ZipClip 200
• Convection cooled with no vents for quiet operation

Where It Is Used

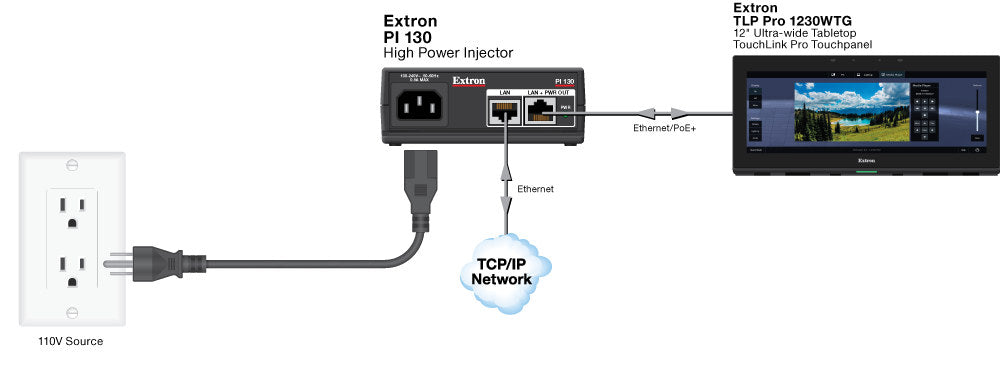

Integrators deploy the PI 130 in equipment racks and furniture installs to power PoE+ devices such as TouchLink Pro touchpanels, cameras, and network endpoints that draw more current than a standard PoE switch port supplies, using its quarter-rack enclosure to fit tight rack or under-table spaces.

Specifications at a Glance

• Power output: 56 VDC, 0.5 A, 30 watts (802.3at PoE+)
• Ethernet: 10/100/1000Base-T pass-through
• Enclosure: 1.7" H x 4.3" W x 4.5" D, quarter rack wide
• Product weight: 0.6 lb (0.3 kg)

Also referenced as PI130, PI-130, part number 6013602.
