Extron PI 115 60-1233-02 Single-Port PoE Injector for XTP
- • Single-port 802.3af PoE power injector specifically tested for XTP Systems
- • Maintains high data-rate signal integrity on XTP twisted pair links
- • 48 VDC output, up to 16.8 W per port, midspan power injection
- • ZipClip 200 under-desk mount kit included for installation flexibility
- • UL/c-UL listed, CE compliant. 7-year Everlast PSU warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

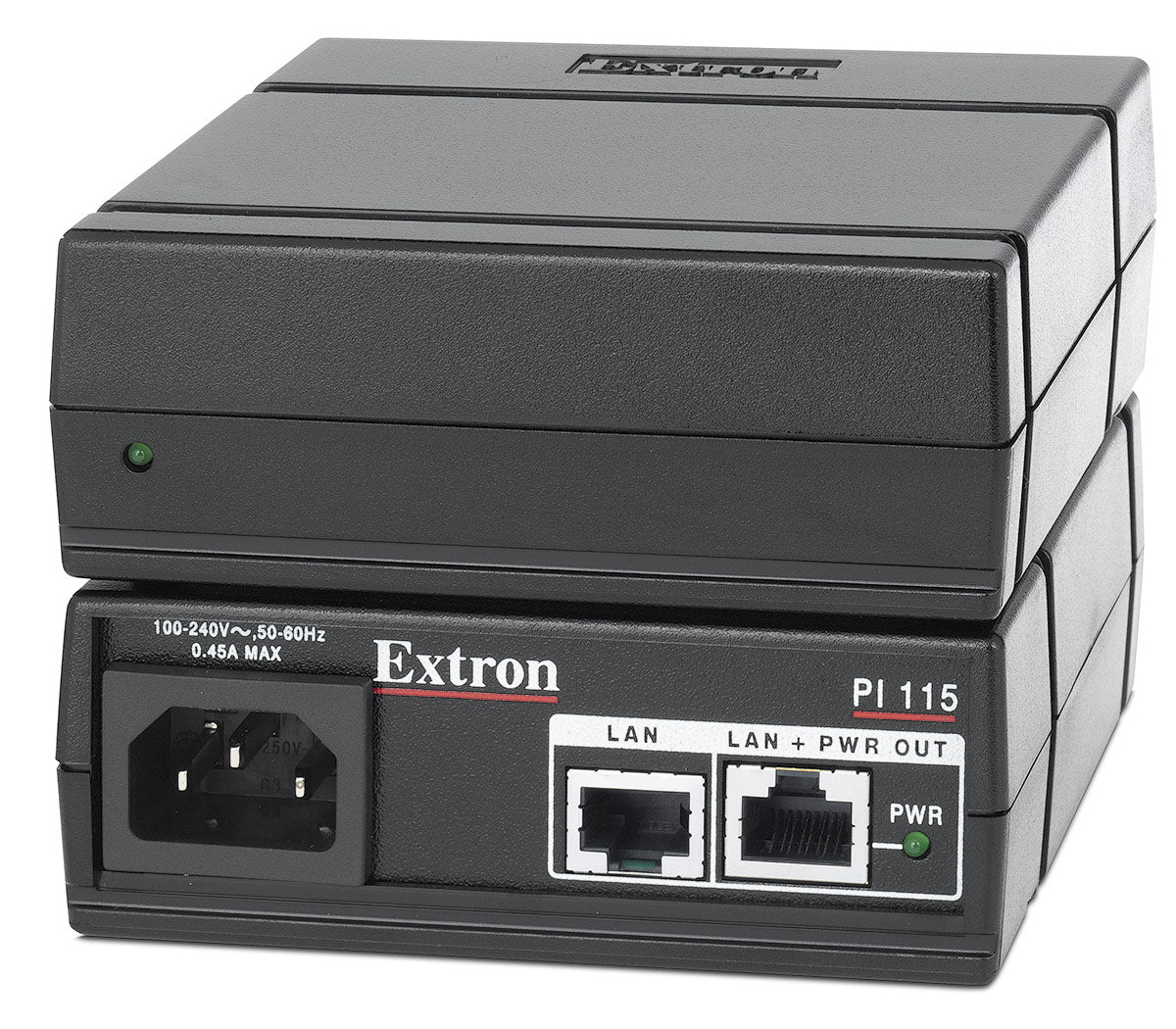

Extron PI 115 (part number 60-1233-02) — a single-port PoE power injector for XTP Systems and other 802.3af-compatible network endpoints.
This injector delivers 48 VDC at up to 16.8 W over a single RJ-45 pass-through port, letting integrators power an XTP transmitter, receiver, or compatible touchpanel without running a separate power cable to the device location. It sits anywhere along a Gigabit Ethernet run or directly between two endpoints, passing 10/100/1000Base-T data through unaffected while adding power. A quarter-rack, convection-cooled enclosure and included ZipClip 200 mounting kit make it easy to place in a rack, under furniture, or pole-mounted near the powered device.
Key Capabilities
- 48 VDC / 16.8 W PoE output for 802.3af-compatible devices
- 10/100/1000Base-T Ethernet pass-through on the same run
- 85.77% efficient at full load on 100 VAC, 86.21% on 230 VAC
- Compact 1.7" H x 4.3" W x 4.5" D quarter-rack enclosure
- Rack, furniture, or pole mount with the included ZipClip 200
- Convection cooled with no vents or fans to maintain
Where It Is Used
XTP System installations, classrooms, and boardrooms where a remote transmitter, receiver, or touchpanel needs local power but running a dedicated electrical outlet to that location is impractical.
Specifications at a Glance
- Power output: 48 VDC, 0.35 A, 16.8 W, 802.3af PoE compatible
- Connectors: 1 RJ-45 (pass-through input), 1 RJ-45 (pass-through + power output)
- Ethernet standard: 10/100/1000Base-T
- Mounting: rack, furniture, or pole (ZipClip 200 included)
- Warranty: 7 years parts and labor
Also referenced as Extron PI115, PI-115, part number 6012 3302.
Specifications
Specifications

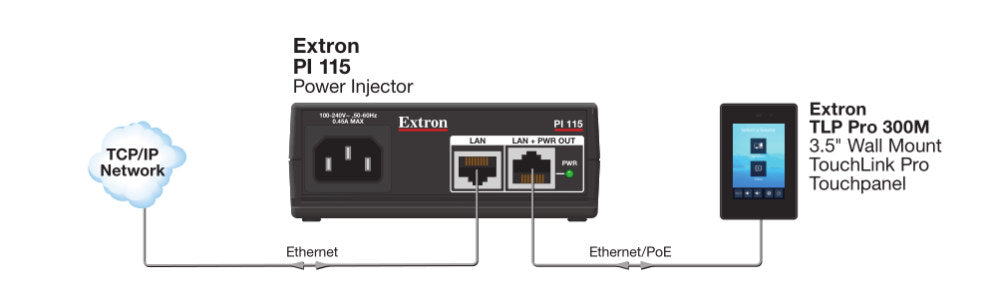

Diagram
