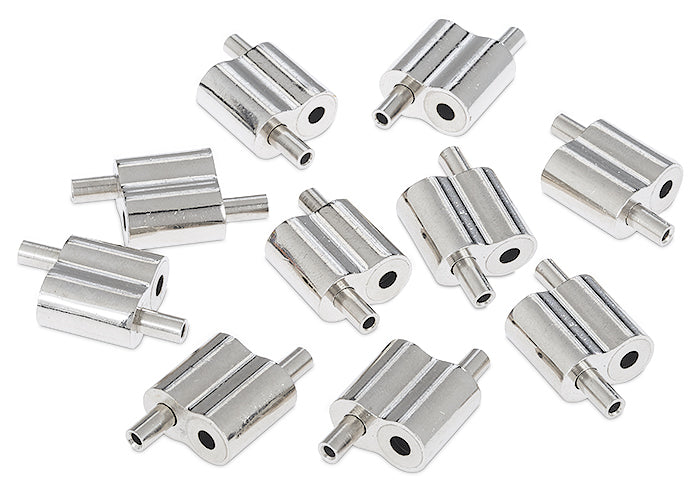

Extron PCC-2 CLK-10 (part number 101-032-01) — a ten-piece kit of nickel-plated cable locks for terminating Extron PendantConnect speaker cable.

PCC-2 PendantConnect cable carries steel support strands alongside the conductors, and those strands are what actually hold a pendant loudspeaker in the air. To use them the installer has to turn a length of strand back on itself and lock it, forming a swage loop. That is the job these locks do. Each one crimps the doubled strand so the loop holds without hardware bolted to the structure at every hanging point, which keeps the suspension neat and repeatable across a room full of pendants.

Key Capabilities

• Creates swage loops in the steel support cables inside PCC-2 PendantConnect speaker cable.
• Supplied as ten locks, sized for the PCC-2 18/500 bulk spool and PCC-2 18/30 pre-terminated cable.
• Also used to swage SMK A Speaker Aircraft Cable when hanging an SF 10C SUB in-ceiling subwoofer.
• Nickel plated, so corrosion is not a concern in ceiling voids or plenum spaces.
• Straightforward to fit, with no specialist bracketry required at each mounting point.

Where It Is Used

Anywhere Extron pendant loudspeakers are suspended: open-plan offices, atriums, gymnasia, retail floors, transport concourses and worship spaces. It is the standard companion part when SF 26PT or SF 28PT pendants are run from bulk PendantConnect cable rather than the pre-terminated assemblies.

Specifications at a Glance

• Kit quantity: 10 cable locks
• Finish: nickel plated for corrosion resistance
• Compatible cable: PCC-2 18/500, PCC-2 18/30, SMK A Speaker Aircraft Cable Kits
• Related speakers: SF 26PT, SF 28PT, SF 10C SUB

Also referenced as Extron PCC-2CLK-10, PCC-2-CLK-10, part number 10103201.
