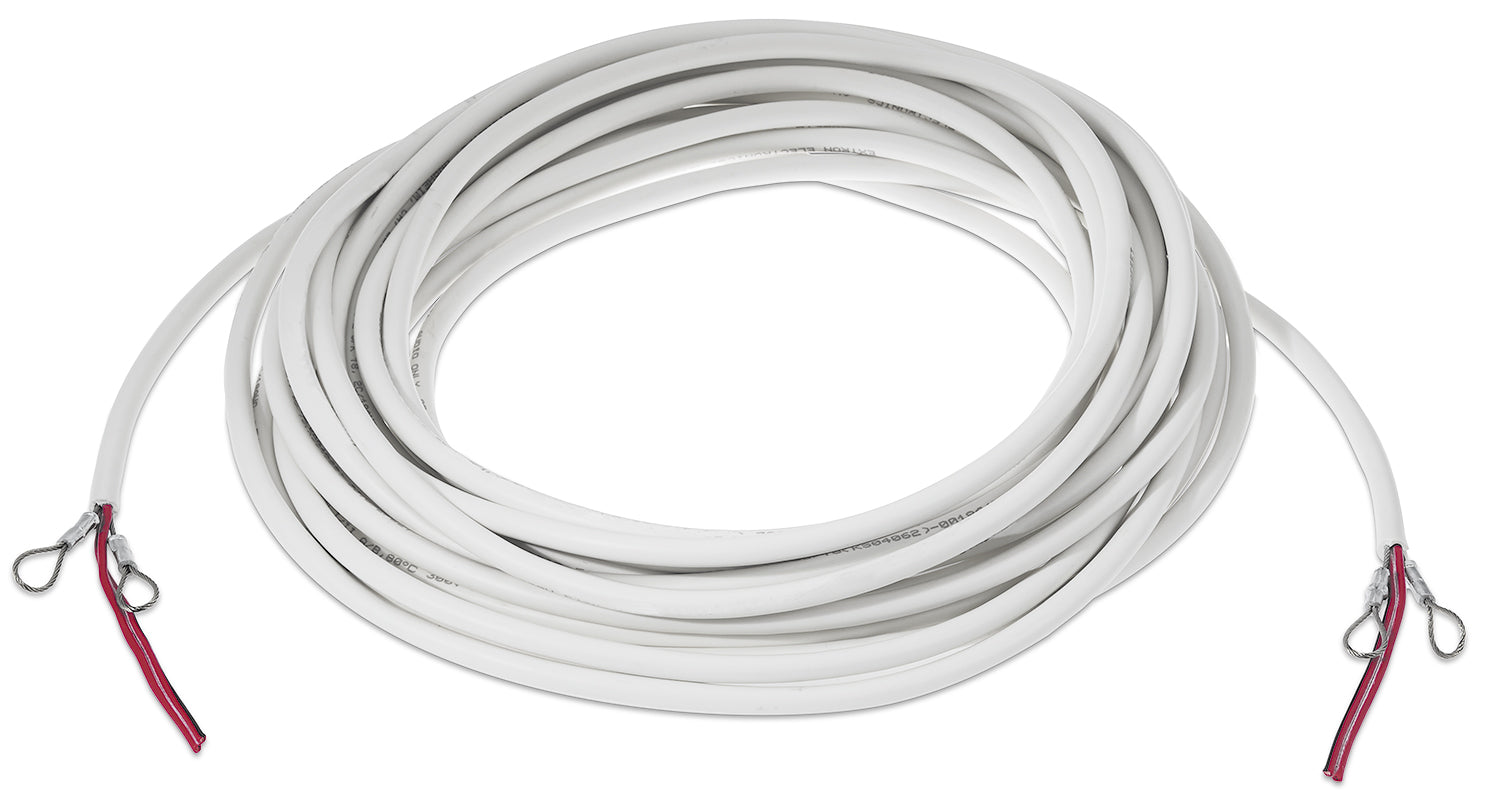

Extron PCC-2 18/30 (part number 26-731-30) — white 30 ft pre-cut and terminated PendantConnect cable for SF 26PT and SF 28PT SoundField pendants.

Everything about PCC-2 is sized for the bigger pendants. Where PCC-1 carries one steel wire rope, this construction carries two, both extruded under the same PVC outer jacket as the 18 AWG speaker pair. On site it behaves like one cable — a single plumb drop with nothing extra to hide — while meeting a 30.9 MPa minimum tensile rating. Part 26-731-30 is the white-jacket 30 ft (9 m) assembly, already cut and terminated when it reaches the job.

Key Capabilities

• Two galvanized steel support cables, 3/64 in, 7x7 stranding, integrated into the jacket.
• Minimum tensile strength of 30.9 MPa across the safety cable system.
• 18 AWG twisted pair, 16/30 stranding, conductors at 0.048 in (1.20 mm).
• Nominal core OD 0.079 in (2.0 mm); minimum bend radius 1.86 in.
• Factory-terminated 30 ft (9 m) length removes field assembly at height.
• Non-plenum PVC inner and outer jackets; NEC AWM, 80 °C, CPR compliant.

Where It Is Used

Specify the white jacket when SF 26PT or SF 28PT pendants hang beneath light ceilings, white decks or daylit atria — airport concourses, museums and galleries, hotel and convention pre-function space, contemporary worship rooms and open-plan campus buildings.

Specifications at a Glance

• Model / part: PCC-2 18/30, 26-731-30
• Length: 30 ft (9 m), pre-cut and terminated; jacket colour white
• Safety cables: 2, galvanized steel wire rope
• Conductor DCR: 6.2 ohms/1,000 ft (20 ohms/km)
• Compatible speakers: Extron SF 26PT and SF 28PT

Also referenced as Extron PCC-218/30, PCC-2-18-30, PCC21830, part number 2673130.
