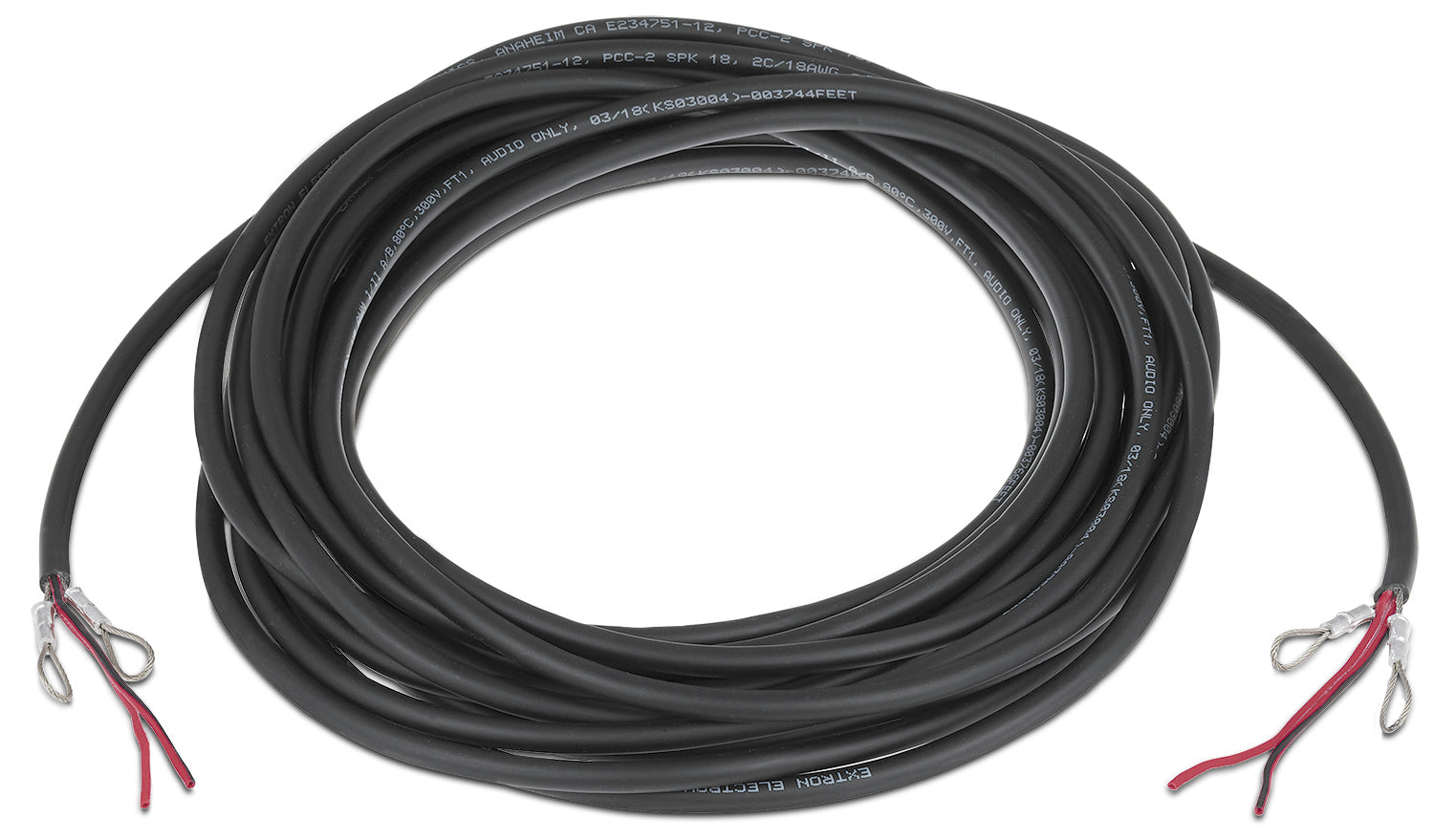

Extron PCC-2 18/30 (part number 26-730-30) - black 30 ft pre-cut and terminated PendantConnect cable for SF 26PT and SF 28PT pendant speakers.

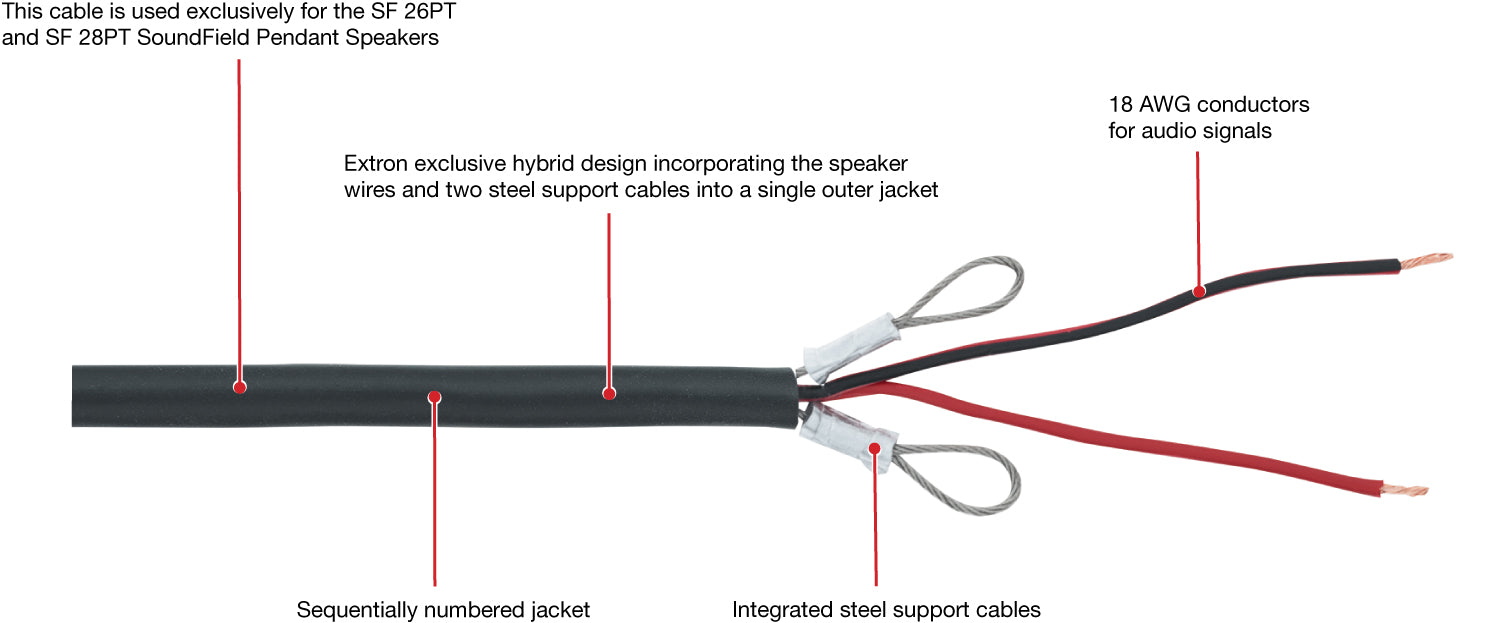

The larger SoundField pendants weigh more than an SF 3PT, so PCC-2 adds mechanical capacity rather than simply repeating the PCC-1 recipe. Two galvanized steel wire ropes run beside the 18 AWG audio pair inside a single PVC outer jacket, and the assembly carries a far higher tensile rating than the single-rope PCC-1. Part 26-730-30 ships as a finished 30 ft (9 m) assembly in black, cut and terminated at the factory so nobody is dressing hardware at the top of a lift.

Key Capabilities

• Two integrated steel support cables, 3/64 in with 7x7 stranding, sized for the heavier SF 26PT and SF 28PT pendants.
• Safety-cable tensile strength rated 30.9 MPa minimum - roughly triple the PCC-1 figure.
• One 18 AWG twisted pair, 16/30 stranded copper, red and black.
• Nominal conductor DC resistance 6.2 ohms per 1,000 ft (20 ohms/km).
• Minimum bend radius 1.86 in.
• Pre-cut and terminated at 30 ft (9 m); sequentially numbered non-plenum PVC jacket; NEC AWM, 80 °C, CPR compliant.

Where It Is Used

SF 26PT and SF 28PT pendants go into rooms with height - atria, gymnasiums, convention halls, transit terminals, worship auditoriums and big-box retail. Against black-painted deck or exposed structure, this jacket keeps the drop visually quiet while the twin support cables carry the load.

Specifications at a Glance

• Length: 30 ft (9 m), pre-cut and terminated; jacket colour black
• Conductors: 1 twisted pair, 18 AWG copper, 0.048 in (1.20 mm)
• Safety cables: 2 (galvanized steel wire rope, 3/64 in, 7x7)
• Minimum bend radius: 1.86 in
• Compatible speakers: Extron SF 26PT and SF 28PT SoundField pendants
