Extron PCC-1 18/500 PendantConnect Speaker Cable Spool
- • Extron PCC-1 18/500 black 500 ft pendant cable spool
- • 18 AWG pair with 1/32 in steel safety cable
- • 500 ft (152 m) spool, 1.7 in minimum bend radius
- • Sales, replacement and exchange
- • Part# 22-271-02 / 2227102
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

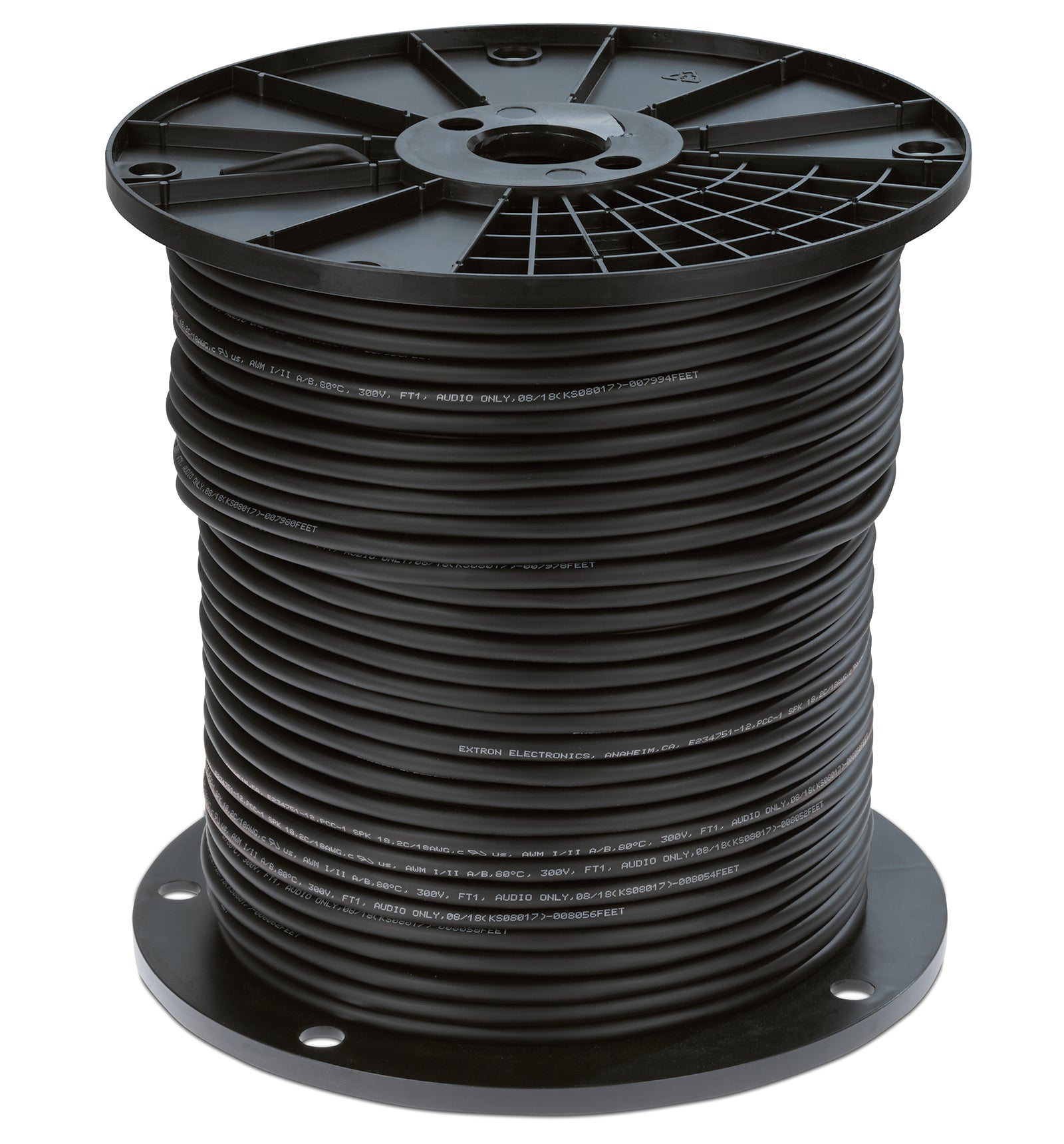

Extron PCC-1 18/500 (part number 22-271-02) - 500 ft of black PendantConnect speaker cable on a spool, for SF 3PT pendant drops cut to size.
One reel, every drop length. That is the argument for ordering PCC-1 in bulk rather than as fixed pre-cut runs, and 22-271-02 is the black-jacket version of that reel at 500 ft (152 m). The construction is the point: an 18 AWG twisted pair for the amplifier feed and a galvanized steel wire rope for the mechanical load, extruded together under a common PVC outer jacket. An installer measures against the numbers printed along the jacket, cuts once, and has both the speaker circuit and its support in hand.
Key Capabilities
- Black jacket, 500 ft (152 m) per spool, sequentially numbered for field measurement.
- 18 AWG copper pair, 16/30 stranding, conductor diameter 0.048 in (1.20 mm).
- One integrated 1/32 in galvanized steel safety cable with 1x19 stranding.
- Minimum safety-cable tensile strength 10.3 MPa.
- Nominal core outside diameter 0.079 in (2.0 mm); minimum bend radius 1.7 in.
- NEC AWM rated, 80 °C, CPR compliant, non-plenum PVC inner and outer jackets.
Where It Is Used
Dark, exposed ceilings are the natural home for this version - open-plenum offices and labs, black-decked auditoriums and studios, gymnasiums, industrial and hospitality interiors. Wherever SF 3PT SoundField pendants are hung in numbers and each drop needs its own measured length.
Specifications at a Glance
- Model / part: PCC-1 18/500, 22-271-02
- Standard length: 500 ft (152 m) spool, black
- Conductor DCR: 6.2 ohms/1,000 ft (20 ohms/km)
- Safety cables: 1, galvanized steel wire rope
- Compatible speaker: Extron SF 3PT SoundField pendant
Frequently asked questions about the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black
Does Ampronix sell the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black?
Yes. Ampronix is an authorized Extron distributor and sells the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black (22-271-02). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black?
Yes. Ampronix provides sales, replacement and exchange for the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black. Call Ampronix for a quote.
Is the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black listed under other names?
Yes. The Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black is also referenced as Extron PCC-118/500, PCC-1-18-500, PCC118500, part number 2227102.
What are the key features of the Extron PCC-1 18/500 PendantConnect Speaker Cable Spool Black?
Key points: Black jacket, 500 ft (152 m) per spool, sequentially numbered for field measurement; 18 AWG copper pair, 16/30 stranding, conductor diameter 0.048 in (1.20 mm); One integrated 1/32 in galvanized steel safety cable with 1x19 stranding; Minimum safety-cable tensile strength 10.3 MPa. Call Ampronix to confirm details for your application.
Also referenced as Extron PCC-118/500, PCC-1-18-500, PCC118500, part number 2227102.
