Extron PCC-1 18/20 (part number 26-722-20) - the black-jacket, factory-cut 20 ft PendantConnect run for SF 3PT SoundField pendant speakers.

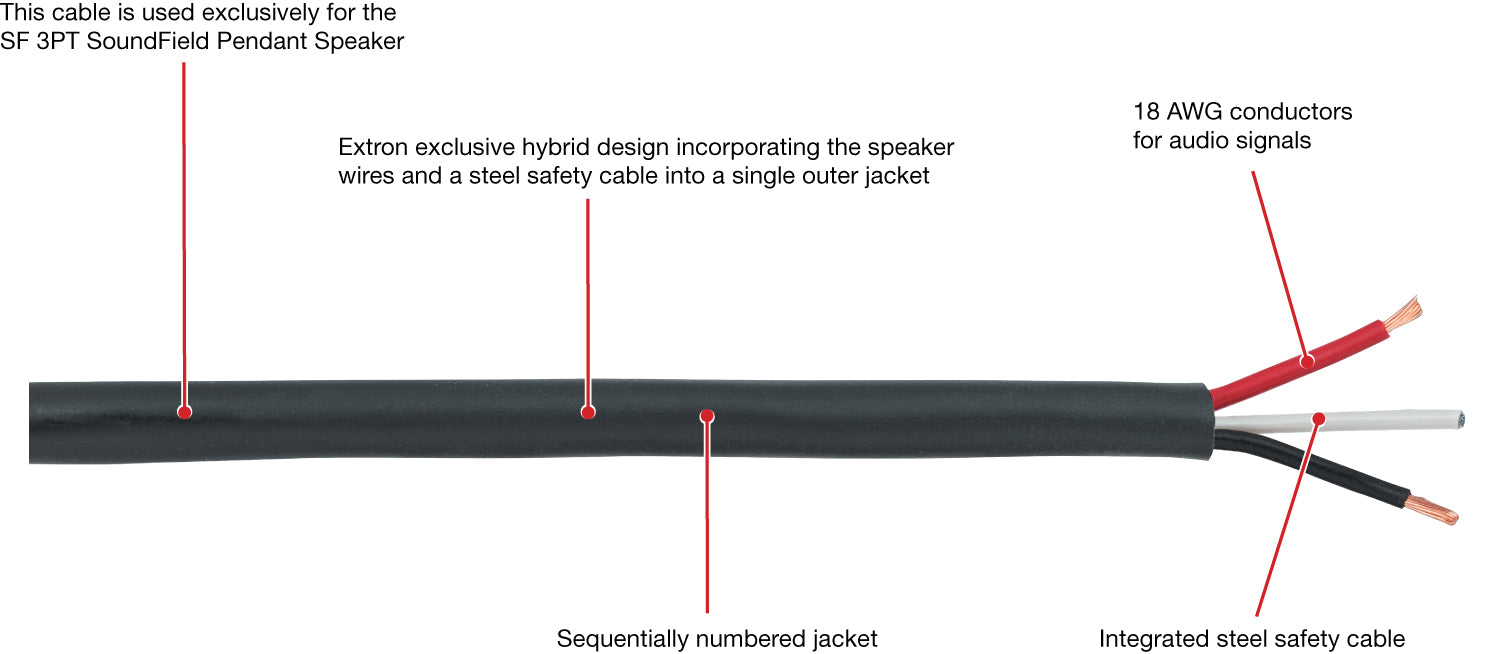

Extron's PendantConnect concept is straightforward once you see it in place: instead of dropping a speaker cable alongside an aircraft cable and trying to make the pair look deliberate, one jacket carries both. The 18 AWG pair handles the amplifier feed, and a galvanized steel wire rope inside the same PVC jacket carries the mechanical load, so the speaker sits plumb under a single visible line. Part 26-722-20 is that cable in black, arriving pre-cut at 20 ft (6 m) rather than on a spool.

Key Capabilities

• Two 18 AWG copper conductors in one twisted pair, 16/30 stranding, red and black.
• One integrated galvanized steel safety cable, 1/32 in, 1x19 stranding, 0.032 in (0.80 mm).
• Safety-cable tensile strength rated at 10.3 MPa minimum.
• Nominal core OD of 0.079 in (2.0 mm) keeps the drop visually slim.
• Tightest recommended bend is 1.7 in.
• Non-plenum PVC inner and outer jackets; NEC AWM, 80 °C, CPR compliant; jacket printed with sequential numbering.

Where It Is Used

Black is the default choice under exposed structure - black-painted decks in lecture halls and auditoriums, open-plenum offices, gymnasiums, breweries and restaurants, house-of-worship platforms. When the ceiling above an SF 3PT is dark, this jacket disappears into it and only the speaker reads from the floor.

Specifications at a Glance

• Model / part: PCC-1 18/20, 26-722-20
• Length: 20 ft (6 m), pre-cut; jacket colour black
• Conductor DCR: 6.2 ohms/1,000 ft (20 ohms/km)
• Safety cables: 1, galvanized steel wire rope
• Compatible speaker: Extron SF 3PT SoundField pendant
