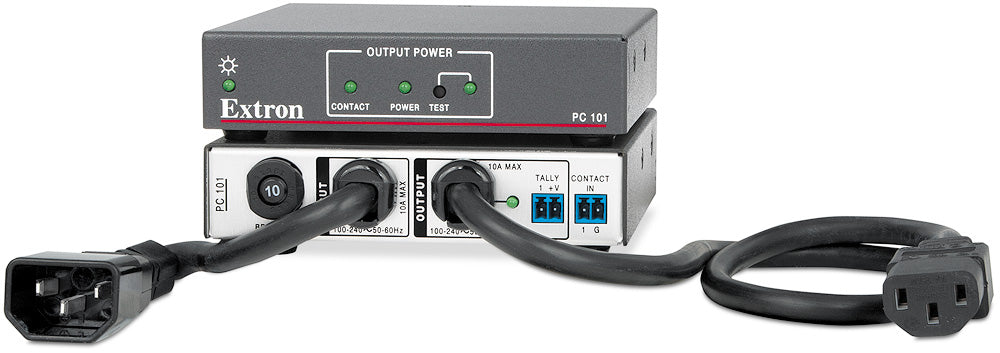

Extron PC 101 (part number 60-1378-01) — an in-line AC power controller that switches a single 10 A IEC outlet from a contact closure and reports state on a tally output.

Some devices simply need their mains supply cut when a room shuts down, and running a full networked power distribution unit for one load is overkill. The PC 101 sits between the wall and the device: a male IEC lead on the input side, a female IEC lead on the output side, and a two-pole captive screw port that switches the outlet when its contact pin is pulled to ground. A second captive screw port provides a +5 V tally that follows the AC output, so the control system can read back whether the load is actually energised.

Key Capabilities

• Handles up to 10 A across a wide 100-240 VAC, 50-60 Hz input range for worldwide deployment.
• Contact closure input on a 2-pole 3.5 mm captive screw, with a non-selectable internal pullup to +5 VDC.
• Tally output rated +5 V at 40 mA max, active whenever power is present on the AC output.
• Draws only 1.9 watts with no load attached, dissipating 2.9 BTU/hr.
• Quarter-rack metal enclosure just 1.0 in high, mountable on a 1U shelf or under a desk.

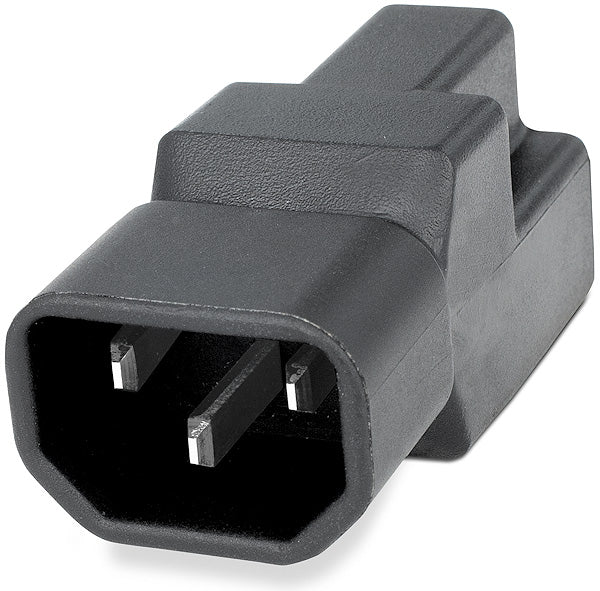

• Ships with a male IEC to female Edison adapter for North American receptacles.

Where It Is Used

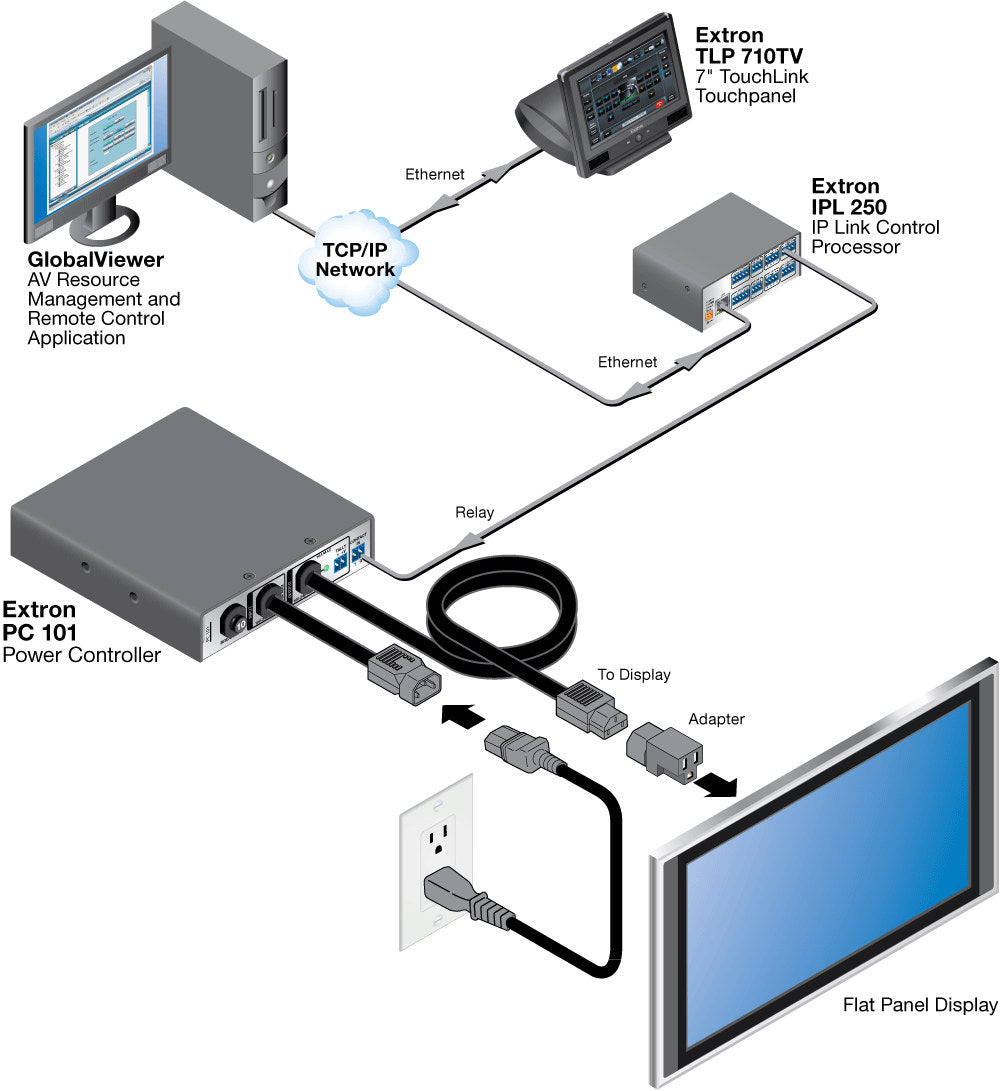

Lecterns and podiums, classroom projector feeds, boardroom credenzas, digital signage players and control-room accessory loads all suit a single-outlet switch of this kind. The quarter-rack footprint and short IEC pigtails let it hide behind the device it powers rather than occupying a rack bay.

Specifications at a Glance

• AC: 100-240 VAC, 50-60 Hz, 10 A maximum load
• Control: 1 contact closure input, 1 tally output, both 3.5 mm 2-pole captive screw
• Enclosure: metal, 1.0 in H x 4.3 in W x 4.0 in D (2.5 x 10.9 x 10.2 cm), quarter rack wide
• Weight: 0.8 lbs (0.4 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron PC101, PC-101, part number 60137801.
