Extron Onsite Commissioning – XTP Systems 03-026-01

Details

Part number 03-026-01

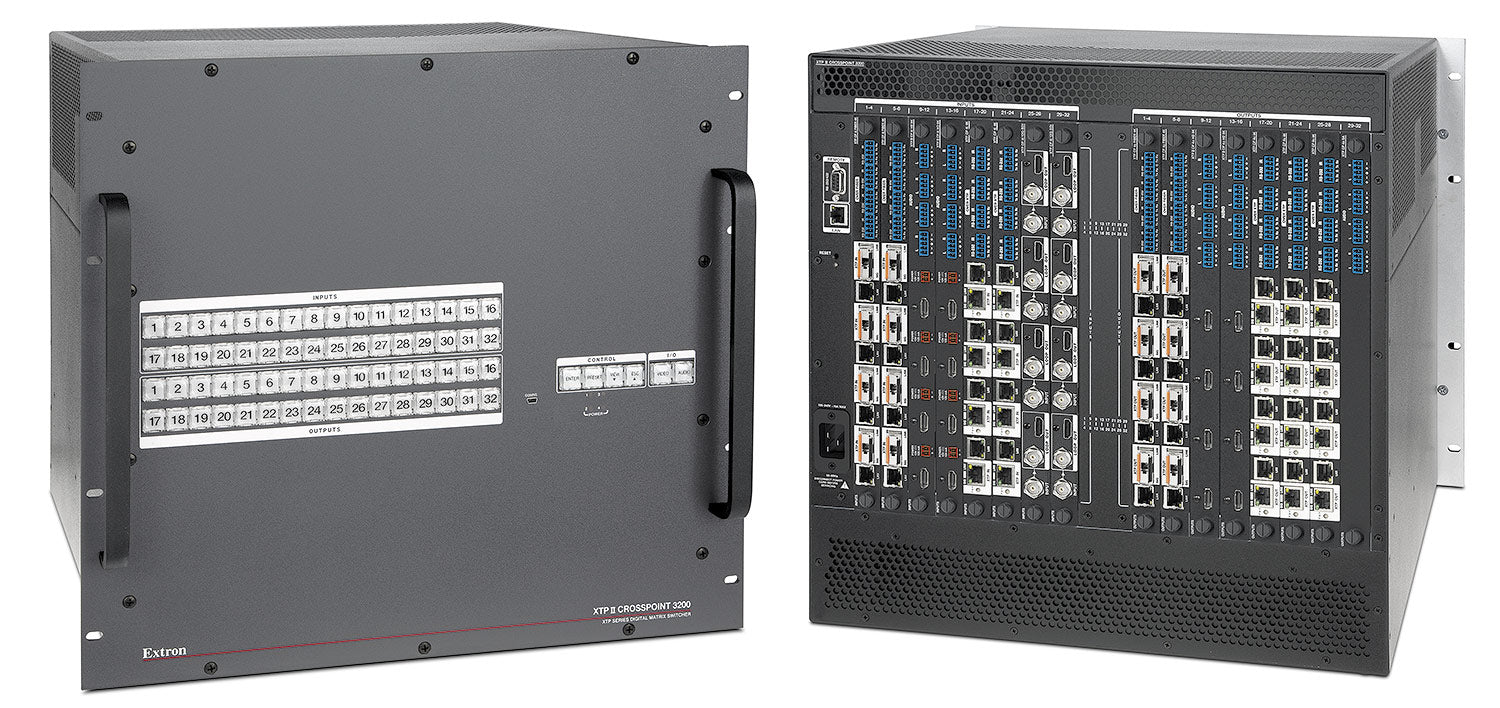

03-026-01 supplies the base configuration for onsite commissioning of XTP systems inside the XTP II CrossPoint 3200 modular matrix switcher. Integrators choose this frame to install selected boards that route video and audio signals with bidirectional control and Ethernet data. The internal backplane handles 50 Gbps per port to support 8K formats. This setup solves the requirement for an assembled chassis that can be commissioned directly at the job site while supplying remote power to twisted pair transmitters and receivers and allowing audio breakaway.

The chassis serves conference rooms, auditoriums, and command and control centers. Before purchase note the 10U metal enclosure size of 17.5 in H x 17.0 in W x 17.5 in D with right-to-left fan cooling. Power consumption measures 116 W at 115 VAC 60 Hz with no boards installed and rises to 170 W once four boards are present. Storage temperature covers -40 to +158 °F at 10% to 90% noncondensing humidity while operating range stays +32 to +122 °F. RS-232 insertion is available from the Ethernet control port.

Specifications

Part Number: 03-026-01

Manufacturer: Extron

Condition: New

115 VAC, 60 Hz: 116 watts (no load) 170 watts (4 load boards installed)

240 VAC, 50 Hz: 102 watts (no load) 167 watts (4 load boards installed)

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Backplane throughput: 50 Gbps per input and output

Baud rate and protocol: 9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control

Chroma sampling: 4:4:4, 4:2:2, or 4:2:0

Color bit depth: 8, 10, 12 or 16 bits per color

Cooling: Fan, right to left (as viewed from front panel)

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI, KC

Enclosure dimensions: 17.5" H x 17.0" W x 17.5" D (10U high, full rack wide)(44.5 cm H x 43.2 cm W x 44.5 cm D)(Depth excludes connectors. Width excludes rack ears.)

Enclosure type: Metal

Environmental: Complies with the appropriate requirements of RoHS, WEEE.

Ethernet control port: 1 female RJ-45

Ethernet data rate (for network communication): 10/100Base-T, half/full duplex with autodetect

Ethernet default settings: Link speed and duplex level = autodetectedIP address = 192.168.254.254Subnet mask = 255.255.0.0Default gateway = 0.0.0.0DHCP = off

Ethernet protocol: ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet

Everlast power supply warranty: 7 years parts and labor

Frame rate: 24, 25, 30, 50, 60, 120, 144, or 240 fps

Input audio signal format: PCM up to 8 ch, Dolby Atmos®, Dolby® TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio™, DTS-HD High Res, DTS 96/24, DTS-ES®, DTS, analog stereo

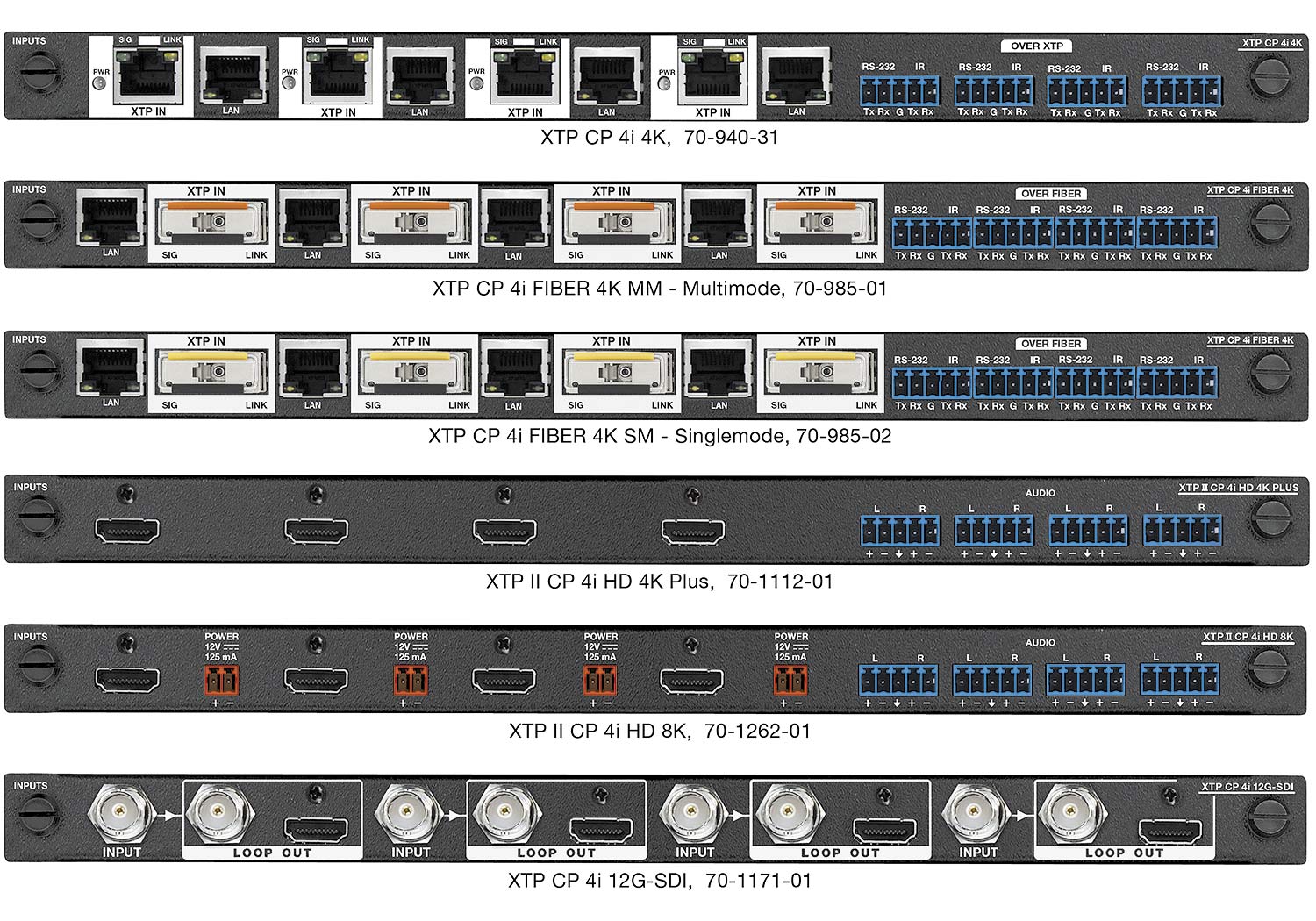

Input video signal format: HDMI, DVI, 3G-SDI, 12G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber

Maximum throughput: 50 Gbps

Number of input slots: 8

Number of output slots: 8

Output audio signal format: PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo

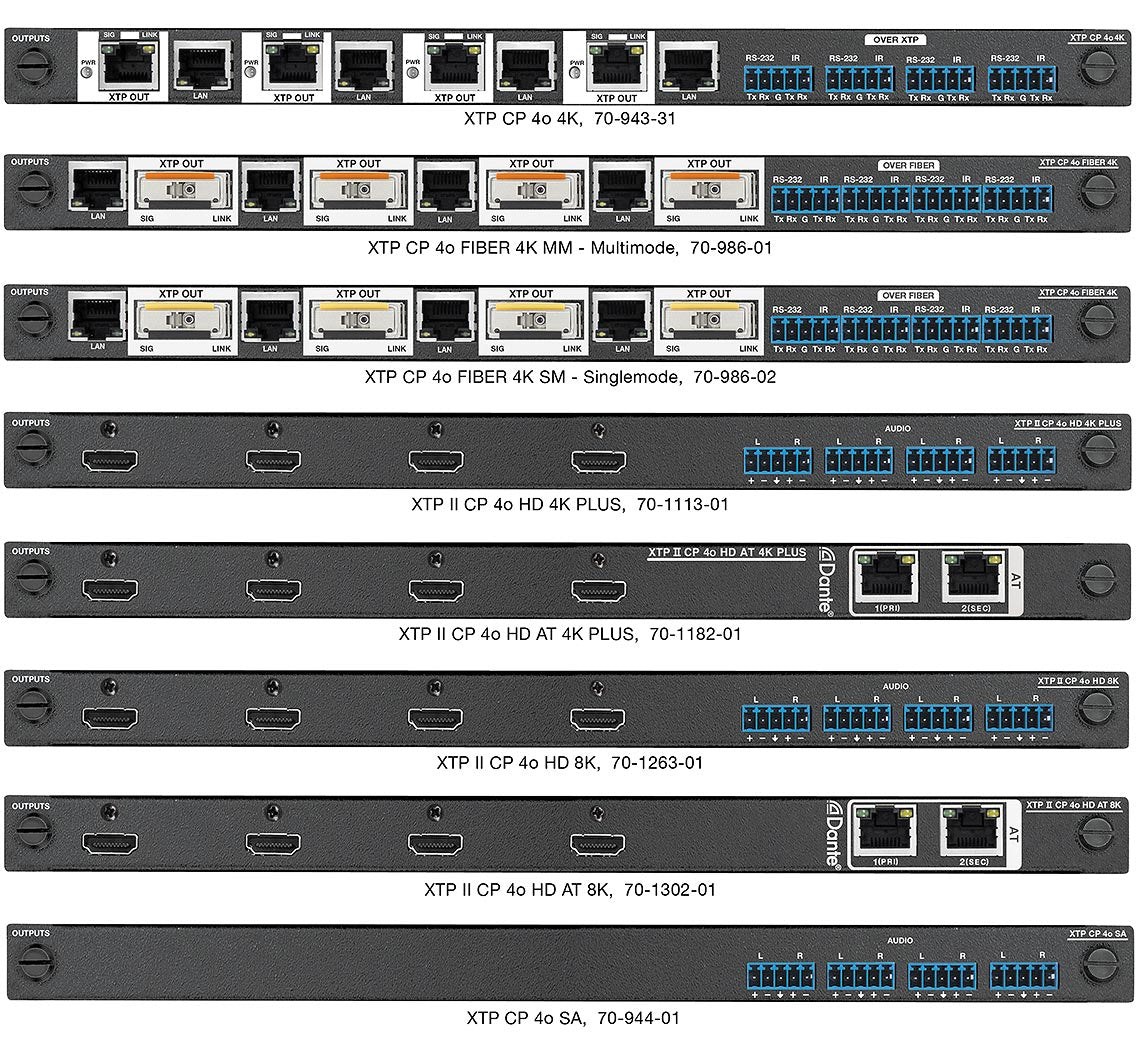

Output video signal format: HDMI, DVI, XTP twisted pair, XTP fiber

Product warranty: 3 years parts and labor

Product weight with boards installed: 64.0 lbs (29.0 kg)

Program control: Extron XTP System Configuration Software for Windows®Extron Simple Instruction Set (SIS™)Microsoft® Internet Explorer® ver. 6 or higher, Telnet

RS-232: 2 = Tx, 3 = Rx, 5 = GND

RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+

Rack mount: Yes

Remote power capability: Supports up to 24 XTP twisted pair endpoints

Safety: CE, c-UL, UL

Serial host control port: 1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector

Switcher: 32x32 matrix

USB control port: 1 front panel female mini USB B

USB standards: USB 2.0, low speed

Vibration: ISTA 1A in carton (International Safe Transit Association)

Web server: Up to 200 simultaneous sessions7.0 MB nonvolatile user memory

Diagram

Resources

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Everlast Power Supplies

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Extron Government Solutions

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP II Systems (xtp_II_systems_revG6.pdf)

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - XTP II CrossPointシリーズ

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Alimentatori Everlast

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Everlast 电源

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Everlast-Netzteile

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Extron-Lösungen für Behörden

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Fuentes de alimentación Everlast

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Solutions Extron pour structures gouvernementales

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Soluzioni Extron per ambienti governativi

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | Sources d'alimentation Everlast

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP II Systems (xtp_II_systems_revG6_FR.pdf)

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - Serie XTP II CrossPoint (XTP-Systems-II_BR_A4_SP_RevG4.pdf)

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - Serie XTP II CrossPoint (xtp_II_systems_revG6_IT.pdf)

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - XTP II CrossPoint 시리즈

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - XTP II CrossPoint 系列

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - XTP II CrossPoint-Serie

Brochure | Onsite Commissioning – XTP Systems 03-026-01 | XTP Systems - Серия XTP II CrossPoint

Manual | Onsite Commissioning – XTP Systems 03-026-01 | Cleaning Instruction Card

Manual | Onsite Commissioning – XTP Systems 03-026-01 | XTP II CrossPoint Series Setup Guide

Manual | Onsite Commissioning – XTP Systems 03-026-01 | XTP II CrossPoint Series User Guide

Specifications | Onsite Commissioning – XTP Systems 03-026-01 | XTP II CrossPoint® 3200 Enclosure

Panel Drawing | Onsite Commissioning – XTP Systems 03-026-01 | XTP II CrossPoint 3200

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron Onsite Commissioning – XTP Systems 03-026-01

Name: Extron Onsite Commissioning – XTP Systems 03-026-01
Brand: Extron
SKU: EXTRON-ONSITECOMMISSIONINGXTPSYSTEMS-3002601
Availability: InStock

Manufacturer: Extron

Type: XTP Systems

Extron Onsite Commissioning XTP Systems 03-026-01

• Extron professional onsite commissioning service for XTP systems
• An Extron-certified technician attends your site to commission the XTP installation
• Covers system configuration, testing, and verification of XTP equipment
• Ensures the XTP system meets Extron's standards before handover
• Contact Ampronix for scheduling and availability
